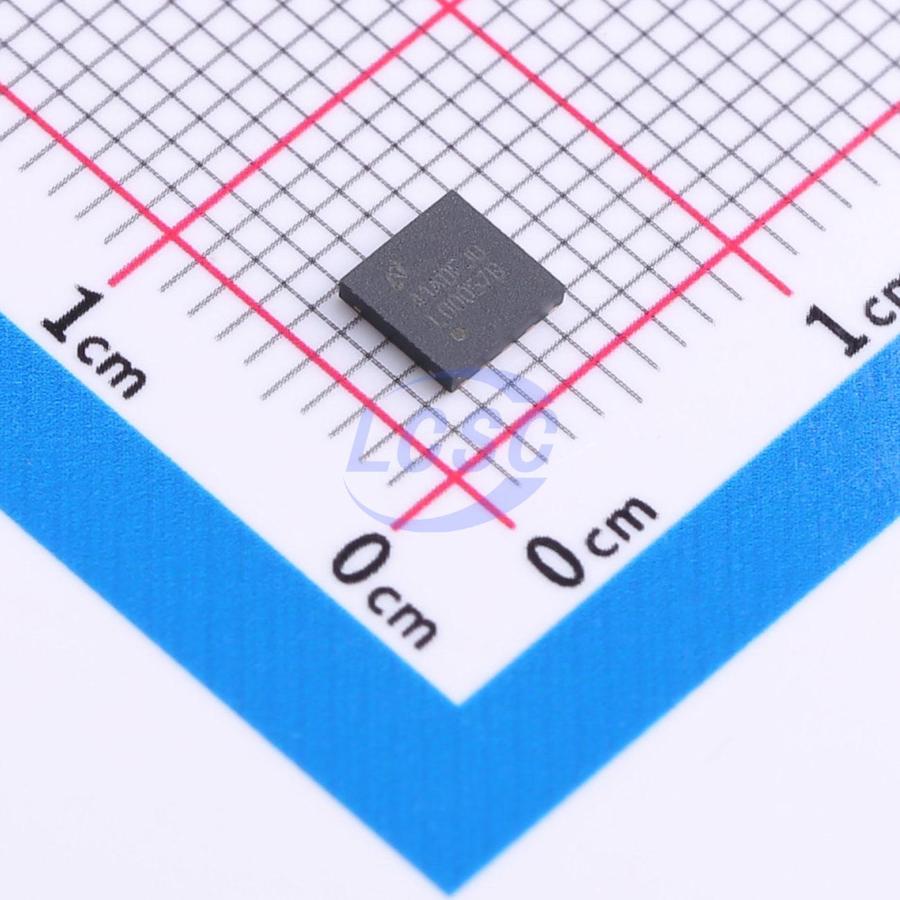

LM5010SDX/NOPB
1MHz Step-down type Adjustable 1A WSON-10-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS
WSON-10-EP(4x4)ROHS3 CompliantActive
High-Voltage 1-A Step-Down Switching Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM5010SDX/NOPB
- Store part #
- C2071745
- Package / case
- WSON-10-EP(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,983 in stock
#C2071745
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.40 | ₹115.40 |
| 10+ | ₹103.66 | ₹1,036.60 |
| 30+ | ₹97.34 | ₹2,920.20 |
| 100+ | ₹89.94 | ₹8,994.00 |
| 500+ | ₹86.87 | ₹43,435.00 |
| 1,000+ | ₹85.24 | ₹85,240.00 |
1 × ₹115.40
₹115.40
excl. GST
₹136.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
LM5010SDX/NOPB
₹115.40 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Overcurrent Protection;Built-in LDO regulator;Built-in current sense resistor
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~75V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 850uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The LM5010 step-down switching regulator features all the functions needed to implement a low-cost, efficient, buck bias regulator capable of supplying in excess of 1-A load current. This high-voltage regulator contains an N-Channel Buck Switch, and is available in thermally enhanced 10-pin WSON and 14-pin HTSSOP packages. The hysteretic regulation scheme requires no loop compensation, resulting in fast load transient response, and simplifies circuit implementation. The operating frequency remains constant with line and load variations due to the inverse relationship between the input voltage and the ON-time. The valley current limit detection is set at 1.25 A. Additional features include: VCC undervoltage lockout, thermal shutdown, gate drive undervoltage lockout, and maximum duty cycle limiter.
Applications
- High Efficiency Point-of-Load (POL) Regulator
- Non-Isolated Telecommunications Buck Regulator
- Secondary High Voltage Post Regulator
- Automotive Systems
Key features
- Input Voltage Range: 8 V to 75 V
- Valley Current Limit At 1.25 A
- Switching Frequency Can Exceed 1 MHz
- Integrated N-Channel Buck Switch
- Integrated Start-Up Regulator
- No Loop Compensation Required
- Ultra-Fast Transient Response
- Operating Frequency Remains Constant With Load and Line Variations
- Maximum Duty Cycle Limited During Start-Up
- Adjustable Output Voltage
- Precision 2.5-V Feedback Reference
- Thermal Shutdown
- Exposed Thermal Pad for Improved Heat Dissipation
