LM5013DDAR

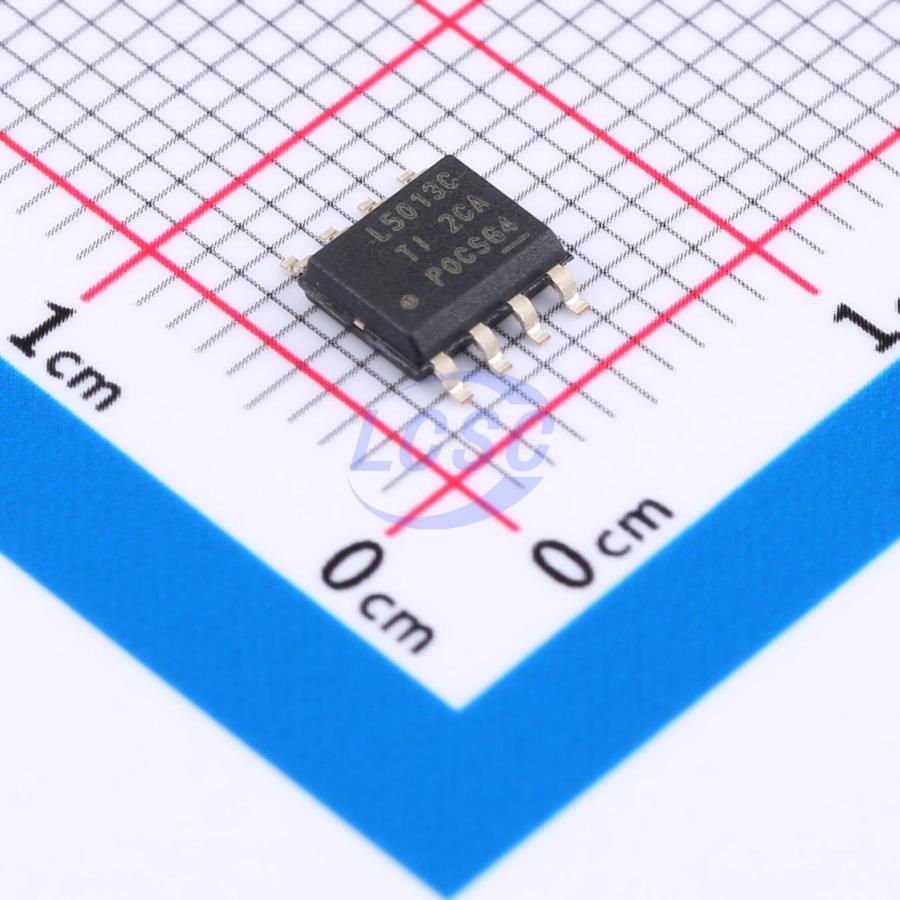

The LM5013 non-synchronous buck converter is designed to regulate over a wide input voltage range, minimizing the need for external surge suppression components. A minimum controllable on time of 50 ns facilitates large step-down conversion ratios, enabling the direct step-down from a 48-V nominal input to low-voltage rails for reduced system complexity and solution cost. The LM5013 operates during input voltage dips as low as 6 V, at nearly 100% duty cycle if needed, making it an excellent choice for highperformance industrial applications. With an integrated high-side power MOSFET, the LM5013 delivers up to 3.5 A of output current. A constant on-time (COT) control architecture provides nearly constant switching frequency with excellent load and line transient response. Additional features of the LM5013 include ultra-low IQ and a innovative peak overcurrent protection, integrated VCC bias supply and bootstrap diode, precision enable and input UVLO, and thermal shutdown protection with automatic recovery. An open-drain PGOOD indicator provides sequencing, fault reporting, and output voltage monitoring. The LM5013 is available in a 8-pin SO PowerPAD integrated circuit package. The device 1.27-mm pin pitch provides adequate spacing for high-voltage applications.

Applications

• Hybrid, electric and powertrain systems
• Inverter and motor control
• Industrial transport

Key features

• Designed for reliable and rugged applications
• Wide input voltage range of 6 V to 100 V
• -40°C to +125°C junction temperature range
• Fixed 3.5-ms internal soft-start timer
• Peak current-limit protection
• Input UVLO and thermal shutdown protection
• Functional Safety-Capable Documentation available to aid functional safety system design
• Optimized for ultra-low EMI requirements – Meets CISPR 25 class 5 standard
• Suited for scalable Industrial power supplies
• Pin-to-pin compatible with the LM5163-Q1 and LM5164-Q1 (100 V, 0.5 A or 1 A), and LM5013-Q1 (100 V, 3.5 A)
• 50-ns low minimum on times and off times
• 10-μA no-load sleep current
• 3.1-μA shutdown quiescent current
• COT mode control architecture
• Integrated 100-V 0.25-Ω high-side power MOSFET
• 1.2-V internal voltage reference
• No loop compensation components
• Internal VCC bias regulator and boot diode
• Create a custom regulator design using WEBENCH Power Designer
