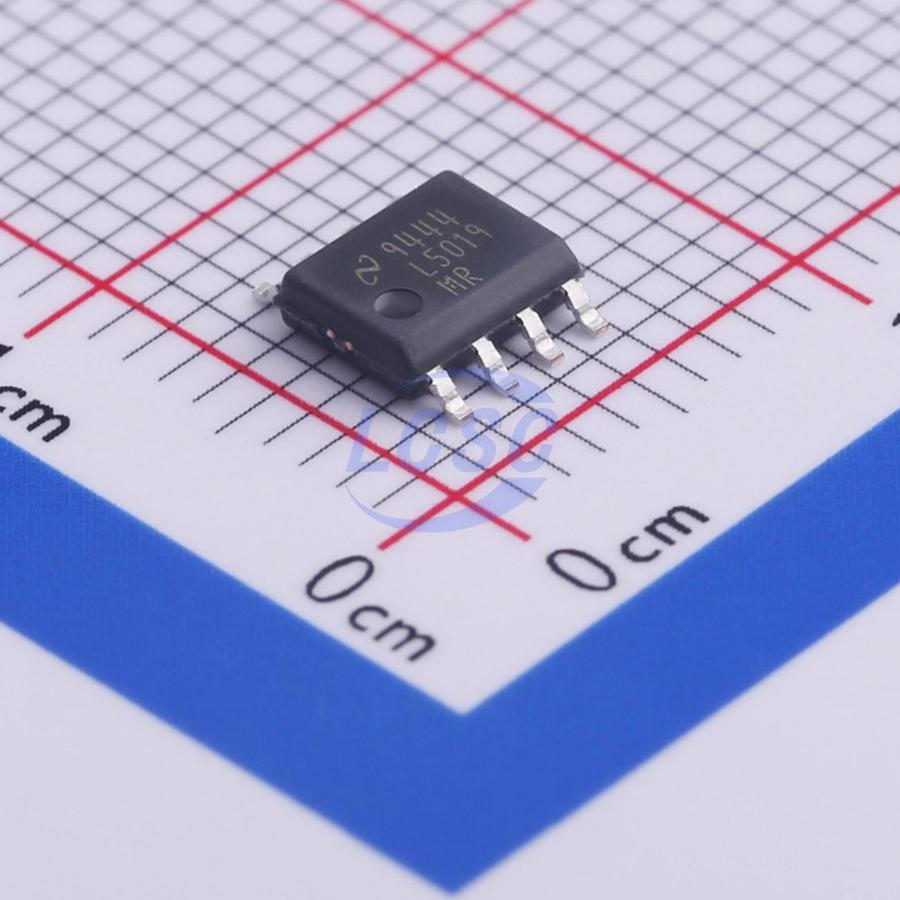

LM5019MRX/NOPB

The LM5019 is a 100-V, 100-mA synchronous stepdown regulator with integrated high-side and low-side MOSFETs. The constant-on-time (COT) control scheme employed in the LM5019 requires no loop compensation, provides excellent transient response, and enables very low step-down ratios. The on-time varies inversely with the input voltage resulting in nearly constant frequency over the input voltage range. A high-voltage startup regulator provides bias power for internal operation of the IC and for integrated gate drivers. A peak current limit circuit protects against overload conditions. The undervoltage lockout (UVLO) circuit allows the input undervoltage threshold and hysteresis to be independently programmed. Other protection features include thermal shutdown and bias supply undervoltage lockout. The LM5019 device is available in WSON-8 and SO PowerPAD-8 plastic packages.

Applications

• Smart Power Meters
• Telecommunication Systems
• Automotive Electronics
• Isolated Bias Supply

Key features

• Wide 7.5-V to 100-V Input Range
• Integrated 100-mA High-Side and Low-Side Switches
• No Schottky Required
• Constant On-Time Control
• No Loop Compensation Required
• Ultra-Fast Transient Response
• Nearly Constant Operating Frequency
• Intelligent Peak Current Limit
• Adjustable Output Voltage From 1.225 V
• Precision 2% Feedback Reference
• Frequency Adjustable to 1 MHz
• Adjustable Undervoltage Lockout
• Remote Shutdown
• Thermal Shutdown
• Packages: 8-Pin WSON, 8-Pin SO PowerPAD
