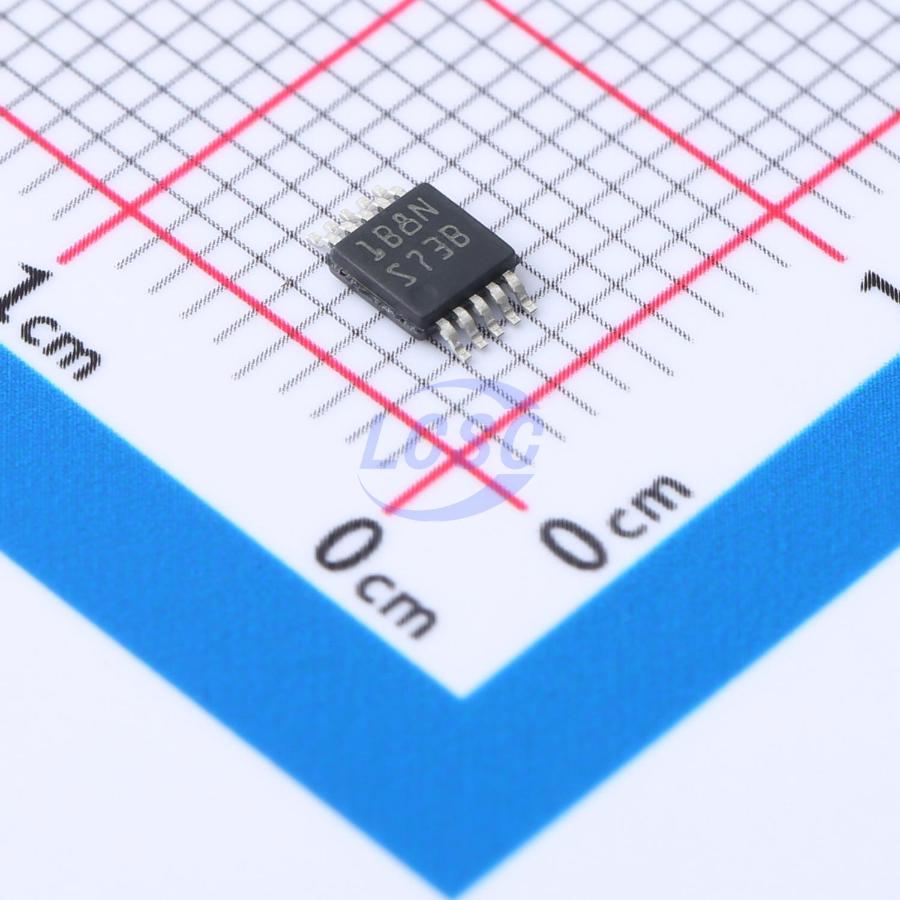

LM5030MMX/NOPB
1.5A VSSOP-10-0.5mm DC DC Switching Controllers RoHS
- Manufacturer
- TI
- Manufacturer part #
- LM5030MMX/NOPB
- Store part #
- C2657915
- Package / case
- VSSOP-10-0.5mm
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,484 in stock
#C2657915
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹339.05 | ₹339.05 |
| 10+ | ₹288.96 | ₹2,889.60 |
| 30+ | ₹257.64 | ₹7,729.20 |
| 100+ | ₹225.47 | ₹22,547.00 |
| 500+ | ₹210.99 | ₹1,05,495.00 |
| 1,000+ | ₹204.73 | ₹2,04,730.00 |
1 × ₹339.05
₹339.05
excl. GST
₹400.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
LM5030MMX/NOPB
₹339.05 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Output Current
- 1.5A
- Features
- Soft-start;Over Current Protection;Overtemperature protection (OTP);Under Voltage Protection
- Topology
- Push-Pull;Half-Bridge;Full-Bridge
- Duty Cycle(Max)
- 49%
- Frequency - Switching
- 200kHz;600kHz
- Feedback System
- Secondary-Side Feedback
- Operating Voltage
- 14V~90V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.132 g
Overview
The LM5030 high-voltage PWM controller contains all of the features needed to implement push-pull and bridge topologies, using current-mode control in a small 10-pin package. This device provides two alternating gate driver outputs. The LM5030 includes a high-voltage start-up regulator that operates over a wide input range of 14 V to 100 V. Additional features include: error amplifier, precision reference, dual mode current limit, slope compensation, softstart, sync capability, and thermal shutdown. This high speed IC has total propagation delays less than 100 ns and a 1-MHz capable single-resistor adjustable oscillator.
Applications
- Telecommunication Power Converters
- Industrial Power Converters
- +42-V Automotive Systems
Key features
- Internal High-Voltage Start-Up Regulator
- Single Resistor Oscillator Setting
- Synchronizable Error Amplifier
- Precision Reference
- Adjustable Softstart
- Dual Mode Overcurrent Protection
- Slope Compensation
- Direct Optocoupler Interface
- 1.5-A Peak Gate Drivers
- Thermal Shutdown
