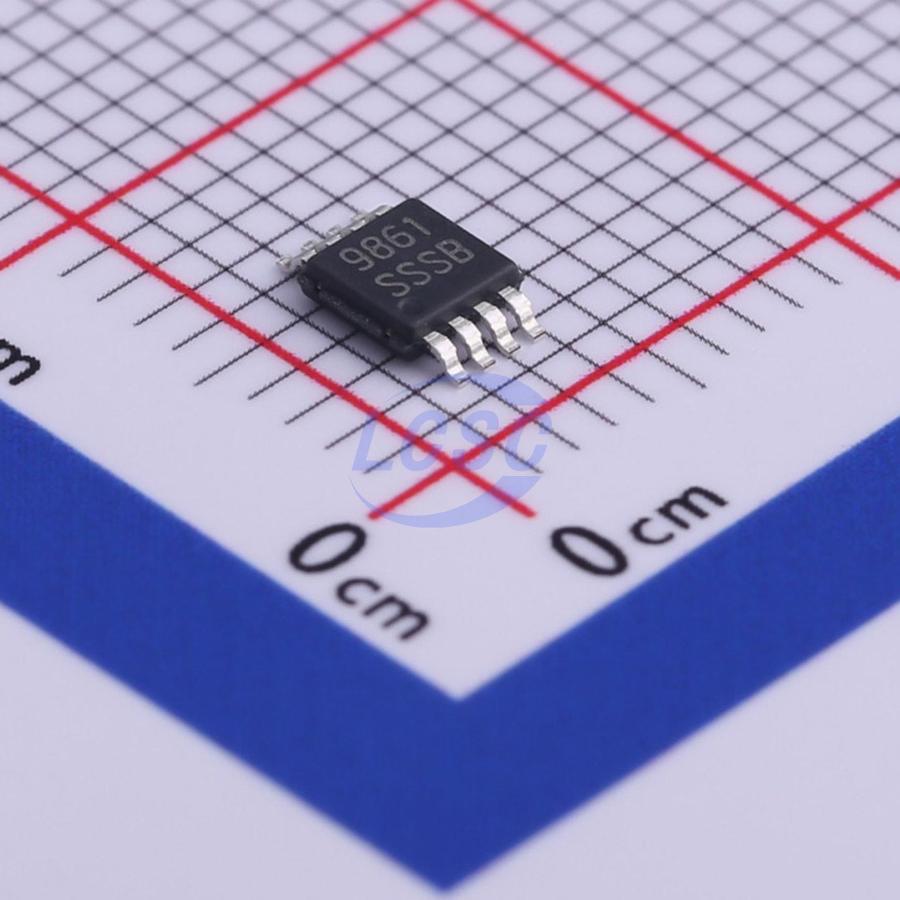

LM5085MYX/NOPB
1 Adjustable Step-down type MSOP-8-EP DC DC Switching Controllers RoHS
High Efficiency PFET Buck Controller
- Manufacturer
- TI
- Manufacturer part #
- LM5085MYX/NOPB
- Store part #
- C477940
- Package / case
- MSOP-8-EP
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,874 in stock
#C477940
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹410.21 | ₹410.21 |
| 10+ | ₹348.00 | ₹3,480.00 |
| 30+ | ₹309.07 | ₹9,272.10 |
| 100+ | ₹240.56 | ₹24,056.00 |
| 500+ | ₹222.73 | ₹1,11,365.00 |
| 1,000+ | ₹214.89 | ₹2,14,890.00 |
1 × ₹410.21
₹410.21
excl. GST
₹484.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
LM5085MYX/NOPB
₹410.21 for 1 + GST
Specifications
- Synchronous Rectifier
- No
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Built-in LDO regulator;Light load efficient mode
- Number of Channels
- 1
- Topology
- Buck
- Operating Voltage
- 4.5V~75V
- Switch tube (built-in/external)
- External
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz
- Output Type
- Adjustable
- Function
- Step-down type
- Quiescent Current
- 1.3mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.059 g
Overview
The LM5085 is a high efficiency PFET switching regulator controller that can be used to quickly and easily develop a small, efficient buck regulator for a wide range of applications. This high voltage controller contains a PFET gate driver and a high voltage bias regulator which operates over a wide 4.5-V to 75-V input range. The constant on-time regulation principle requires no loop compensation, simplifies circuit implementation, and results in ultrafast load transient response. The operating frequency remains nearly constant with line and load variations due to the inverse relationship between the input voltage and the on-time. The PFET architecture allows 100% duty cycle operation for a low dropout voltage. Either the RDS(ON) of the PFET or an external sense resistor can be used to sense current for overcurrent detection.
Applications
- Automotive Infotainment
- Battery/Super Capacitor Chargers
- LED Drivers
Key features
- LM5085-Q1 is an Automotive Grade Product that is AEC-Q100 Grade 1 Qualified (-40°C to 125°C Operating Junction Temperature)
- Wide 4.5-V to 75-V Input Voltage Range
- Adjustable Current Limit Using RDS(ON) or a Current Sense Resistor
- Programmable Switching Frequency to 1MHz
- No Loop Compensation Required
- Ultra-Fast Transient Response
- Nearly Constant Operating Frequency with Line and Load Variations
- Adjustable Output Voltage from 1.25 V
- Precision ±2% Feedback Reference
- Capable of 100% Duty Cycle Operation
- Internal Soft-start Timer
- Integrated High Voltage Bias Regulator
- Thermal Shutdown
- Package: HVSSOP-8, VSSOP-8, WSON-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM5085MY/NOPB#C79823TI · MSOP-8-EP | TI | MSOP-8-EP | 1,024 | ₹353.74 · 1,024 in stock | View |
