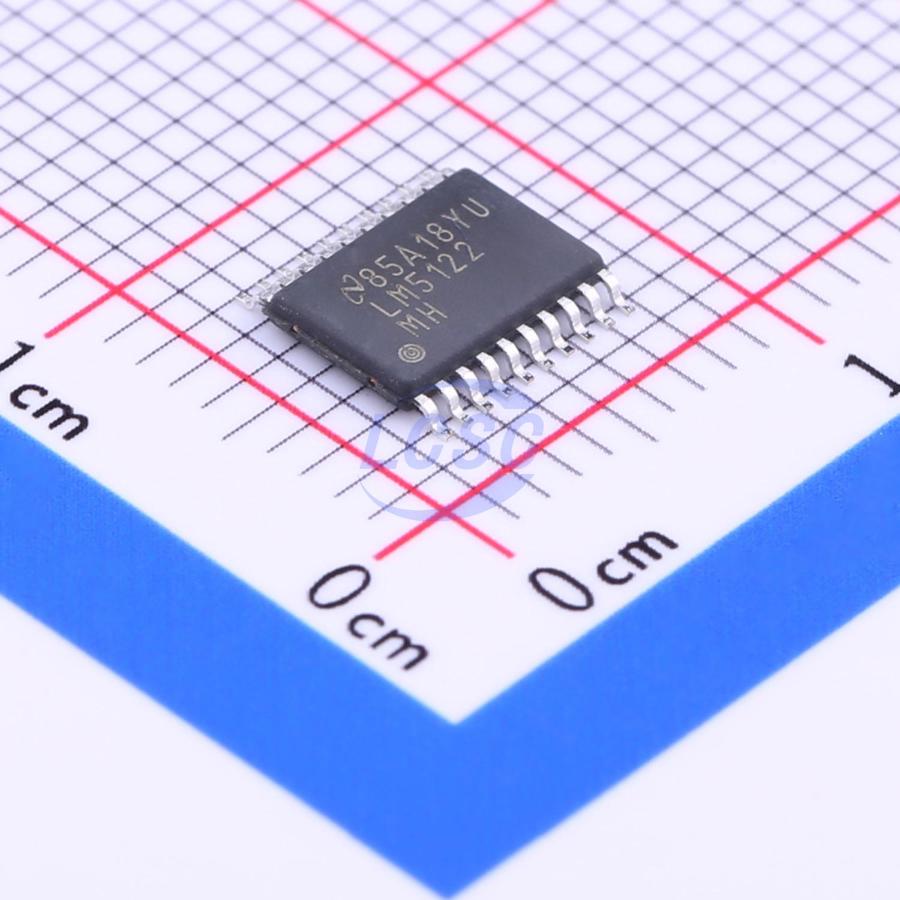

LM5122MHX/NOPB
1 100V Adjustable Boost HTSSOP-20-EP DC DC Switching Controllers RoHS
Wide-Input Synchronous Boost Controller
- Manufacturer
- TI
- Manufacturer part #
- LM5122MHX/NOPB
- Store part #
- C77241
- Package / case
- HTSSOP-20-EP
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,918 in stock
#C77241
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹321.24 | ₹321.24 |
| 10+ | ₹269.55 | ₹2,695.50 |
| 30+ | ₹224.59 | ₹6,737.70 |
| 100+ | ₹191.36 | ₹19,136.00 |
| 500+ | ₹176.37 | ₹88,185.00 |
| 1,000+ | ₹170.07 | ₹1,70,070.00 |
1 × ₹321.24
₹321.24
excl. GST
₹379.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM5122MHX/NOPB
₹321.24 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Frequency synchronization;Light load efficient mode;Overcurrent Protection
- Number of Channels
- 1
- Topology
- Boost
- Operating Voltage
- 4.5V~65V
- Switch tube (built-in/external)
- External
- Output Voltage
- 100V
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 450kHz;875kHz
- Output Type
- Adjustable
- Function
- Boost
- Quiescent Current
- 9uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
The LM5122 is a multi-phase capable synchronous boost controller intended for high-efficiency synchronous boost regulator applications. The control method is based upon peak-current-mode control. Current-mode control provides inherent line feed forward, cycle-by-cycle current limiting, and ease of loop compensation. The switching frequency is programmable up to 1 MHz. Higher efficiency is achieved by two robust Nchannel MOSFET gate drivers with adaptive deadtime control. A user-selectable diode-emulation mode also enables discontinuous-mode operation for improved efficiency at light load conditions. An internal charge pump allows 100% duty cycle for high-side synchronous switch (bypass operation). A 180° phase shifted clock output enables easy multiphase interleaved configuration. Additional features include thermal shutdown, frequency synchronization, hiccup-mode current limit, and adjustable line undervoltage lockout.
Applications
- 12-V, 24-V, and 48-V Power Systems
- Automotive Start-Stop
- Audio Power Supply
- High-Current Boost Power Supply
Key features
- Maximum Input Voltage: 65 V
- Minimum Input Voltage: 3 V (4.5 V for Start-Up)
- Output Voltage up to 100 V
- Bypass (V_OUT = V_IN) Operation
- 1.2-V Reference with ±1% Accuracy
- Free-Run and Synchronizable Switching to 1 MHz
- Peak-Current-Mode Control
- Robust 3-A Integrated Gate Drivers
- Adaptive Dead-Time Control
- Optional Diode-Emulation Mode
- Programmable Cycle-by-Cycle Current Limit
- Hiccup-Mode Overload Protection
- Programmable Line UVLO
- Programmable Soft Start
- Thermal Shutdown Protection
- Low Shutdown Quiescent Current: 9 μA
- Programmable Slope Compensation
- Programmable Skip-Cycle Mode Reduces Standby Power
- Allows External VCC Supply
- Inductor DCR Current Sensing Capability
- Multi-phase Capability
- Thermally Enhanced 20 or 24-Pin HTSSOP
- Create a Custom Design Using the LM5122 With the WEBENCH Power Designer
