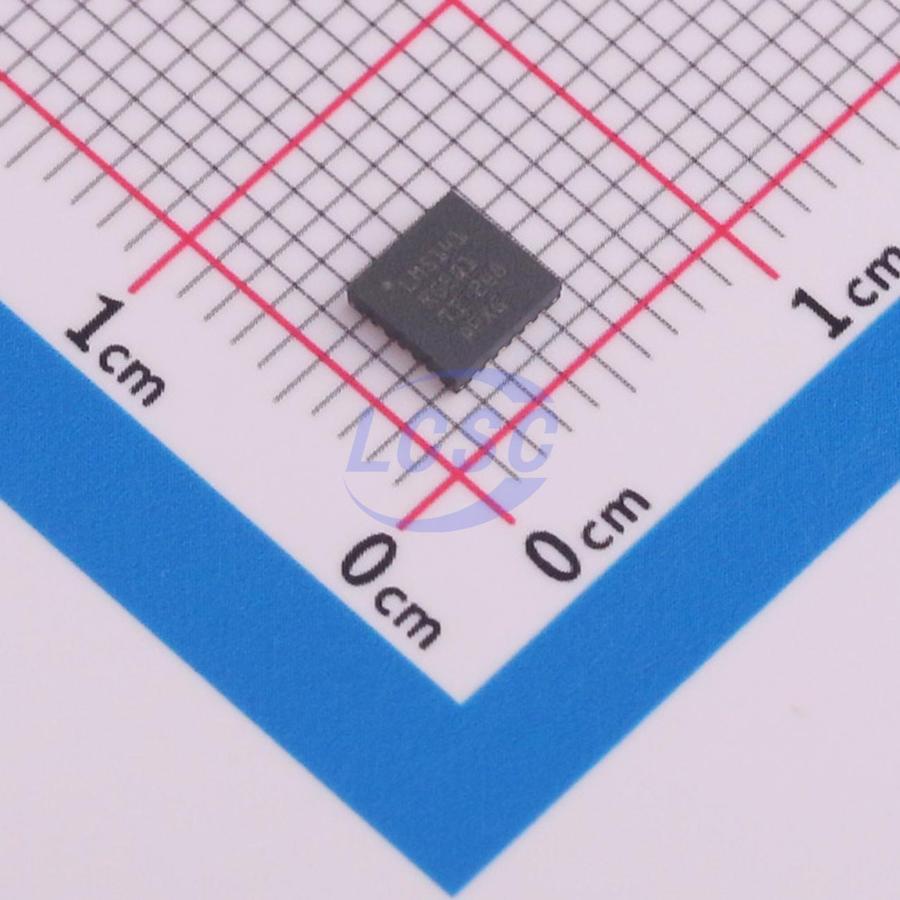

LM5141QRGERQ1
Buck Switching Regulator IC Adjustable 1.5V~15V 1 Output VQFN-24-EP(4x4)
Synchronous buck controller with wide input range
- Manufacturer
- TI
- Manufacturer part #
- LM5141QRGERQ1
- Store part #
- C2658684
- Package / case
- VQFN-24-EP(4x4)
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,248 in stock
#C2658684
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹315.91 | ₹315.91 |
| 10+ | ₹298.77 | ₹2,987.70 |
| 30+ | ₹288.59 | ₹8,657.70 |
| 100+ | ₹280.78 | ₹28,078.00 |
| 500+ | ₹276.02 | ₹1,38,010.00 |
| 1,000+ | ₹273.85 | ₹2,73,850.00 |
1 × ₹315.91
₹315.91
excl. GST
₹372.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM5141QRGERQ1
₹315.91 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Operating status indication
- Number of Channels
- 1
- Topology
- Buck
- Operating Voltage
- 3.8V~65V
- Switch tube (built-in/external)
- External
- Output Voltage
- 1.5V~15V
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 440kHz;2.2MHz
- Output Type
- Adjustable
- Function
- Step-down type
- Quiescent Current
- 35uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
LM5141-Q1 is a synchronous buck controller for high-voltage wide VIN step-down converter applications. The control method is based on peak current mode control, which offers inherent line feedforward, cycle-by-cycle current limiting, and simplified loop compensation. The LM5141-Q1 features slew rate control on the gate drivers, enabling easy compliance with CISPR and automotive EMI requirements. The LM5141-Q1 is available in two switching frequency options: 2.2MHz and 440kHz. The gate drivers feature slew rate control that can be adjusted to reduce EMI. Under light-load or no-load conditions, the LM5141-Q1 improves light-load efficiency by operating in skip-cycle mode. The LM5141-Q1 includes a high-voltage bias regulator that automatically switches to an external bias supply, improving efficiency and reducing I0 (from VIN). Adjustable features include frequency synchronization, cycle-by-cycle current limiting, hiccup mode fault protection for sustained overload conditions, and power good output.
Applications
- Infotainment systems
- Dashboard
- Advanced Driver Assistance Systems (ADAS)
Key features
- Qualified for Automotive Applications
- Characterized for operation with the following AEC-Q100 specifications:
- Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
- VIN: 3.8V to 65V (Absolute Maximum 70V)
- Output: Fixed 3.3V or 5V, or Adjustable 1.5V to 15V, ±0.8% Accuracy
