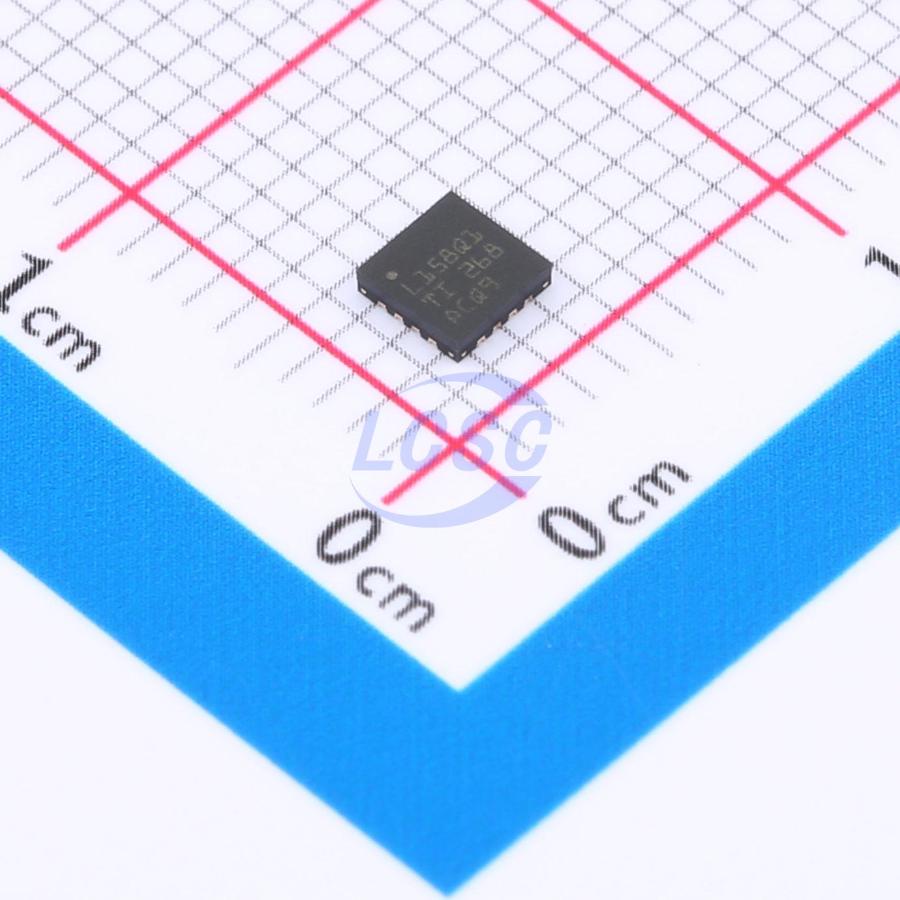

LM5158QRTERQ1

The LM5158x-Q1 is a non-synchronous boost converter featuring an integrated 85V, 3.26A (LM5158-Q1) or 85V, 1.63A (LM51581-Q1) power switch with wide input voltage range. The device supports boost, SEPIC, and flyback topologies. It can start up from a single-cell battery with a minimum voltage of 3.2V. If the BIAS pin voltage exceeds 3.2V, the device can operate with input supply voltages as low as 1.5V. In automotive load dump conditions, the BIAS pin can operate at voltages up to 60V (65V absolute maximum). The switching frequency can be dynamically programmed via an external resistor over a range of 100kHz to 2.2MHz. The 2.2MHz switching frequency minimizes AM band interference while enabling a compact solution size and fast transient response. The device offers optional dual random spread spectrum to reduce EMI over a wide frequency range. The device provides accurate peak current limiting across the input voltage range, avoiding over-design of the power inductor. Low-power and pulse-skip operating modes improve efficiency at light loads. The device incorporates built-in protection features including overvoltage protection, line UVLO, thermal shutdown, and optional discontinuous mode overload protection. Additional features include low shutdown IQ, programmable soft-start, precision compensation, power-good indicator, and external clock synchronization.

Applications

• Battery-powered wide-input boost, SEPIC, and flyback converters
• Automotive voltage stabilizer in SEPIC
• High-voltage LiDAR power supply
• Automotive LED bias power supply
• Multi-output flyback applications without optocoupler
• Hold-up capacitor charger
• Inverter bias power supply
• Piezoelectric driver/motor driver bias power supply

Key features

• AEC-Q100 qualified for automotive applications, temperature grade 1: -40°C to +125°C TA
• Documentation to support functional safety system design for wide operating voltage range in automotive battery applications
• 3.2V to 60V input voltage operating range (absolute maximum 65V)
• Maximum output voltage 83V (absolute maximum 85V)
• Minimum boost supply voltage 1.5V when BIAS voltage ≥ 3.2V
• Input transient protection up to 65V
• Minimum battery consumption
• Low shutdown current (IQ ≤ 2.6μA)
• Low operating current (IQ ≤ 670μA)
• Small solution size, low cost
• Switching frequency up to 2.2MHz (maximum)
• 16-pin QFN package (3mm × 3mm) with wettable flanks
• Integrated error amplifier supports primary-side regulation (flyback) without optocoupler
• Minimized undershoot during startup
• Accurate current limiting
• Optional dual random spread spectrum
• Leadless package
• Low power consumption, high efficiency
• 133mΩ RDSON switch
• Fast switching with low switching losses
• Avoids AM band interference and crosstalk
• Optional clock synchronization
• Dynamic programmable wide switching frequency range from 100kHz to 2.2MHz
• Integrated protection features
• Constant current limiting across input voltage range
• Optional discontinuous mode overload protection
• Programmable line UVLO
• OVP protection
• Thermal shutdown protection
• Precise ±1% accuracy feedback reference
• Adjustable soft-start
• PGOOD indicator
