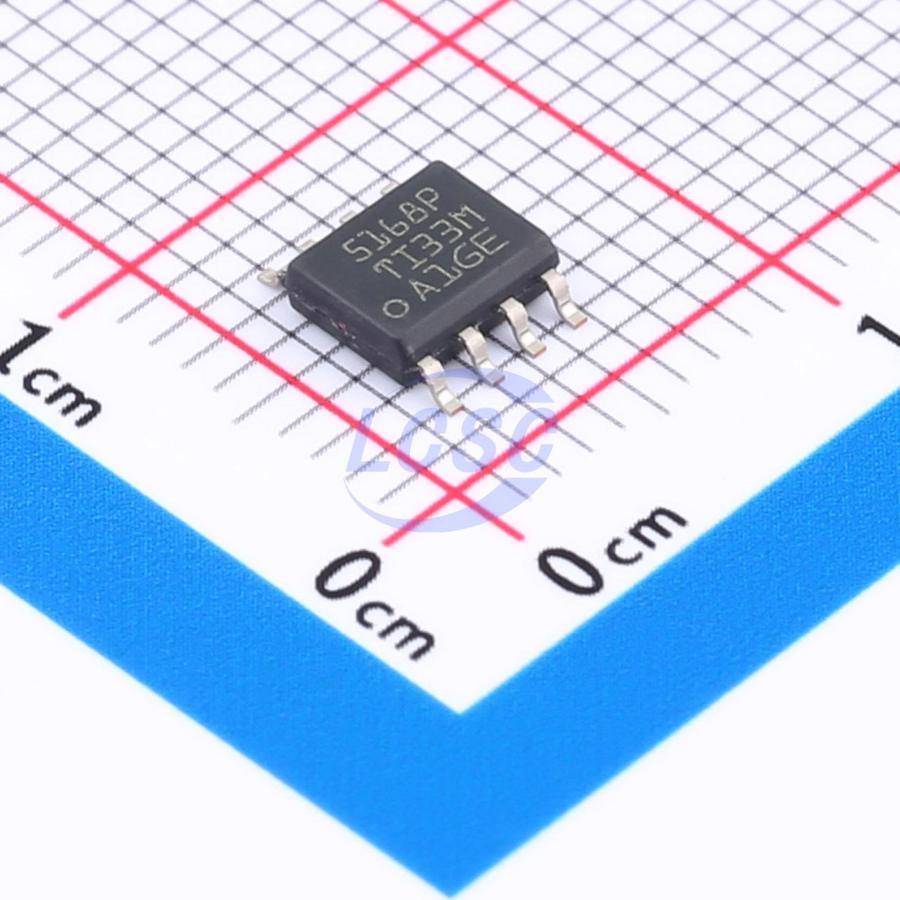

LM5168PDDAR

The LM5169 and LM5168 synchronous buck converters are designed to regulate over a wide input voltage range, minimizing the need for external surge suppression components. A minimum controllable on time of 50 ns facilitates large step-down conversion ratios, enabling the direct step-down from a 48-V nominal input to low-voltage rails for reduced system complexity and solution cost. The LM516x operates during input voltage dips as low as 6 V, at nearly 100% duty cycle if needed, making it an excellent choice for wide input supply range industrial and high cell count battery pack applications. With integrated high-side and low-side power MOSFETs, the LM5169 delivers up to 0.65-A of output current and the LM5168 delivers up to 0.3-A of output current. A constant on-time (COT) control architecture provides nearly constant switching frequency with excellent load and line transient response. The LM516x is available in FPWM or auto mode versions. FPWM mode provides forced CCM operation across the entire load range supporting isolated fly-buck converter applications. Auto mode enables ultra-low IQ and diode emulation mode operation for high lightload efficiency.

Applications

• Communications – brick power module
• Industrial battery pack (≥10 S)
• Battery pack – e-bike/e-scooter/LEV

Key features

• Designed for reliability in rugged applications
• Wide input voltage range of 6 V to 120 V
• Junction temperature range: -40°C to +150°C
• Fixed 3-ms internal soft-start timer
• Peak and valley current-limit protection
• Input UVLO and thermal shutdown protection
• Suited for scalable industrial power supplies and battery packs
• Low minimum on and off times of 50 ns
• Adjustable switching frequency up to 1 MHz
• Diode emulation for high light-load efficiency
• Auto mode with low quiescent current (<10 μA)
• FPWM for fly-buck converter capability
• 3-μA shutdown quiescent current
• Pin-to-pin compatible with LM5164, LM5163, LM5017, and LM34927
• Integration reduces solution size and cost
• COT mode control architecture
• Integrated 1.9-Ω NFET buck switch
• Integrated 0.71-Ω NFET synchronous rectifier
• 1.2-V internal voltage reference – No loop compensation components
• Internal VCC bias regulator and boot diode
• Open-drain power-good indicator
• SOIC PowerPAD integrated circuit package
