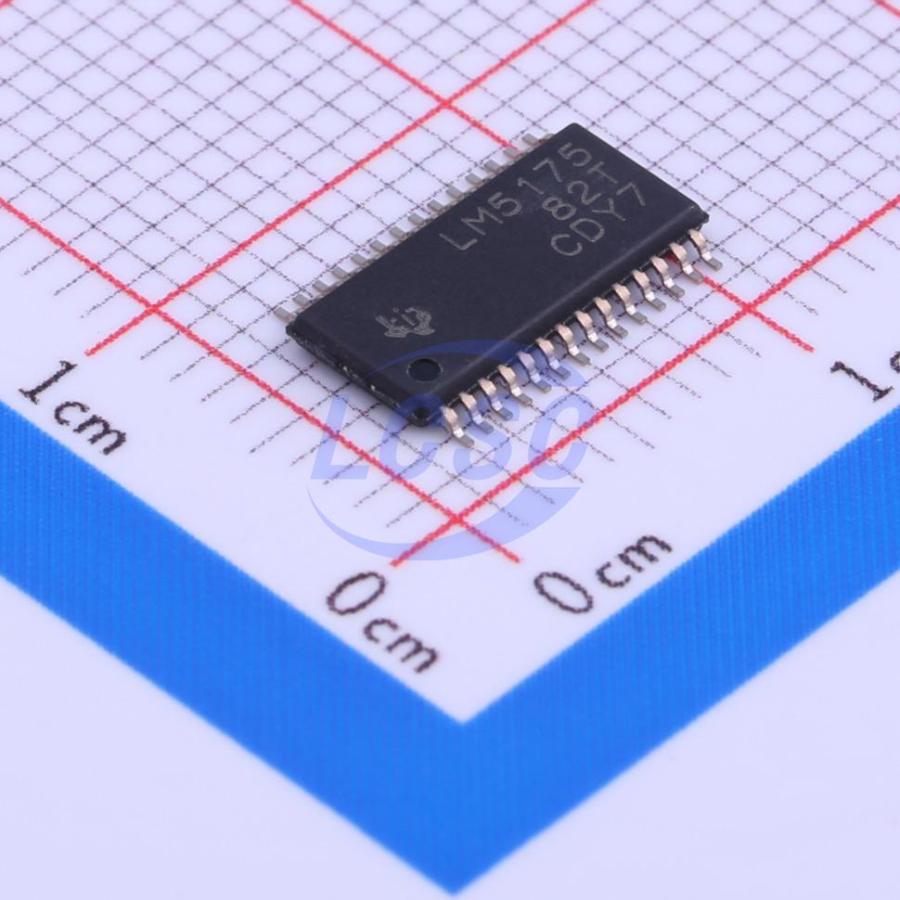

LM5175PWPR
1 800mV~55V Adjustable Buck-Boost HTSSOP-28 DC DC Switching Controllers RoHS
42-V Wide Vin Synchronous 4-Switch Buck-Boost Controller
- Manufacturer
- TI
- Manufacturer part #
- LM5175PWPR
- Store part #
- C113356
- Package / case
- HTSSOP-28
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,389 in stock
#C113356
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹415.18 | ₹415.18 |
| 10+ | ₹354.84 | ₹3,548.40 |
| 30+ | ₹319.07 | ₹9,572.10 |
| 100+ | ₹262.88 | ₹26,288.00 |
| 500+ | ₹246.26 | ₹1,23,130.00 |
| 1,000+ | ₹238.67 | ₹2,38,670.00 |
1 × ₹415.18
₹415.18
excl. GST
₹489.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM5175PWPR
₹415.18 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Frequency synchronization;EMI optimization (spread spectrum);External compensation;Light load efficient mode;Operating status indication;Overcurrent Protection
- Number of Channels
- 1
- Topology
- Buck-Boost
- Operating Voltage
- 3.5V~42V
- Switch tube (built-in/external)
- External
- Output Voltage
- 800mV~55V
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 100kHz~600kHz
- Output Type
- Adjustable
- Function
- Buck-Boost
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
The LM5175 is a synchronous four-switch buck-boost DC/DC controller capable of regulating the output voltage at, above, or below the input voltage. The LM5175 operates over a wide input voltage range of 3.5 V to 42 V (60 V maximum) to support a variety of applications. The LM5175 employs current-mode control both in buck and boost modes of operation for superior load and line regulation. The switching frequency is programmed by an external resistor and can be synchronized to an external clock signal. The device also features a programmable soft-start function and offers protection features including cycle-by-cycle current limiting, input undervoltage lockout (UVLO), output overvoltage protection (OVP), and thermal shutdown. In addition, the LM5175 features selectable Continuous Conduction Mode (CCM) or Discontinuous Conduction Mode (DCM) operation, optional average input or output current limiting, optional spread spectrum to reduce peak EMI, and optional hiccup mode protection in sustained overload conditions.
Applications
- Automotive Start-Stop Systems
- Backup Battery and Supercapacitor Charging
- Industrial PC Power Supplies
- USB Power Delivery
- LED Lighting
Key features
- Single Inductor Buck-Boost Controller for StepUp/Step-Down DC/DC Conversion
- Wide VIN Range: 3.5 V to 42 V, 60 V Maximum
- Flexible VOUT Range: 0.8 V to 55 V
- VOUT Short Protection
- High Efficiency Buck-Boost Transition
- Adjustable Switching Frequency
- Optional Frequency Sync and Dithering
- Integrated 2-A MOSFET Gate Drivers
- Cycle-by-Cycle Current Limit and Optional Hiccup
- Optional Input or Output Average Current Limiting
- Programmable Input UVLO and Soft-Start
- Power Good and Output Overvoltage Protection
- Selectable CCM or DCM with Pulse Skipping
- Available in HTSSOP-28 and QFN-28 Packages
- Create a Custom Design Using the LM5175 with the WEBENCH Power Designer
