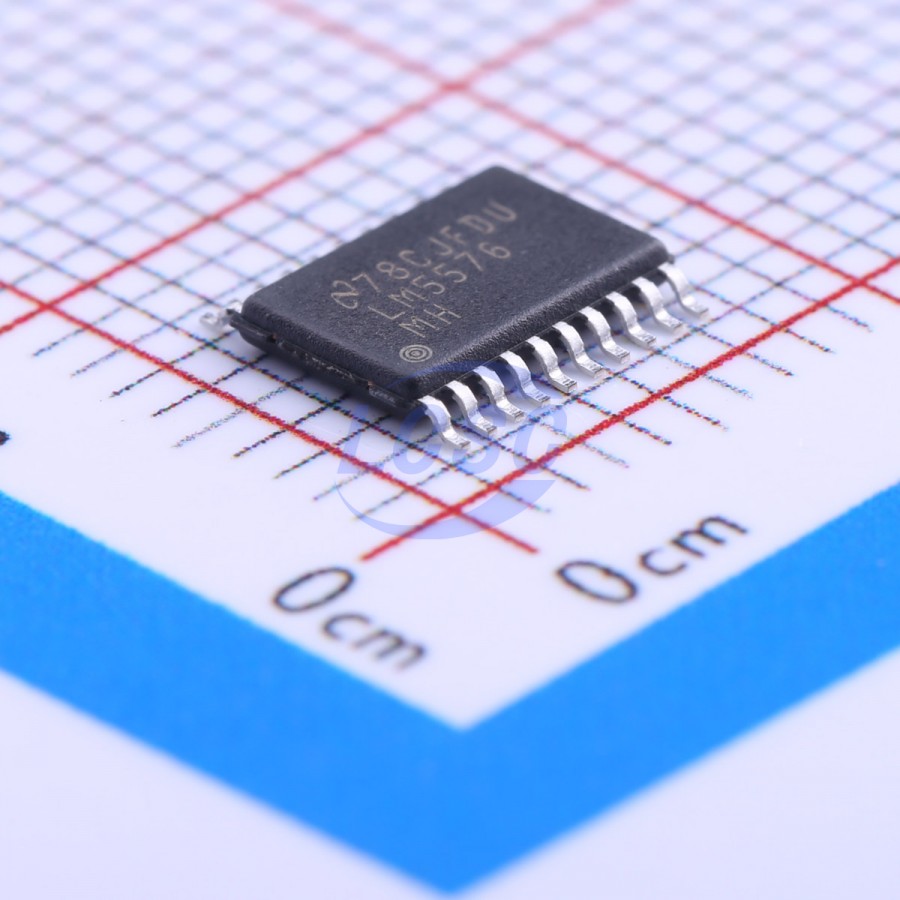

LM5576MH/NOPB

500kHz Step-down type Adjustable 3A HTSSOP-20-EP Voltage Regulators - DC DC Switching Regulators RoHS

HTSSOP-20-EPROHS3 CompliantActive

75 V, 3 A Step-Down Switching Regulator

Manufacturer: TI
Manufacturer part #: LM5576MH/NOPB
Store part #: C182428
Package / case: HTSSOP-20-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

30 in stock

#C182428

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹435.03	₹435.03
10+	₹369.63	₹3,696.30
30+	₹328.55	₹9,856.50
73+	₹277.06	₹20,225.38
511+	₹258.16	₹1,31,919.76
1,022+	₹249.90	₹2,55,397.80

Quantity (min 1)

1 × ₹435.03

₹435.03

excl. GST

₹513.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 73 per tube

LM5576MH/NOPB

₹435.03 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 500kHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Frequency synchronization;Cycle-by-cycle current limiting;Overcurrent Protection;Built-in LDO regulator;External compensation
Output Type: Adjustable
Topology: Buck
Operating Voltage: 6V~75V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 57uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 73 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.208 g

Overview

The LM5576 is an easy to use SIMPLE SWITCHER® buck regulator which allows design engineers to design and optimize a robust power supply using a minimum set of components. Operating with an input voltage range of 6 - 75V, the LM5576 delivers 3 A of continuous output current with an integrated 170 mΩ N-Channel MOSFET. The regulator utilizes an Emulated Current Mode architecture which provides inherent line regulation, tight load transient response, and ease of loop compensation without the usual limitation of low-duty cycles associated with current mode regulators. The operating frequency is adjustable from 50 kHz to 500 kHz to allow optimization of size and efficiency. To reduce EMI, a frequency synchronization pin allows multiple ICs from the LM(2)557x family to self-synchronize or to synchronize to an external clock. The LM5576 ensures robustness with cycle-by-cycle current limit, short-circuit protection, thermal shut-down, and remote shut-down. The device is available in a power enhanced HTSSOP-20 package featuring an exposed die attach pad for thermal dissipation. The LM5576 is supported by the full suite of WEBENCH® On-Line design tools.

Applications

Automotive
Industrial

Key features

Automotive Grade Product that is AEC-Q100 grade 1 Qualified (-40°C to +125°C Operating Junction Temperature) and AEC-Q100 Grade 0 Qualified (-40°C to +150°C Operating Junction Temperature)
Integrated 75 V, 170 mΩ N-channel MOSFET
Ultra-Wide Input Voltage Range from 6 V to 75 V
Adjustable Output Voltage as Low as 1.225 V
1.5% (Q1) and 1.65% (Q0) Feedback Reference Accuracy
Operating Frequency Adjustable Between 50 kHz and 500 kHz with Single Resistor
Master or Slave Frequency Synchronization
Adjustable Soft-Start
Emulated Current Mode Control Architecture
Wide Bandwidth Error Amplifier
Built-in Protection
HTSSOP-20EP (Exposed Pad)
