GREENMICRODatasheet (PDF)

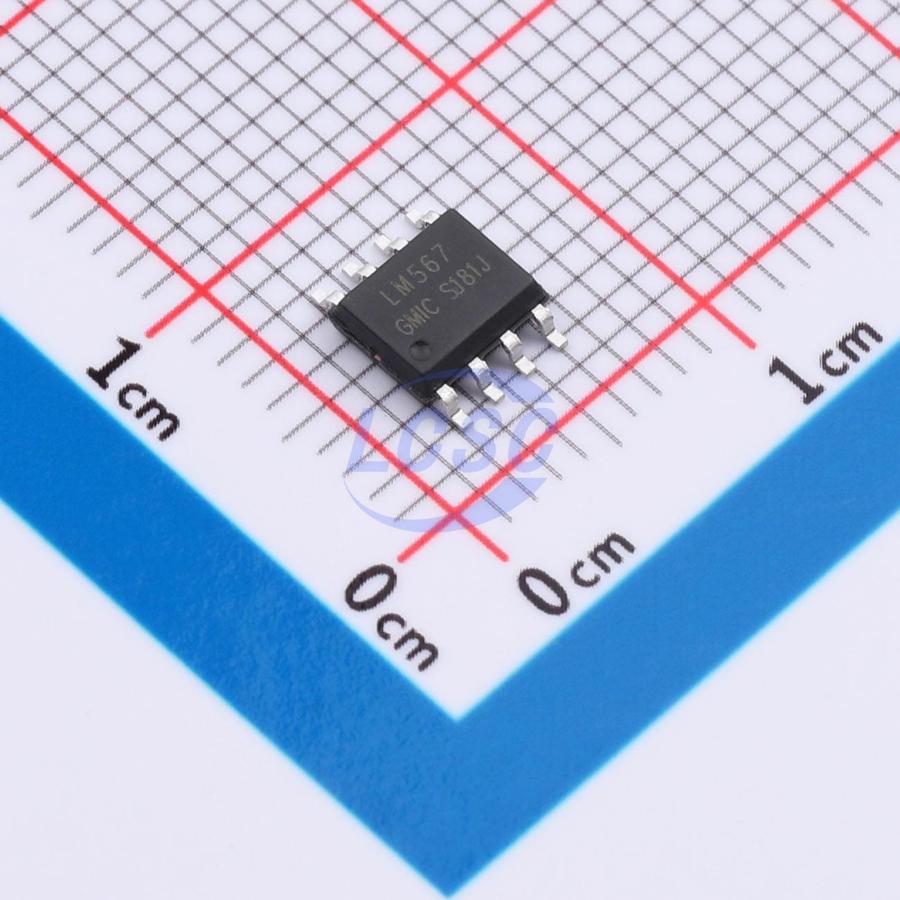

LM567CBS
SOP-8 Voice Record and Playback
SOP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- LM567CBS
- Store part #
- C53055872
- Package / case
- SOP-8
- Category
- Voice Record and Playback
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C53055872
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.01 | ₹85.05 |
| 50+ | ₹13.56 | ₹678.00 |
| 150+ | ₹11.83 | ₹1,774.50 |
| 500+ | ₹10.53 | ₹5,265.00 |
| 2,500+ | ₹9.49 | ₹23,725.00 |
| 5,000+ | ₹8.97 | ₹44,850.00 |
5 × ₹17.01
₹85.05
excl. GST
₹100.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM567CBS
₹85.05 for 5 + GST
Specifications
- Voltage - Supply
- 4.75V~9V
- Sampling Rate
- 44.1kHz;48kHz
- Interface
- I2C;SPI;USB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.279 g
Overview
The LM567 is a general-purpose tone decoder that provides a grounded saturated transistor switch when the input signal falls within its passband. The circuit consists of an I/Q detector and a VCO, which determines the center frequency of the decoder. The center frequency, bandwidth, and output delay can be independently configured via external components.
Applications
- Dual-tone multi-frequency decoding
- Precision oscillator
- Frequency monitoring and control
- Wideband FSK demodulation
- Ultrasonic control
Key features
- 20:1 frequency range via external resistor
- Logic-compatible output with 100mA sink current capability
- Adjustable bandwidth from 0% to 14%
- High out-of-band signal and noise rejection
- Spurious signal immunity
- Highly stable center frequency
- Adjustable center frequency from 0.01Hz to 500kHz
