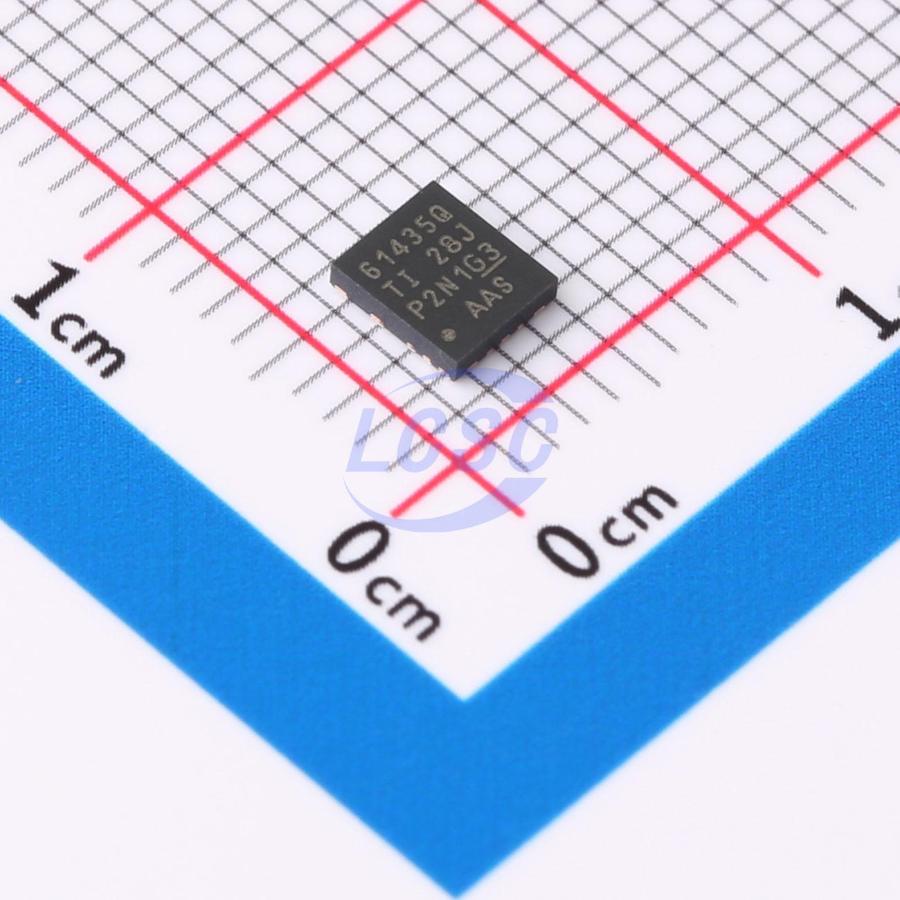

LM61435AASQRJRRQ1

It provides functional safety and is optimized for ultra-low EMI requirements. The HotRod package and parallel input paths minimize switching node ringing. Spread spectrum reduces peak emissions, and the rise time of the SW node is adjustable. It is specifically designed for automotive applications, supporting 42V automotive load dumps, with a total output regulation accuracy of ±1%. The VOUT can be adjusted between 1V and 95% of the VIN. A fixed output voltage of 3.3V is optionally available at the factory. It has a 0.3V dropout (typical) at a 3A load. It enables efficient power conversion under all loads, with a no-load current of 7μA at 13.5VIN, 3.3VOUT, and a PFM efficiency of 83% at 1mA, 13.5VIN, 5VOUT. It features an external bias option for enhanced efficiency. It is suitable for scalable power supplies and is pin-compatible with the LM61440-Q1 (36V, 4A, adjustable fSW) and LM61460-Q1 (36V, 6A, adjustable fSW). It is a high-performance automotive-specific DC/DC synchronous buck converter with integrated high-side and low-side MOSFETs, capable of delivering up to 3.5A of output current over a wide input voltage range of 3.0V to 36V. It can withstand 42V, simplifying the design of input inrush current protection. It provides soft recovery of the dropout, eliminating the need for output overshoot. It is specifically designed to reduce EMI, featuring pseudo-random spread spectrum, adjustable SW node rise time, and low EMI. It uses a VQFN-HR package with low switching node ringing and an easy-to-use, optimized pin arrangement. The switching frequency can be set or synchronized from 200kHz to 2.2MHz, avoiding noise-sensitive frequency bands. Additionally, the frequency can be selected to improve efficiency at low operating frequencies or reduce the solution size at high operating frequencies. The automatic mode enables frequency foldback during light-load operation, achieving a no-load current consumption of only 7μA (typical) and high light-load efficiency. Seamless transition between PWM and PFM modes, along with extremely low MOSFET on-resistance and an external bias input, ensures excellent efficiency across the entire load range. The electrical characteristics are rated for a junction temperature range of -40°C to +150°C.

Applications

• Automotive infotainment systems and instrument clusters: head units, media hubs, USB chargers, displays
• Automotive ADAS and body electronics

Key features

• AEC-Q100 qualified for automotive applications – Temperature Grade 1: -40°C to +150°C, TJ
