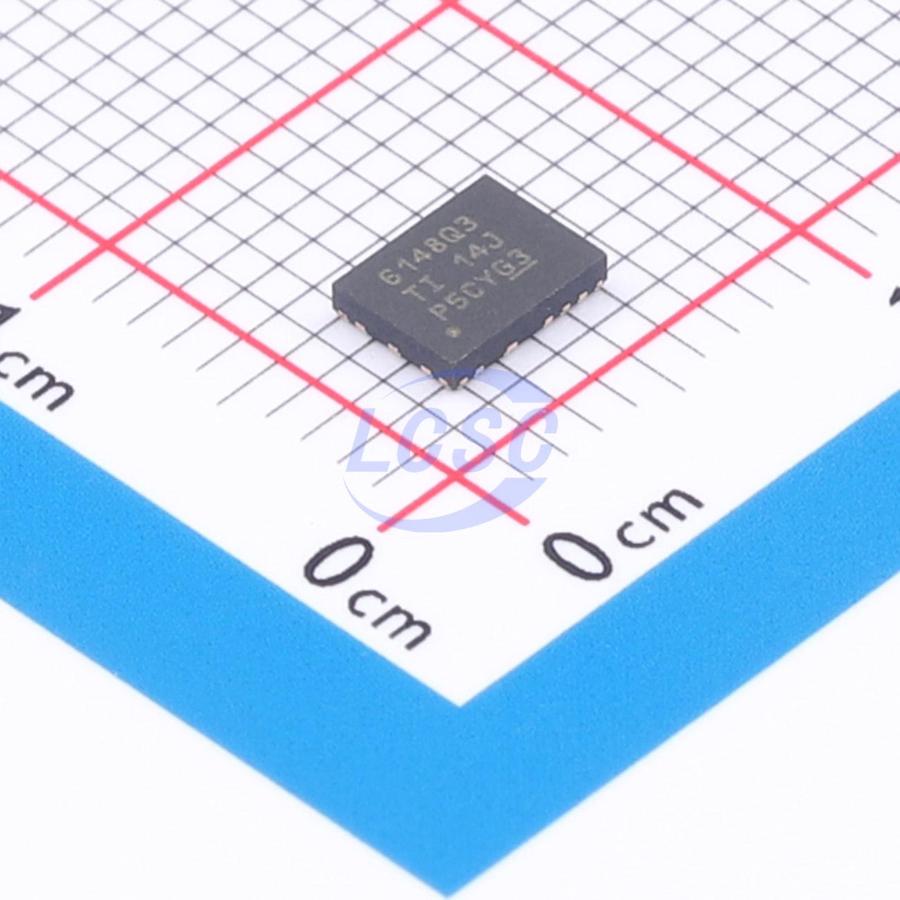

LM61480Q3RPHRQ1

Step-down type Fixed 3.3V 8A VQFN-16-HR(4.5x3.5) Voltage Regulators - DC DC Switching Regulators RoHS

VQFN-16-HR(4.5x3.5)ROHS CompliantActive

Manufacturer: TI
Manufacturer part #: LM61480Q3RPHRQ1
Store part #: C3188413
Package / case: VQFN-16-HR(4.5x3.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18 in stock

#C3188413

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹665.79	₹665.79
10+	₹650.24	₹6,502.40
30+	₹639.87	₹19,196.10
100+	₹629.51	₹62,951.00

Quantity (min 1)

1 × ₹665.79

₹665.79

excl. GST

₹785.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM61480Q3RPHRQ1

₹665.79 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃@(TJ)
Frequency - Switching: 400kHz;2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Built-in LDO regulator;Overcurrent Protection;Operating status indication
Topology: Buck
Output Type: Fixed
Operating Voltage: 3V~36V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 8A
Quiescent Current: 5uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.03 g

Overview

The LM6x4xx-Q1 buck regulator family is an automotive-grade regulator series offering fixed or adjustable output voltage (configurable from 1V to 95% of the expected input voltage). These regulators operate over a wide input voltage range (3V to 36V) with transient tolerance up to 42V. This family is designed for low EMI. The device features pin-selectable spread spectrum and adjustable SW node rise time. Dual Random Spread Spectrum (DRSS) frequency dithering is set to ±4% (typical), significantly reducing peak emissions through a combination of triangular and pseudo-random modulation, with advanced techniques to minimize output voltage ripple caused by spread spectrum modulation. The open-drain RESET output with filtering and deglitched release provides accurate system status indication. In automatic mode, the device automatically transitions between fixed-frequency PWM and PFM operating modes, achieving a no-load quiescent current of only 5μA (typical). Electrical characteristics are rated for a junction temperature range of –40°C to +150°C.

Applications

Automotive infotainment systems
Instrument clusters
ADAS

Key features

AEC-Q100 qualified for automotive applications: Temperature Grade 1: -40°C to +125°C, TA
Functional Safety capable
Documentation available to aid functional safety system design
Input voltage range: 3V to 36V
RESET output with filter and delayed release
Low EMI:
EVM compliant with CISPR 25 Class 5
Pin-configurable spread spectrum
Adjustable SW node rise time
Above and below AM band operation: pin-configurable fixed 400kHz and 2.2MHz, or adjustable between 200kHz to 2.2MHz
Low EMI symmetrical pin layout
Pin-configurable light load mode for constant frequency or PFM
High efficiency solution:
95% efficiency at 8A load
5μA input current at no load in Auto mode
<1μA shutdown current (typical)
High power density:
Integrated compensation, soft-start, current limit, thermal shutdown, and UVLO
4.5mm×3.5mm wettable flank QFN package
ΘJA = 21.6°C/W, measured on LM61495RPHEVM
