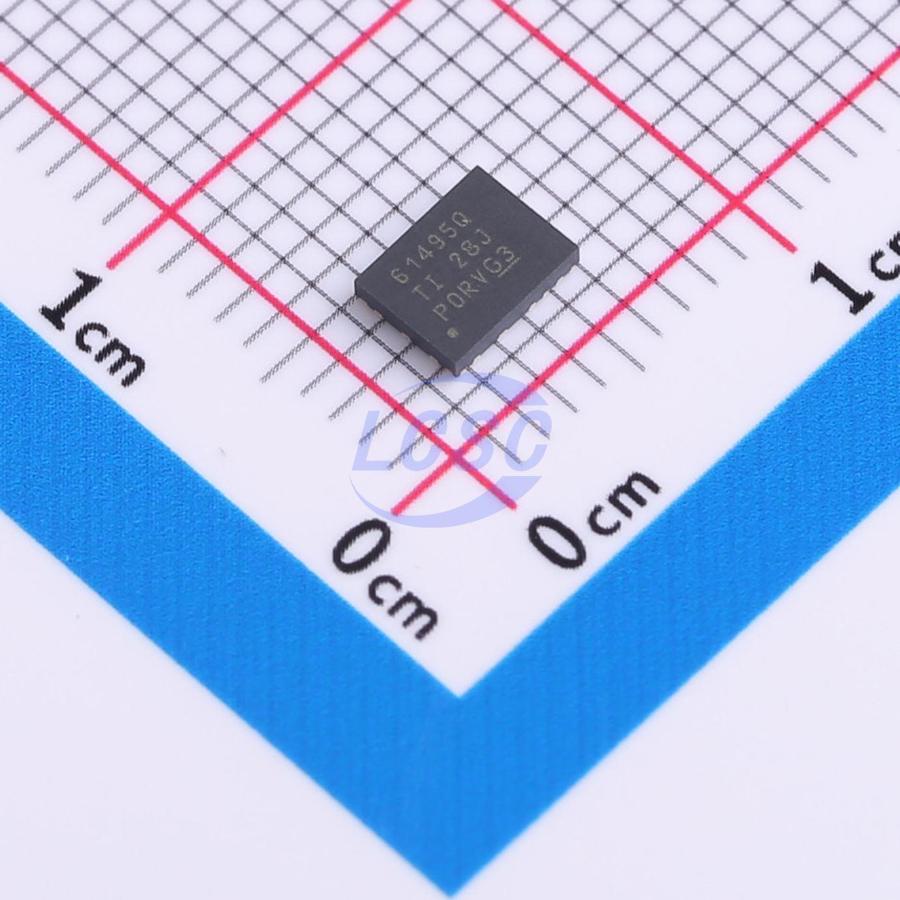

LM61495QRPHRQ1
Buck Switching Regulator IC Adjustable 1V~34.2V 1 Output 10A VQFN-16-HR(4.5x3.5)
VQFN-16-HR(4.5x3.5)ROHS3 CompliantActive
Automotive step-down converters optimized for power density and low EMI
- Manufacturer
- TI
- Manufacturer part #
- LM61495QRPHRQ1
- Store part #
- C3188410
- Package / case
- VQFN-16-HR(4.5x3.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,057 in stock
#C3188410
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹464.11 | ₹464.11 |
| 10+ | ₹398.16 | ₹3,981.60 |
| 30+ | ₹359.19 | ₹10,775.70 |
| 100+ | ₹319.57 | ₹31,957.00 |
| 500+ | ₹301.29 | ₹1,50,645.00 |
| 1,000+ | ₹293.02 | ₹2,93,020.00 |
1 × ₹464.11
₹464.11
excl. GST
₹547.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM61495QRPHRQ1
₹464.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 2.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Built-in LDO regulator;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3V~36V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1V~34.2V
- Output Current
- 10A
- Quiescent Current
- 10uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
The LM6x4xx-Q1 buck regulator family is an automotive-grade regulator series offering fixed or adjustable output voltage (configurable from 1V to 95% of the expected input voltage). These regulators operate over a wide input voltage range (3V to 36V) with transient tolerance up to 42V. This family is designed for low EMI. The device features pin-selectable spread spectrum and adjustable SW node rise time. Dual Random Spread Spectrum (DRSS) frequency dithering is set to ±4% (typical), significantly reducing peak emissions through a combination of triangular and pseudo-random modulation, with advanced techniques to minimize output voltage ripple caused by spread spectrum modulation. The open-drain RESET output with filtering and deglitched release provides accurate system status indication. In automatic mode, the device automatically transitions between fixed-frequency PWM and PFM operating modes, achieving a no-load quiescent current of only 5μA (typical). Electrical characteristics are rated for a junction temperature range of –40°C to +150°C.
Applications
- Automotive infotainment systems
- Instrument clusters
- ADAS
Key features
- AEC-Q100 qualified for automotive applications: Temperature Grade 1: -40°C to +125°C, TA
- Functional Safety capable
- Documentation available to aid functional safety system design
- Input voltage range: 3V to 36V
- RESET output with filter and delayed release
- Low EMI:
- EVM compliant with CISPR 25 Class 5
- Pin-configurable spread spectrum
- Adjustable SW node rise time
- Above and below AM band operation: pin-configurable fixed 400kHz and 2.2MHz, or adjustable between 200kHz to 2.2MHz
- Low EMI symmetrical pin layout
- Pin-configurable light load mode for constant frequency or PFM
- High efficiency solution:
- 95% efficiency at 8A load
- 5μA input current at no load in Auto mode
- <1μA shutdown current (typical)
- High power density:
- Integrated compensation, soft-start, current limit, thermal shutdown, and UVLO
- 4.5mm×3.5mm wettable flank QFN package
- ΘJA = 21.6°C/W, measured on LM61495RPHEVM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM61495RPHR#C2943584TI · VQFN-16-HR(3.5x4.5) | TI | VQFN-16-HR(3.5x4.5) | 731 | ₹384.37 · 731 in stock | View |
 | LM61480QRPHRQ1#C3188414TI · VQFN-16-HR(4.5x3.5) | TI | VQFN-16-HR(4.5x3.5) | 45 | ₹820.74 · 45 in stock | View |
 | LM61480RPHR#C3198089TI · VQFN-16-HR(4.5x3.5) | TI | VQFN-16-HR(4.5x3.5) | 3,907 | ₹264.98 · 3,907 in stock | View |
| LM61480TQVAMRQ1#C43351180TI · VQFN-16(3.5x4.5) | TI | VQFN-16(3.5x4.5) | On request | ₹907.72 · 0 in stock | View | |
