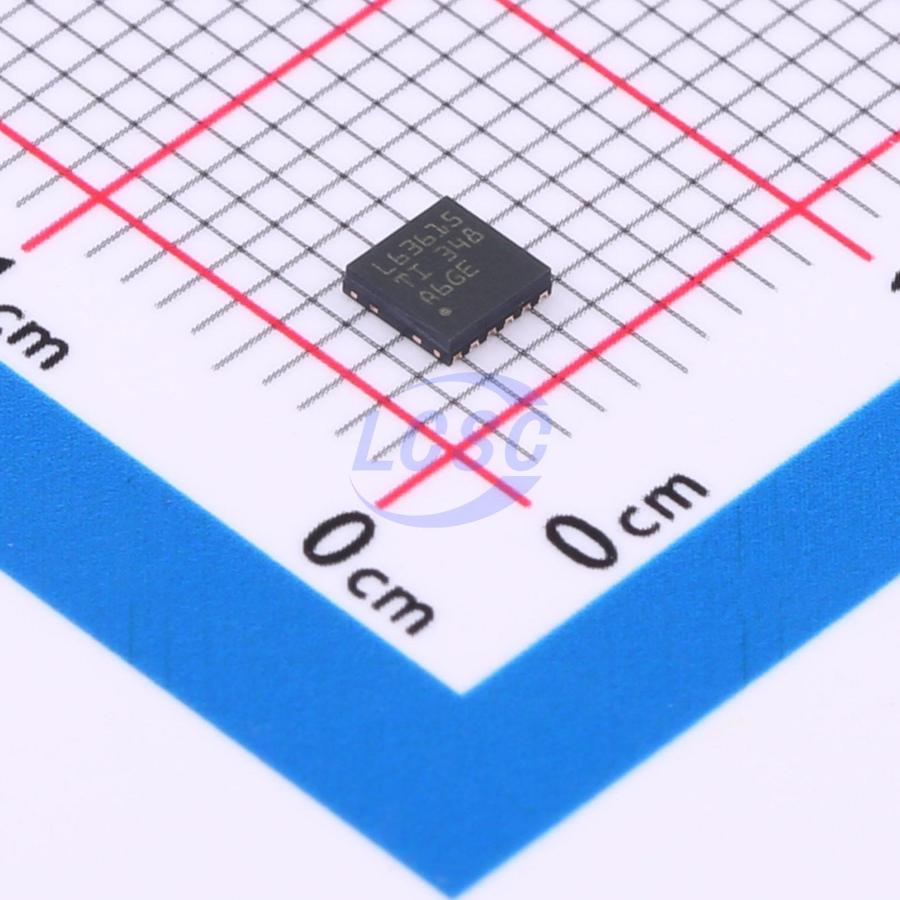

LM63615DQDRRRQ1

LM636x5-Q1 is an easy-to-use synchronous DC/DC buck converter designed for demanding automotive applications. The LM636x5-Q1 supports input voltages up to 36V and can drive load currents up to 1.5A or 2.5A. This converter delivers excellent light-load efficiency and output accuracy in a compact solution size. Features such as a RESET flag and precision enable pin provide a flexible, easy-to-use solution for a wide range of applications. Automatic frequency foldback at light load improves efficiency while maintaining tight load regulation. The device integrates many functions to eliminate external components and offers a pin arrangement optimized for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limiting, and hiccup short-circuit protection. The LM636x5-Q1 is available in a 16-pin HTSSOP power package with PowerPAD and a 12-pin WSON power package.

Applications

• Automotive infotainment systems and instrument clusters
• Automotive body electronics and lighting
• Automotive ADAS

Key features

• AEC-Q100 qualified for automotive applications
• Device temperature grade 1: -40°C to +125°C ambient operating temperature range
• Functional Safety documentation available to support functional safety system design for automotive system requirements
• Input voltage range: 3.5V to 36V
• Short minimum on-time: 50ns
• Good EMI performance with pseudo-random spread spectrum, compliant with CISPR 25
• Low quiescent operating current: 23μA
• Junction temperature range: -40°C to +150°C
• High design flexibility
• Pin-selectable VOUT: 3.3V, 5V, adjustable 1V to 20V
• Pin-compatible with LM63610 and LM63635 (1A, 3.25A)
• Pin-selectable frequency: 400kHz, 2.1MHz, adjustable 250kHz to 2200kHz
• Pin-selectable FPWM, auto, and synchronous modes
• TSSOP: thermally enhanced package
• WSON: space-constrained applications
• Small solution size
