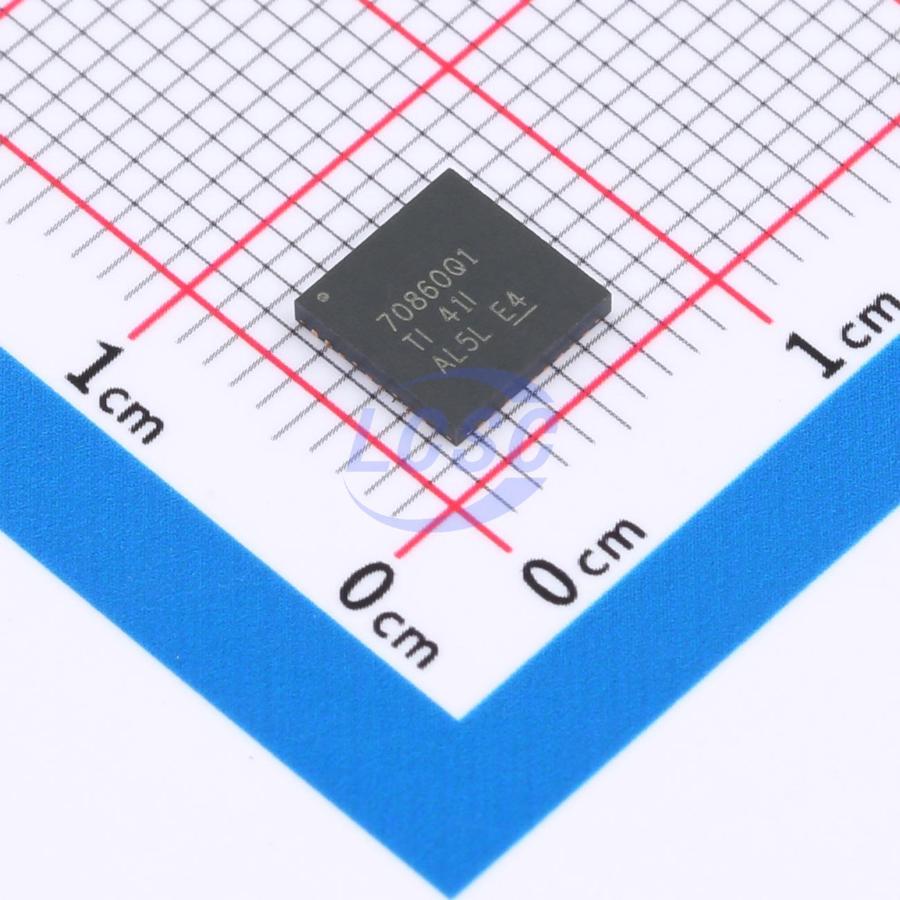

LM70860QRRXRQ1
Buck Switching Regulator IC Adjustable 0.8V~55V 1 Output 6A QFN-29(6x6)
QFN-29(6x6)ROHS3 CompliantActive
80V, 8A/6A/4A automotive-grade high-power-density and high-efficiency step-down converters
- Manufacturer
- TI
- Manufacturer part #
- LM70860QRRXRQ1
- Store part #
- C34490647
- Package / case
- QFN-29(6x6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
151 in stock
#C34490647
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹905.43 | ₹905.43 |
| 10+ | ₹771.71 | ₹7,717.10 |
| 30+ | ₹690.38 | ₹20,711.40 |
| 100+ | ₹622.11 | ₹62,211.00 |
1 × ₹905.43
₹905.43
excl. GST
₹1,068.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM70860QRRXRQ1
₹905.43 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 200kHz~2.2MHz
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);External compensation;Light load efficient mode;Operating status indication;Overcurrent Protection;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~80V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 6A
- Output Voltage
- 800mV~55V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM70880QRRXRQ1#C31375401TI · VQFN-29(6x6) | TI | VQFN-29(6x6) | 1,670 | ₹865.10 · 1,670 in stock | View |
