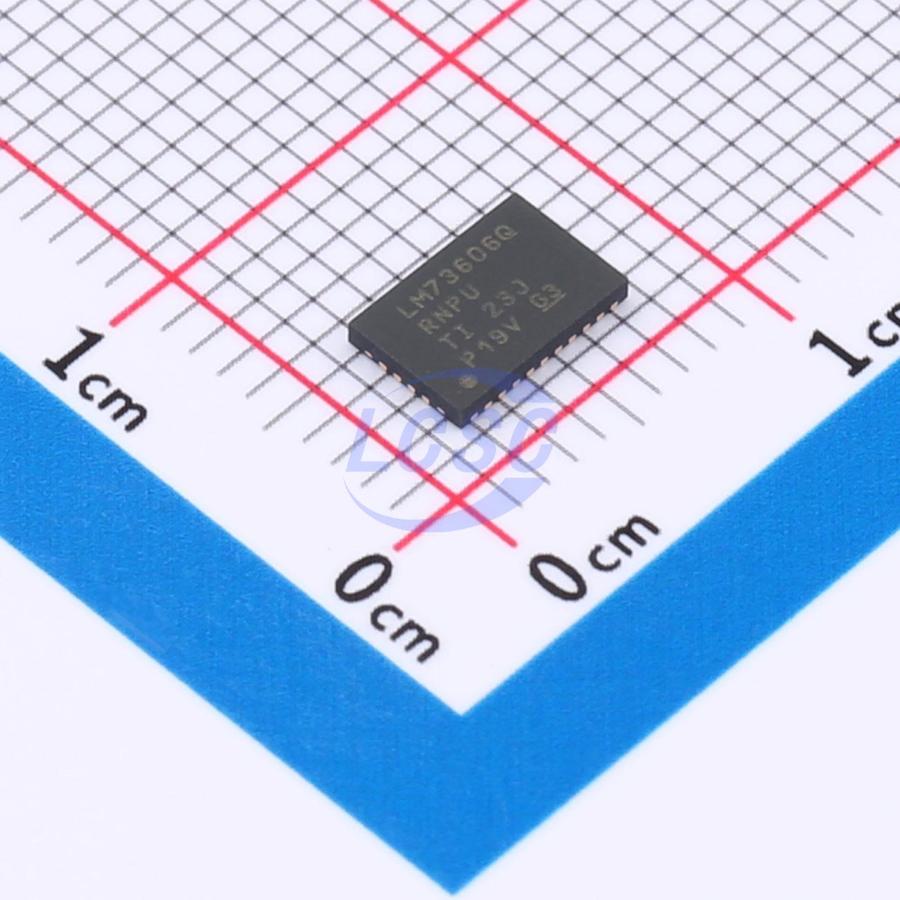

LM73606QURNPRQ1

Buck Switching Regulator IC Adjustable 1 Output 6A WQFN-30(6x4)

WQFN-30(6x4)ROHS CompliantActive

3.5V to 36V, 5A or 6A synchronous buck converters

Manufacturer: TI
Manufacturer part #: LM73606QURNPRQ1
Store part #: C3198272
Package / case: WQFN-30(6x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,422 in stock

#C3198272

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
1+	₹291.26	₹291.26
10+	₹265.41	₹2,654.10
30+	₹249.12	₹7,473.60
100+	₹232.40	₹23,240.00
500+	₹224.80	₹1,12,400.00
1,000+	₹221.54	₹2,21,540.00

Quantity (min 1)

1 × ₹291.26

₹291.26

excl. GST

₹343.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM73606QURNPRQ1

₹291.26 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Frequency synchronization;Cycle-by-cycle current limiting;Hiccup current limiting;Operating status indication;Light load efficient mode;Output voltage tracking
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.5V~36V
Switch tube (built-in/external): Built-in
Output Current: 6A
Output Voltage: 1V~34.2V
Quiescent Current: 15uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.342 g

Overview

The LM73605-Q1/LM73606-Q1 series are easy-to-use synchronous step-down DC/DC converters operating from a 3.5V to 36V supply voltage, capable of driving load currents up to 5A (LM73605-Q1) or 6A (LM73606-Q1). The solution offers an extremely small footprint with excellent efficiency and output accuracy. Peak current mode control is employed. Additional features including adjustable switching frequency, external clock synchronization, power-good flag, precision enable, adjustable soft-start, and tracking provide a flexible and easy-to-use solution for a wide range of applications. Automatic frequency foldback at light loads and an optional external bias supply improve efficiency across the full load range. The device family requires very few external components, and the pin layout is designed to simplify PCB layout while delivering excellent EMI and thermal performance. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limiting, and hiccup short-circuit protection. The LM73605-Q1 and LM73606-Q1 devices are pin-to-pin compatible, enabling easy current scaling.

Applications

Automotive distributed power applications
Battery-powered applications
General-purpose wide input voltage applications

Key features

AEC-Q100 qualified for automotive applications
Device temperature grade 1: -40°C to +125°C ambient operating temperature range
Device HBM ESD classification level 2kV
Device CDM ESD classification level C5
Wettable flank QFN package (WQFN)
Low EMI and low switching noise
Low quiescent current: 0.8μA (typical) in shutdown mode, 15μA (typical) in no-load active mode
Wide conversion range: tON-MIN = 60ns (typical), tOFF-MIN = 70ns (typical)
Low MOSFET on-resistance
Adjustable frequency range: 350kHz to 2.2MHz
Pin-selectable auto mode or forced PWM mode
Pre-biased load startup, fixed or adjustable soft-start time and tracking
Synchronizable to external clock, integrated compensation, power-good flag, and precision enable
Use LM73605-Q1 or LM73606-Q1 with WEBENCH Power Designer to create custom designs
