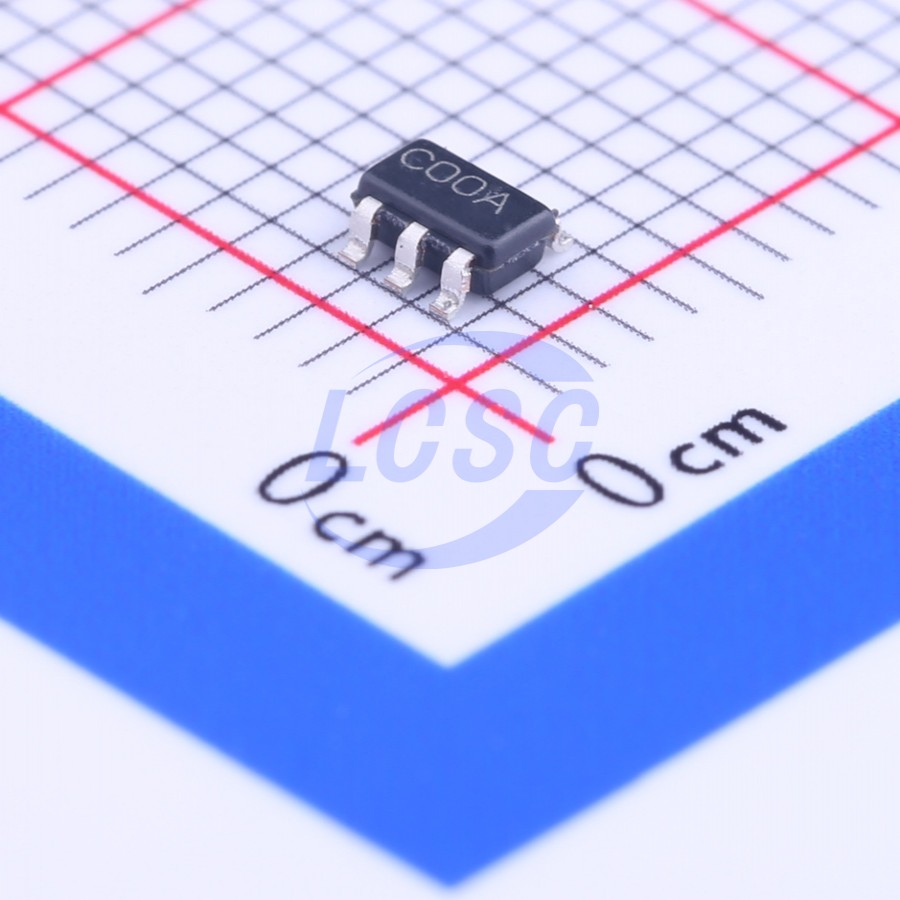

LMC7211AIM5X/NOPB
1 7uA 3mV Rail-to-rail input SOT-23-5 Comparators RoHS
Tiny CMOS Comparator with Rail-to-Rail Input and Push-Pull Output
- Manufacturer
- TI
- Manufacturer part #
- LMC7211AIM5X/NOPB
- Store part #
- C140252
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,179 in stock
#C140252
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.12 | ₹145.12 |
| 10+ | ₹119.64 | ₹1,196.40 |
| 30+ | ₹105.60 | ₹3,168.00 |
| 100+ | ₹89.63 | ₹8,963.00 |
| 500+ | ₹82.71 | ₹41,355.00 |
| 1,000+ | ₹79.47 | ₹79,470.00 |
1 × ₹145.12
₹145.12
excl. GST
₹171.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMC7211AIM5X/NOPB
₹145.12 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 0.02pA
- Output Mode
- TTL
- Operating Temperature
- -40℃~+85℃
- Features
- Fail-safe function;Built-in hysteresis
- Ib - Input Bias Current
- 0.04pA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Propagation Delay(tpd)
- 4us
- Quiescent Current(Iq)
- 7uA
- Vos - Input Offset Voltage
- 3mV
- Maximum Power Supply Range (Vdd-Vss)
- 16V
- Rail to Rail
- Rail-to-rail input
- Response Time (tr)
- 4us
- Single Supply
- 2.7V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The LMC7211 is a micropower CMOS comparator available in the space saving SOT23-5 package. This makes the comparator ideal for space and weight critical designs. The LMC7211 is supplied in two offset voltage grades, 5 mV and 15 mV. The main benefits of the Tiny package are most apparent in small portable electronic devices, such as mobile phones, pagers, notebook computers, personal digital assistants, and PCMCIA cards. The rail-to-rail input voltage makes the LMC7211 a good choice for sensor interfacing, such as light detector circuits, optical and magnetic sensors, and alarm and status circuits. The Tiny Comparator's outside dimensions (length x width x height) of 3.05mm x 3.00mm x 1.43mm allow it to fit into tight spaces on PC boards.
Applications
- Battery Powered Products
- Notebooks and PDAs
- PCMCIA cards
- Mobile Communications
- Alarm and Security circuits
- Direct Sensor Interface
- Replaces amplifiers used as comparators with better performance and lower current
Key features
- Tiny SOT 23-5 package saves space
- Package is less than 1.43 mm thick
- Guaranteed specs at 2.7V, 5V, 15V supplies
- Typical supply current 7 μA at 5V
- Response time of 4 μs at 5V
- Push-pull output
- Input common-mode range beyond v- and v+
- Low input current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV7211AIDBVR#C2869171TI · SOT-23-5 | TI | SOT-23-5 | 186 | ₹225.68 · 186 in stock | View |
