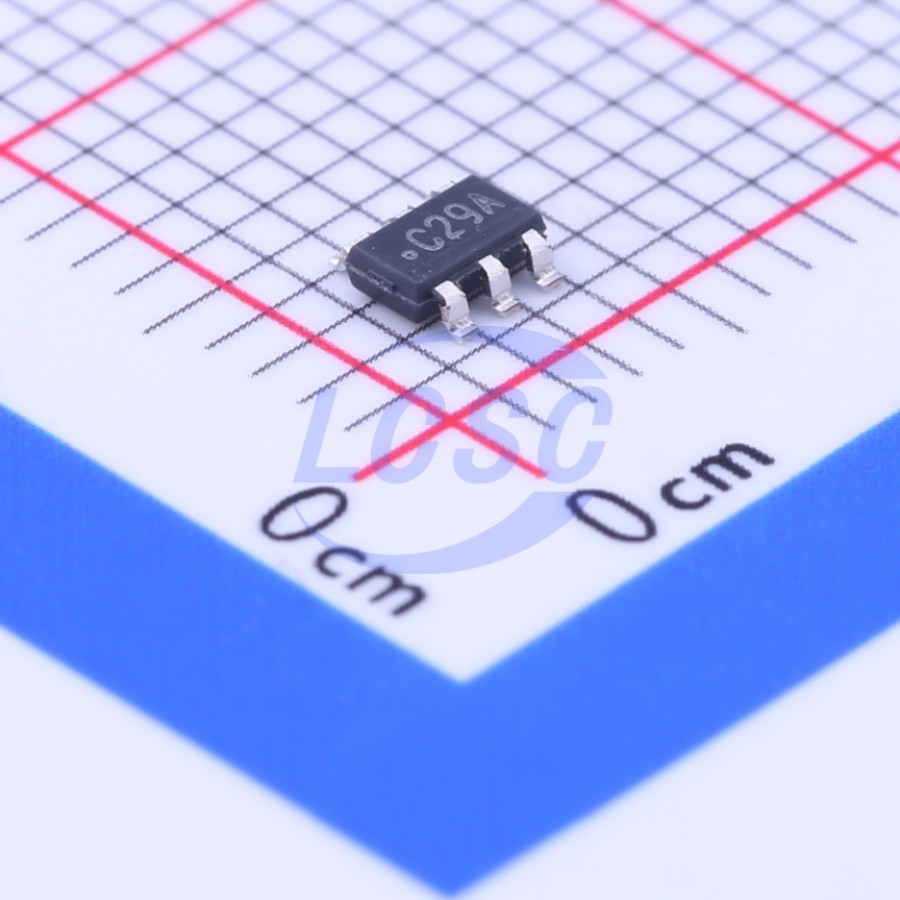

LMH7220MK/NOPB
1 6.8mA 9.5mV SOT-23-Thin-6 Comparators RoHS
High Speed Comparator with LVDS Output
- Manufacturer
- TI
- Manufacturer part #
- LMH7220MK/NOPB
- Store part #
- C206475
- Package / case
- SOT-23-Thin-6
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,366 in stock
#C206475
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹822.96 | ₹822.96 |
| 10+ | ₹707.59 | ₹7,075.90 |
| 30+ | ₹637.42 | ₹19,122.60 |
| 100+ | ₹578.32 | ₹57,832.00 |
1 × ₹822.96
₹822.96
excl. GST
₹971.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LMH7220MK/NOPB
₹822.96 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 500nA
- Output Mode
- LVDS
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 2.1uA
- Input Offset Voltage Drift(Vos TC)
- 50uV/℃
- Output Type
- Differential
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Propagation Delay(tpd)
- 2.9ns
- Quiescent Current(Iq)
- 6.8mA
- Vos - Input Offset Voltage
- 9.5mV
- Maximum Power Supply Range (Vdd-Vss)
- 15V
- Input Offset Current Drift (Ios TC)
- 2nA/℃
- Single Supply
- 2.7V~15V
- Response Time (tr)
- 0.6ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.5 g
Overview
The LMH7220 is a high speed, low power comparator with an operating supply voltage range of 2.7V to 12V. The LMH7220 has a differential, LVDS output, driving 325 mV into a 100Ω symmetrical transmission line. The LMH7220 has a 2.9 ns propagation delay and 0.6 ns rise and fall times while the supply current is only 6.8 mA at 5V (load current excluded). The LMH7220 inputs have a voltage range that extends 200 mV below ground, allowing ground sensing applications. The LMH7220 is available in the 6 - Pin SOT package. This package is ideal where space is a critical item.
Applications
- Acquisition Trigger
- Fast Differential Line Receiver
- Pulse Height Analyzer
- Peak Detector
- Pulse Width Modulator
- Remote Threshold Detection
- Oscilloscope Triggering
Key features
- Propagation Delay @ 100 mV Overdrive 2.9 ns
- Rise and Fall Times 0.6 ns
- Supply Voltage 2.7V to 12V
- Supply Current 6.8 mA
- Temperature Range -40°C to 125°C
- LVDS Output
