TIDatasheet (PDF)

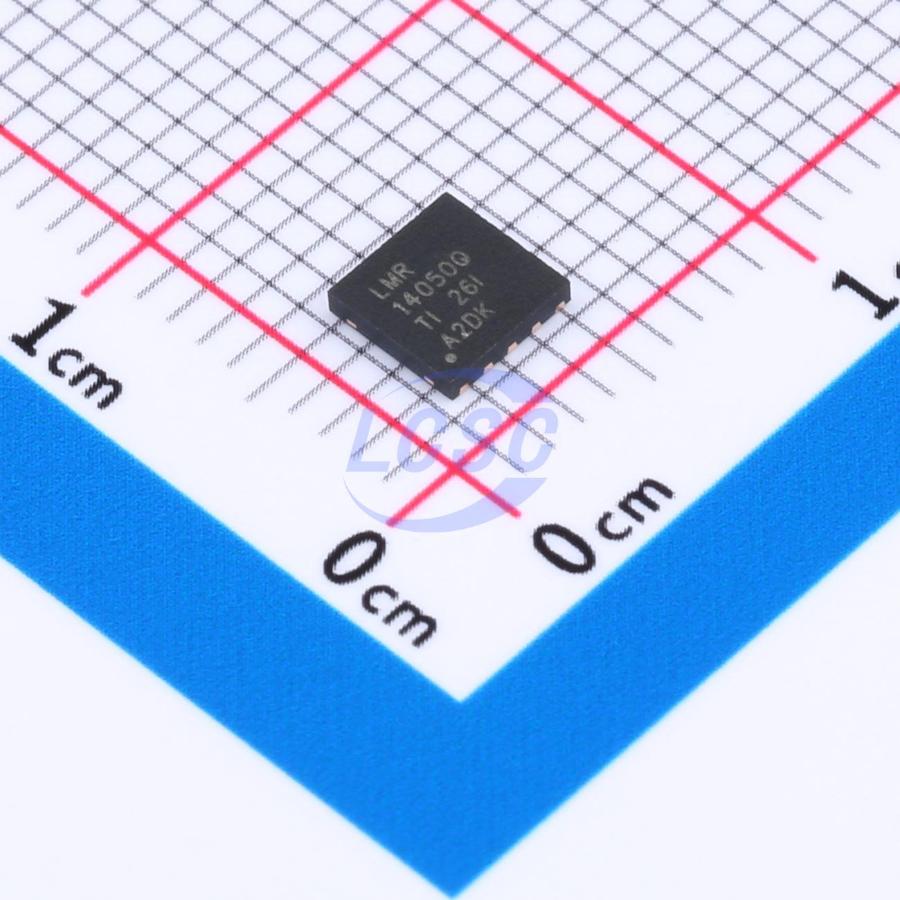

LMR14050QDPRRQ1
Buck Switching Regulator IC Adjustable 0.8V~28V 1 Output 5A WSON-10(4x4)
WSON-10(4x4)ROHS3 CompliantActive
40V, 5A step-down converter
- Manufacturer
- TI
- Manufacturer part #
- LMR14050QDPRRQ1
- Store part #
- C5219391
- Package / case
- WSON-10(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C5219391
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹286.48 | ₹286.48 |
| 10+ | ₹280.83 | ₹2,808.30 |
| 30+ | ₹276.92 | ₹8,307.60 |
| 100+ | ₹273.23 | ₹27,323.00 |
1 × ₹286.48
₹286.48
excl. GST
₹338.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMR14050QDPRRQ1
₹286.48 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 2.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Adjustable soft-start;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 5A
- Output Voltage
- 800mV~28V
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.092 g
