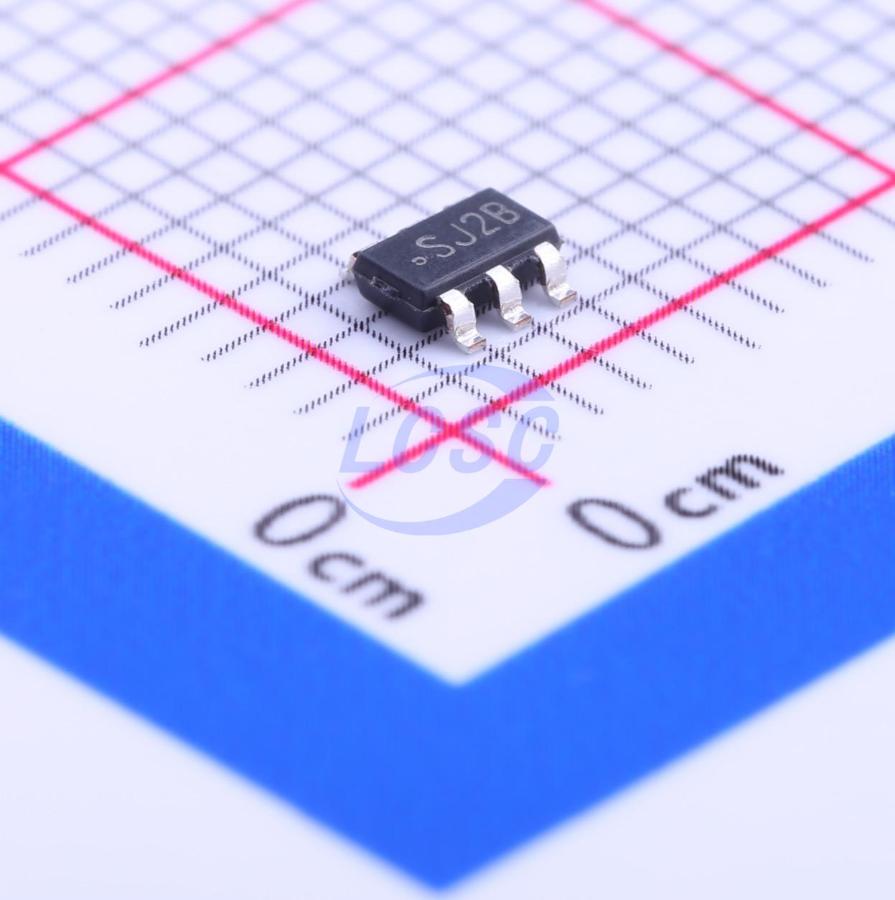

LMR14206XMKX/NOPB

1.25MHz Step-down type Adjustable 765mV~34V 600mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS3 CompliantActive

42V Input, 0.6A Output Buck DC-DC Converter

Manufacturer: TI
Manufacturer part #: LMR14206XMKX/NOPB
Store part #: C48239
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

28,505 in stock

#C48239

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
1+	₹86.22	₹86.22
10+	₹69.93	₹699.30
30+	₹61.68	₹1,850.40
100+	₹53.65	₹5,365.00
500+	₹48.86	₹24,430.00
1,000+	₹46.27	₹46,270.00

Quantity (min 1)

1 × ₹86.22

₹86.22

excl. GST

₹101.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMR14206XMKX/NOPB

₹86.22 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 1.25MHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection;Adjustable soft-start;Cycle-by-cycle current limiting
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~42V
Switch tube (built-in/external): Built-in
Output Voltage: 765mV~34V
Output Current: 600mA
Quiescent Current: 1.35mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.068 g

Overview

The LMR14206 is a PWM DC/DC buck (step-down) regulator. With a wide input range from 4.5V - 42V, they are suitable for a wide range of applications such as power conditioning from unregulated sources. They feature a low RDSON (0.9Ω typical) internal switch for maximum efficiency (85% typical). Operating frequency is fixed at 1.25 MHz allowing the use of small external components while still being able to have low output voltage ripple. Soft-start can be implemented using the shutdown pin with an external RC circuit allowing the user to tailor the softstart time to a specific application. The LMR14206 is optimized for up to 600 mA load current with a 0.765V nominal feedback voltage. Additional features include: thermal shutdown, VIN under-voltage lockout, and gate drive under-voltage lockout. The LMR14206 is available in a low profile 6-pin SOT package.

Applications

Point-of-Load Conversions from 5V, 12V, and 24V Rails
Space Constrained Applications
Battery Powered Equipment
Industrial Distributed Power Applications
Power Meters
Portable Hand-Held Instruments

Key features

Input Voltage Range of 4.5V to 42V
Output Voltage Range of 0.765V to 34V
Output Current up to 0.6A
1.25 MHz Switching Frequency
Low Shutdown Iq, 16 μA Typical
Short Circuit Protected
Internally Compensated
Soft-Start Function
Thin 6-Pin SOT Package (2.97 x 1.65 x 1mm)
Fully Enabled for WEBENCH Power Designer
