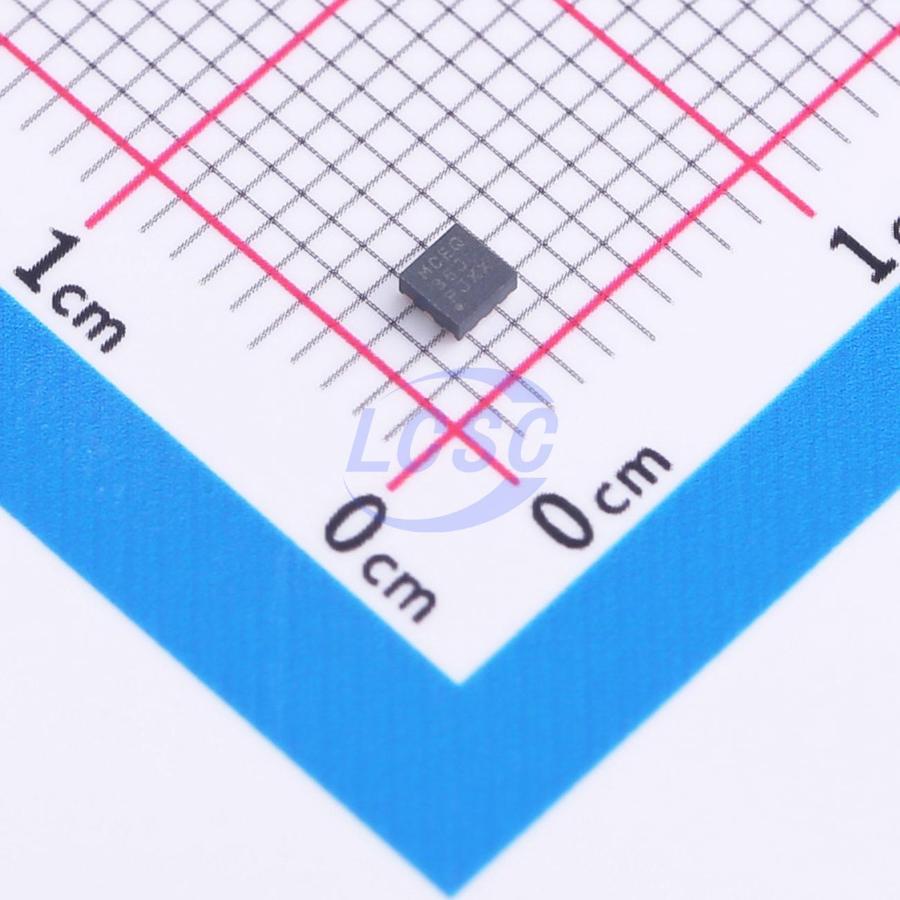

LMR36503MSCQRPERQ1

Buck Switching Regulator IC Adjustable 1 Output 300mA VQFN-9-HR(2x2)

VQFN-9-HR(2x2)ROHS3 CompliantActive

A synchronous buck converter optimized for size and light-load efficiency, operating from 3V to 65V with a 0.3A output.

Manufacturer: TI
Manufacturer part #: LMR36503MSCQRPERQ1
Store part #: C3190190
Package / case: VQFN-9-HR(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

60 in stock

#C3190190

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹515.84	₹515.84
10+	₹490.59	₹4,905.90
30+	₹475.35	₹14,260.50
100+	₹460.13	₹46,013.00
500+	₹453.15	₹2,26,575.00
1,000+	₹450.11	₹4,50,110.00

Quantity (min 1)

1 × ₹515.84

₹515.84

excl. GST

₹608.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMR36503MSCQRPERQ1

₹515.84 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Frequency - Switching: 2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;EMI optimization (spread spectrum);Built-in LDO regulator;Operating status indication;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~65V
Switch tube (built-in/external): Built-in
Output Current: 300mA
Quiescent Current: 18uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.087 g

Overview

LMR36503-Q1 is an ultra-compact 65V, 0.3A synchronous step-down DC/DC converter in a 2mm x 2mm HotRod package. This easy-to-use converter handles input voltage transients up to 70V, delivers excellent EMI performance, and supports fixed 3.3V, 5V, and other adjustable output voltages. LMR36503-Q1 employs a peak current mode control architecture with internal compensation to maintain stable operation and minimize output capacitance. The wide input operating voltage range enables normal operation under deep input voltage dropout conditions, making it an ideal choice for automotive applications subject to severe cold-crank pulses. The PGOOD flag in LMR36503-Q1 provides accurate output voltage status indication, eliminating the need for external monitors. Seamless transition from FPWM to PFM and ultra-low standby quiescent current allow LMR36503-Q1 to support higher system efficiency at light output loads. The MODE/SYNC pin variant facilitates synchronization of LMR36503-Q1 to an external clock. The LMR36503-Q1 RT pin variant offers a selection of appropriate resistors and supports external programming of the desired switching frequency. The comprehensive feature set of LMR36503-Q1 is designed to simplify implementation across a wide range of automotive end equipment.

Applications

Advanced Driver Assistance Systems (ADAS)
Body Electronics and Lighting
Infotainment Systems and Instrument Clusters

Key features

AEC-Q100 qualified for automotive applications: Device Temperature Grade 1: -40°C to +125°C, TA
Functional Safety capable
Documentation available to aid functional safety system design
Efficiency greater than 70% at 5mA
4μA IQ (switching) at VIN = 24V and VOUT = 3.3V (fixed output option)
Tiny solution size and low component cost
2mm×2mm HotRod package with wettable flanks
Internal compensation
Designed for automotive applications
Junction temperature range: -40°C to +150°C
Pseudo-random spread spectrum for CISPR 25 EMI compliance
Wide input voltage range: 3.0V (dropout threshold) to 65V
Adjustable, 3.3V, and 5V fixed output voltage options
Synchronizable with MODE/SYNC pin variants
Adjustable FSW: 200kHz to 2.2MHz (with RT pin variants)
Pin-compatible with LMR36506-Q1 (65V, 600mA)
