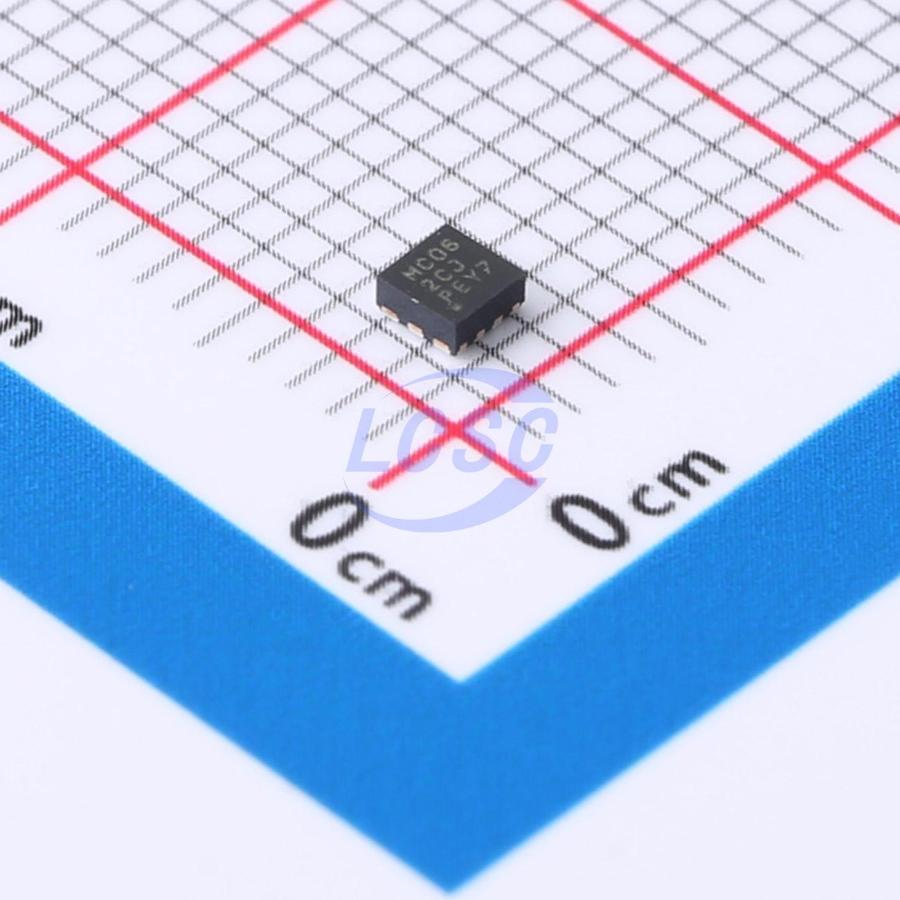

LMR36503R5RPER

LMR36503 is an ultra-compact 65V, 0.3A synchronous DC/DC buck converter in a 2mm x 2mm HotRod package. This easy-to-use converter handles input voltage transients up to 70V, delivers excellent EMI performance, and supports a fixed 5V output as well as other adjustable output voltages. This transient tolerance reduces the design effort required to protect against input overvoltage and meets the surge immunity requirements of IEC 61000-4-5. The LMR36503 employs a peak current mode control architecture with internal compensation to maintain stable operation and minimize output capacitance. By selecting an appropriate resistor between the RT pin and ground, the LMR36503 supports external programming of the switching frequency from 200kHz to 2.2MHz. The precision EN/UVLO feature enables precise control over device startup and shutdown. A power-good flag with built-in glitch filter and deglitch release provides a true indication of system status, eliminating the need for an external supervisor. The LMR36503's compact solution size and rich feature set simplify implementation across a wide range of industrial applications.

Applications

• Factory automation: field transmitters and process sensors
• Building automation: HVAC and fire safety
• Appliances: garden and power tools

Key features

• Designed for demanding industrial applications:
• Junction temperature range: -40°C to +150°C
• Input transient protection up to 70V
• Wide input voltage range: 3.0V (falling threshold) to 65V
• Low EMI and ultra-low switching node ringing
• Adjustable and 5V fixed output voltage options available
• Scalable industrial power supply:
• Pin-compatible with LMR36506 (65V, 600mA)
• Adjustable switching frequency: 200kHz to 2.2MHz (with RT pin variant)
• Reduced solution size and cost:
• Ultra-high power density with internal compensation and reduced external component count
• Ultra-compact 2mm×2mm HotRod package with wettable flanks
• High efficiency and low power dissipation across full load range:
• Peak efficiency greater than 90% at 1MHz (5VOUT adjustable)
• Very low quiescent current in no-load operation
• 4μA at VIN = 24V and VOUT = 3.3V (fixed output option)
