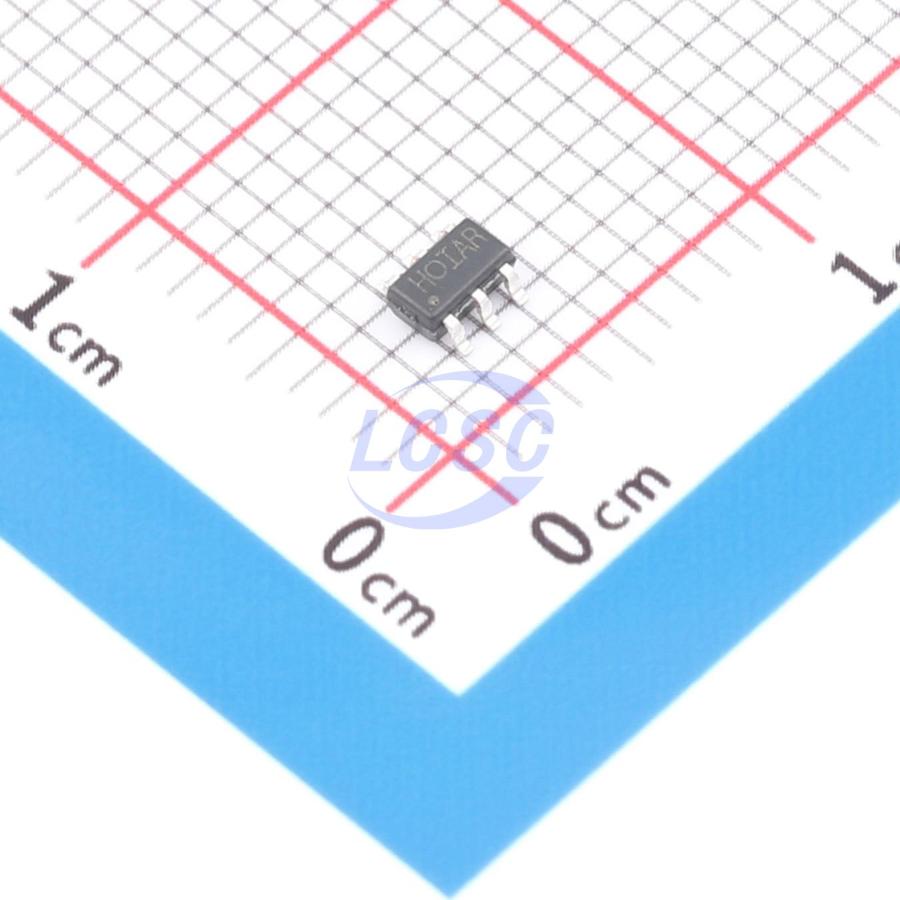

LMR50410XDBVR-MS
800kHz Step-down type Adjustable 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LMR50410XDBVR-MS
- Store part #
- C50385344
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,325 in stock
#C50385344
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.50 | ₹182.50 |
| 50+ | ₹28.84 | ₹1,442.00 |
| 150+ | ₹25.55 | ₹3,832.50 |
| 500+ | ₹21.46 | ₹10,730.00 |
| 3,000+ | ₹18.72 | ₹56,160.00 |
| 6,000+ | ₹17.62 | ₹1,05,720.00 |
5 × ₹36.50
₹182.50
excl. GST
₹215.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMR50410XDBVR-MS
₹182.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 800kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~36V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The LMR50410XDBVR-MS is a high-efficiency, synchronous step-down DC/DC regulator. Its wide input voltage range makes it suitable for a broad range of applications, such as power conditioning from unregulated sources. It features internal switches with low RDS(ON) (typical 250mΩ/150mΩ), enabling peak efficiency of up to 92% (typical). PSM mode is supported, and the fixed operating frequency of 800kHz allows the use of small external components while maintaining low output voltage ripple. With OVP functionality, the IC can withstand input voltages up to 40V. The LMR50410XDBVR-MS supports 1.2A continuous output current and features a 0.8V nominal feedback voltage. Additional features include thermal shutdown, VIN UVLO, and gate drive UVLO. The LMR50410XDBVR-MS is available in a thin SOT-23-6 package.
Applications
- Battery-powered devices
- Portable media players
- Industrial distributed power applications
- Portable handheld instruments
Key features
- Wide 4V to 36V operating input range
- Voltage rating: 40V
- 1.2A continuous output current
- 800kHz switching frequency
- Short-circuit protection with foldback mode
- Built-in overcurrent limiting
- Built-in overvoltage protection
- PSM mode support
- Internal soft-start
- 250mΩ/150mΩ low RDS(ON) internal power MOSFET
- Output adjustable from 0.8V
- No Schottky diode required
- Integrated internal compensation
- Thermal shutdown
- SOT23-6 package
- -40°C to +85°C temperature range
