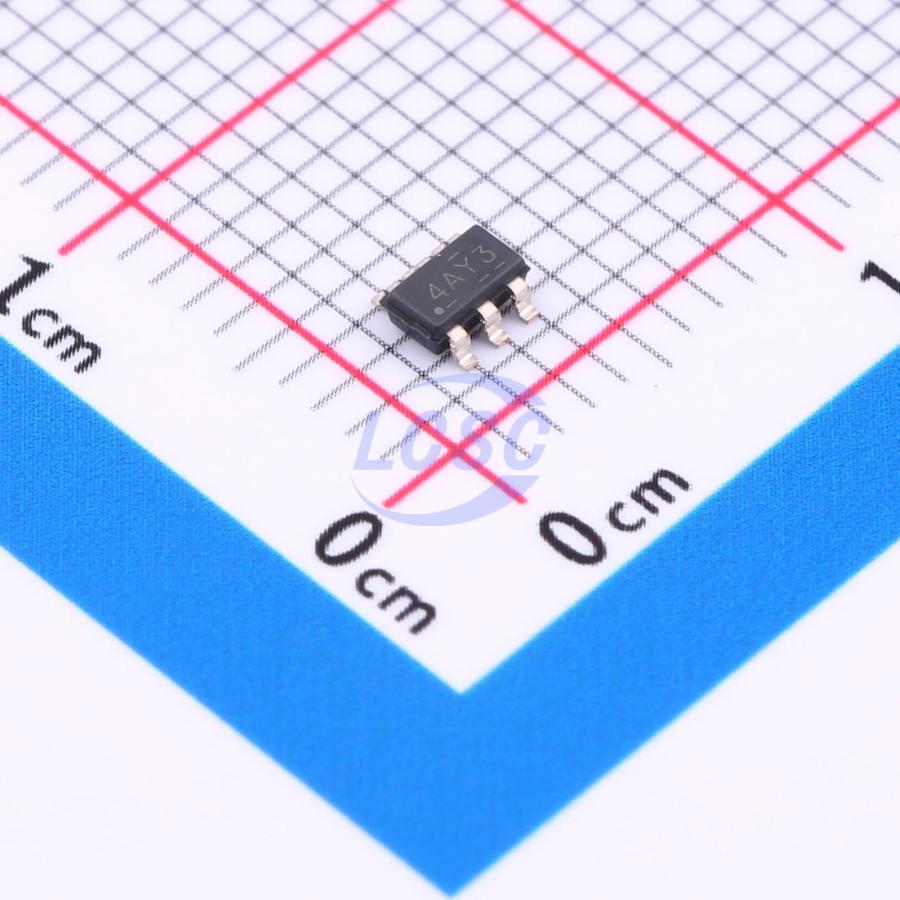

LMR50410Y3FQDBVRQ1

Buck Switching Regulator IC Fixed 3.3V 1 Output 1A SOT-23-6

SOT-23-6ROHS3 CompliantActive

4V to 36V, 1A step-down converter

Manufacturer: TI
Manufacturer part #: LMR50410Y3FQDBVRQ1
Store part #: C5219374
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,322 in stock

#C5219374

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹190.59	₹190.59
10+	₹167.82	₹1,678.20
30+	₹151.77	₹4,553.10
100+	₹137.04	₹13,704.00
500+	₹130.32	₹65,160.00
1,000+	₹127.71	₹1,27,710.00

Quantity (min 1)

1 × ₹190.59

₹190.59

excl. GST

₹224.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMR50410Y3FQDBVRQ1

₹190.59 for 1 + GST

Specifications

Operating Temperature: -40℃~+150℃@(TJ)
Frequency - Switching: 2.1MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Topology: Buck
Output Type: Fixed
Operating Voltage: 4V~36V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 1A
Quiescent Current: 80uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.026 g

Overview

LMR50410-Q1 is a simple, easy-to-use wide input voltage synchronous buck converter capable of driving load currents up to 1A. The device features a wide input range of 4V to 36V, making it suitable for a variety of automotive applications requiring power regulation from unregulated sources. The LMR50410-Q1 operates at a switching frequency of 2.1MHz, enabling the use of relatively small inductors for an optimized solution size. It is available in a PFM version for high efficiency at light loads and an FPWM version for constant frequency operation with low output voltage ripple across the full load range. Soft-start and compensation circuits are implemented internally to minimize the number of external components required. The device features built-in protection functions, including cycle-by-cycle current limiting, discontinuous mode short-circuit protection, and thermal shutdown under excessive power dissipation conditions. The LMR50410-Q1 is available in a SOT-23-6 package.

Applications

Body electronics and lighting
Infotainment systems and instrument clusters
ADAS
General-purpose wide input voltage power supply

Key features

AEC-Q100 qualified, Grade 1: -40°C to 125°C ambient operating temperature range
Functional Safety documentation available to aid in functional safety system design, dedicated to harsh automotive applications
Input voltage range: 4V to 36V
1A continuous output current
Minimum on-time: 60ns
2.1MHz fixed switching frequency
Junction temperature range: -40°C to 150°C
98% maximum duty cycle
Monotonic startup with pre-biased output
Internal short-circuit protection with hiccup mode
±1% tolerance voltage reference
Precision enable pin
Small and easy-to-use solution
Integrated synchronous rectification
Built-in compensation for ease of use
SOT-23-6 package
Pin-to-pin compatible with TPS560430-Q1
Multiple options in pin-to-pin compatible packages
PFM and forced PWM (FPWM) options
3.3V and 5V fixed output options
Use LMR50410-Q1 with WEBENCH Power Designer to create a customized design
