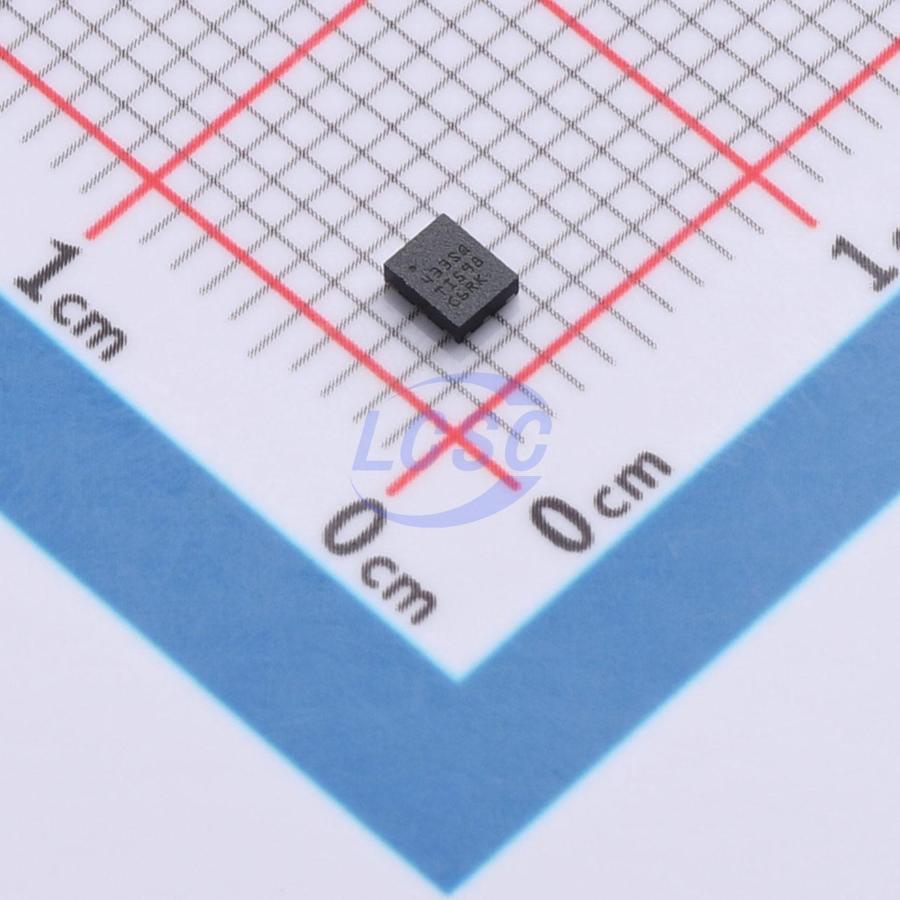

LMR604303SRAKRQ1

LMR60420-Q1 is a 3V to 36V (42V transient), 2A synchronous buck converter for automotive applications. LMR60420-Q1 offers a spread-spectrum variant in an ultra-compact 2.5mm × 2mm HotRod QFN-9 package with solderable lead edges that reduce inductance and enable low EMI performance, helping automotive and other noise-sensitive designs achieve certification. All device variants support 1V to 20V output voltage by connecting a resistive voltage divider between the output voltage node, feedback, and ground. Each variant also supports a fixed output voltage by connecting the output voltage node directly to the feedback pin. The device comparison table provides details on fixed output voltage options. The current-mode control architecture with a 30ns minimum on-time enables high conversion ratios at high frequency, simplified loop compensation, fast transient response, and excellent load and line regulation. An open-drain power-good output facilitates power sequencing requirements. The MODE/SYNC pin on LMR60420-Q1 allows users to select different operating modes. Forced PWM (FPWM) mode maintains a constant switching frequency under varying loads, while Auto mode enables seamless switching between PWM and PFM. In Auto mode, LMR60420-Q1 draws only 5μA of quiescent current, ensuring high efficiency across all load conditions. Minimal external components enable a compact PCB layout. LMR60420-Q1 is part of a family of pin-compatible devices with current ratings from 0.6A to 6A.

Applications

• Automotive camera applications
• Automotive driver assistance systems
• Automotive body applications

Key features

• AEC-Q100 qualified for automotive applications
• Device temperature grade 1: ambient operating temperature range –40°C to 125°C
• Functional safety capable
• Documentation available to aid functional safety system design
• Wide operating input voltage: 3V to 36V (absolute maximum 42V)
• Ultra-low quiescent current
• Shutdown current: 0.65μA
• No-load standby current: 5μA
• Pin-programmable output voltage options with fixed 3.3V/ADJ and 5V/ADJ
• Adjustable output voltage range: 1V to 20V
• Low minimum on-time (typical 30ns)
• Designed for low EMI requirements
• Aids compliance with CISPR 25 Class 5
• Low-inductance HotRod QFN package
• Spread spectrum option available
• Programmable switching frequency range: 200kHz to 2.2MHz
• Supports FPWM, PFM, or external frequency synchronization
• Designed for scalable power supply
• Pin-compatible with LMR60406-Q1, LMR60410-Q1, LMR60430-Q1, and LMR60440-Q1
• Power good output for power sequencing
