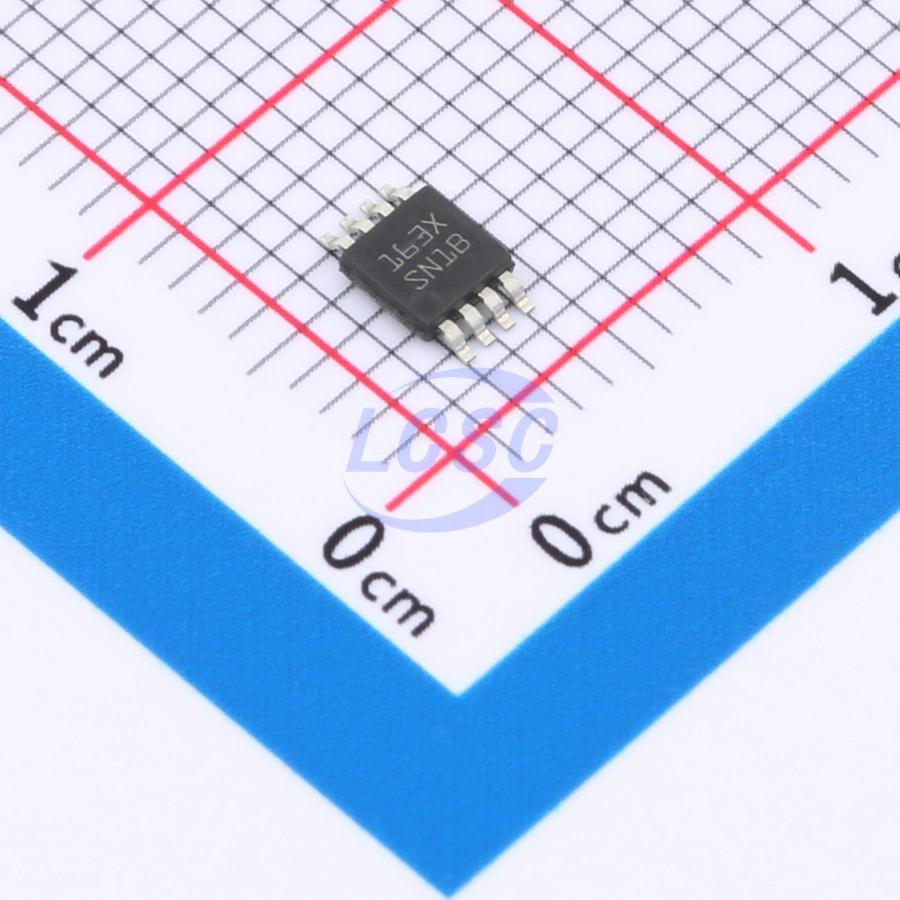

LMR61428XMM/NOPB

300kHz~2MHz Boost Adjustable 1.24V~14V 2.85A VSSOP-8 Voltage Regulators - DC DC Switching Regulators RoHS

VSSOP-8ROHS3 CompliantActive

SIMPLE SWITCHER 14Vout 2.85A Step-Up Voltage Regulator

Manufacturer: TI
Manufacturer part #: LMR61428XMM/NOPB
Store part #: C2876478
Package / case: VSSOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

71 in stock

#C2876478

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹301.38	₹301.38
200+	₹130.84	₹26,168.00
500+	₹127.06	₹63,530.00
1,000+	₹125.20	₹1,25,200.00

Quantity (min 1)

1 × ₹301.38

₹301.38

excl. GST

₹355.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

LMR61428XMM/NOPB

₹301.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 300kHz~2MHz
Function: Boost
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Light load efficient mode
Output Type: Adjustable
Topology: Boost;SEPIC
Operating Voltage: 1.2V~14V
Switch tube (built-in/external): Built-in
Output Voltage: 1.24V~14V
Output Current: 2.85A
Quiescent Current: 80uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.35 g

Overview

The LMR61428 is a step-up DC-DC switching regulator for battery-powered and low input voltage systems that can achieve efficiencies up to 90%. It has a wide input voltage range from 1.2V to 14V and a possible regulated output voltage range of 1.24V to 14V. It has an internal 0.17Ω N-Channel MOSFET power switch. The high switching frequency of up to 2MHz of the LMR61428 allows for tiny surface mount inductors and capacitors. Because of the unique constant-dutycycle gated oscillator topology very high efficiencies are realized over a wide load range. The supply current is reduced to 80μA because of the BiCMOS process technology. In the shutdown mode, the supply current is less than 2.5μA. The LMR61428 is available in a VSSOP-8 package. The LMR61428 is designed to provide step-up DC-DC voltage regulation in battery-powered and low-input voltage systems. It combines a step-up switching regulator, N-channel power MOSFET, built-in current limit, thermal limit, and voltage reference in a single 8-pin VSSOP package. The switching DC-DC regulator boosts an input voltage between 1.2V and 14V to a regulated output voltage between 1.24V and 14V that is limited by a fixed maximum duty cylcle of 70%. The LMR61428 starts from a low 1.1V input and remains operational down to 0.65V. This device is optimized for use in cellular phones and other applications requiring a small size, low profile, as well as low quiescent current for maximum battery life during stand-by and shutdown. A high-efficiency gatedoscillator topology offers an output of up to 1A. Additional features include a built-in peak switch current limit, and thermal protection circuitry.
