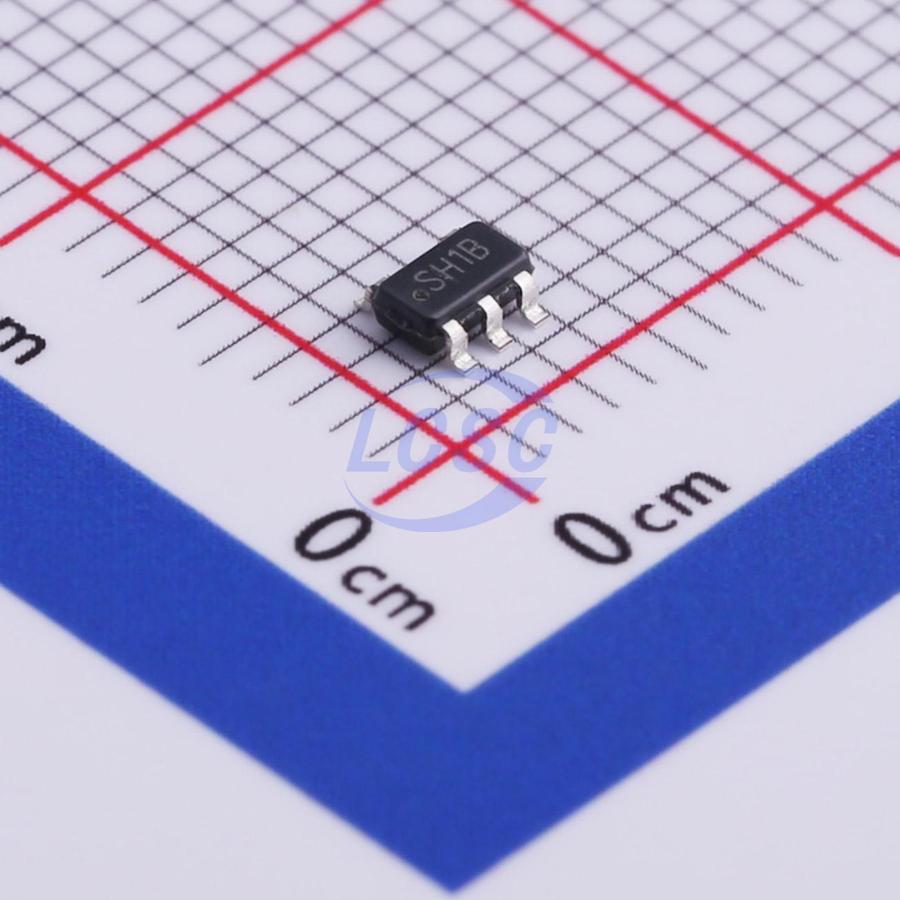

LMR62014XMFX/NOPB

The LMR62014 switching regulator is a current-mode boost converter operating at fixed frequency of 1.6 MHz. The use of SOT-23 package, made possible by the minimal power loss of the internal 1.4A switch, and use of small inductors and capacitors result in the industry's highest power density. The LMR62014 is capable of greater than 90% duty cycle, making it ideal for boosting to voltages up to 20V. These parts have a logic-level shutdown pin that can be used to reduce quiescent current and extend battery life. Protection is provided through cycle-by-cycle current limiting and thermal shutdown. Internal compensation simplifies design and reduces component count.

Applications

• Boost Conversions from 3.3V, 5V, and 12V Rails
• Space Constrained Applications
• Embedded Systems
• LCD Displays
• LED Applications

Key features

• Input Voltage Range of 2.7V to 14V
• Output Voltage up to 20V
• Switch Current up to 1.4A
• 1.6 MHz Switching Frequency
• Low Shutdown Iq, <1 μA
• Cycle-by-Cycle Current Limiting
• Internally Compensated
• 5-Pin SOT-23 Packaging (2.92×2.84×1.08mm)
• Fully Enabled for WEBENCH Power Designer
