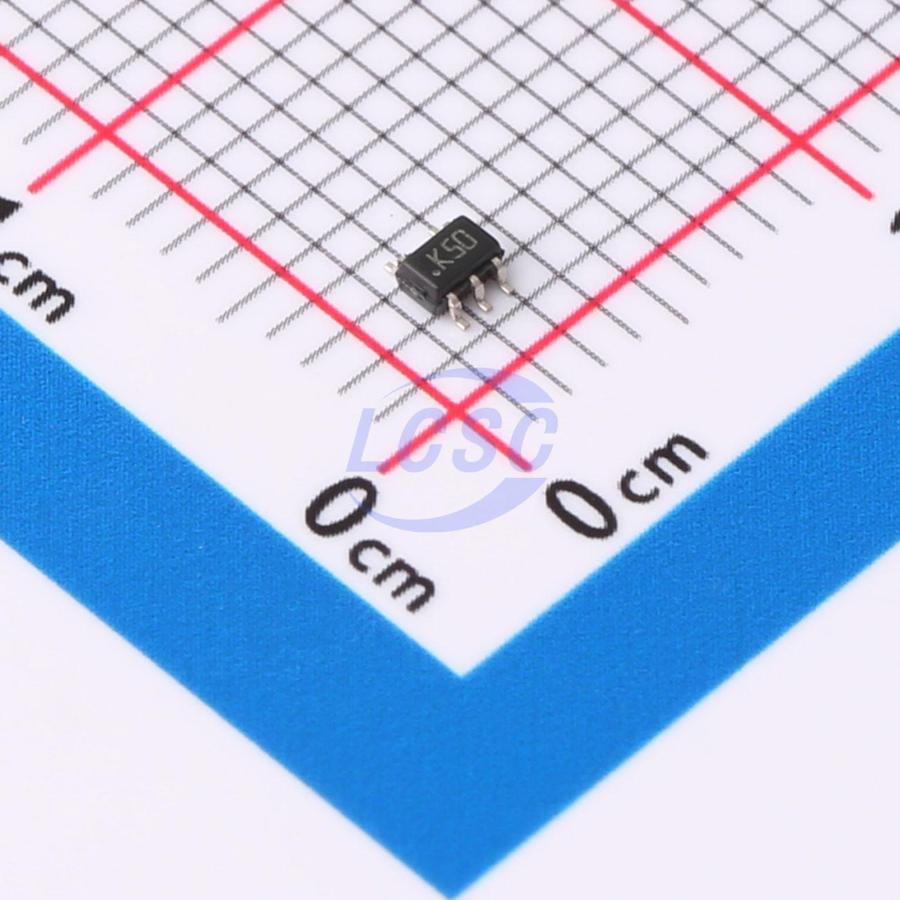

LMV331ICT
1 100uA 7mV SC-70-5 Comparators RoHS
General-purpose Low Voltage Comparators
- Manufacturer
- ST
- Manufacturer part #
- LMV331ICT
- Store part #
- C2802549
- Package / case
- SC-70-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,600 in stock
#C2802549
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.98 | ₹209.90 |
| 50+ | ₹34.72 | ₹1,736.00 |
| 150+ | ₹31.61 | ₹4,741.50 |
| 500+ | ₹27.72 | ₹13,860.00 |
| 3,000+ | ₹25.98 | ₹77,940.00 |
| 6,000+ | ₹24.95 | ₹1,49,700.00 |
5 × ₹41.98
₹209.90
excl. GST
₹247.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV331ICT
₹209.90 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 250nA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 550ns
- Quiescent Current(Iq)
- 100uA
- Vos - Input Offset Voltage
- 7mV
- Single Supply
- 2.7V~5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.016 g
Overview
The LMV331, LMV393 and LMV339 are the single/dual/quad and low voltage versions of the industry standard LM339 and LM393. They can operate with a supply voltage ranging from 2.7 to 5 V, and exhibit a lower current consumption than their predecessors LM339 and LM393. These devices are a perfect choice for low-voltage applications. The LMV3xx are available in tiny packages, making them ideal for applications where space saving is a constraint. The devices are designed to operate in the temperature range of -40°C to +85°C and are suitable for a variety of applications.
Applications
- Mobile phones
- Notebooks and PDAs Battery supplied electronics
- General-purpose portable devices
- General-purpose low voltage applications
Key features
- Supply operation from 2.7 to 5 V
- Low current consumption: 20 μA
- Input common mode range includes ground
- Wide temperature range: -40°C to +85°C
- Low output saturation voltage
- Propagation delay: 200 ns
- Open drain output
- ESD tolerance: 2 kV HBM / 200 V MM
- SMD packages
