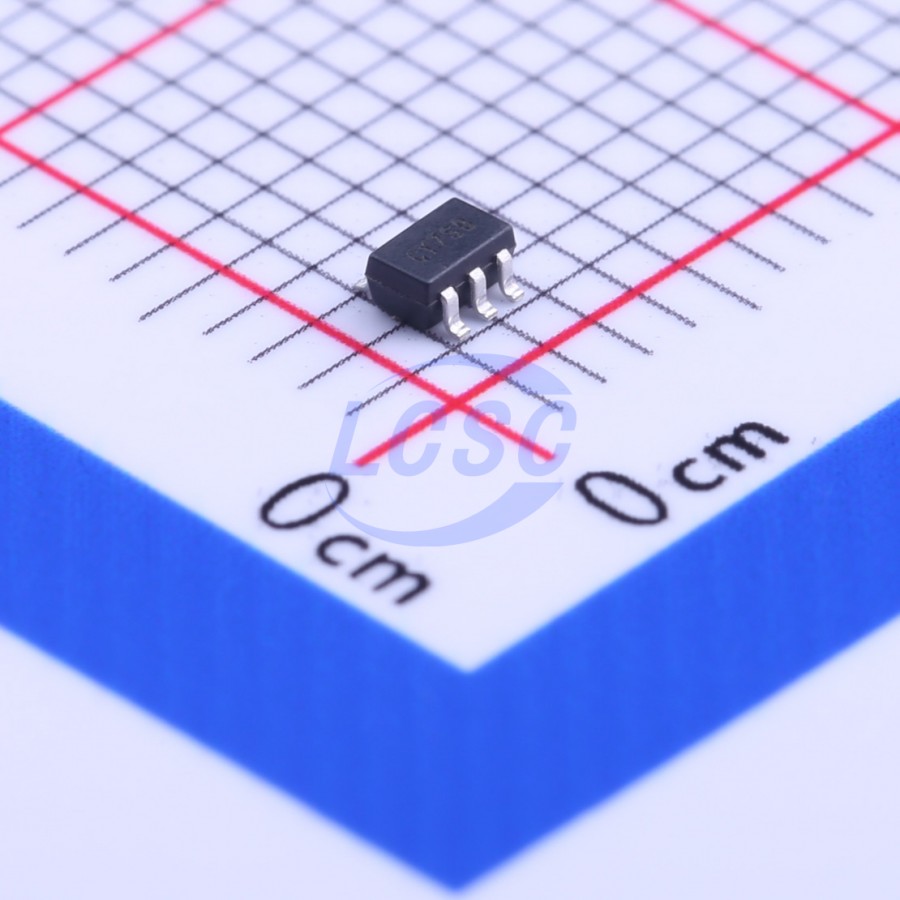

LMV331SE-7
1 40uA 1.7mV SOT-353 Comparators RoHS
General Purpose Low Voltage Comparator
- Manufacturer
- DIODES
- Manufacturer part #
- LMV331SE-7
- Store part #
- C151353
- Package / case
- SOT-353
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,251 in stock
#C151353
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.01 | ₹63.01 |
| 10+ | ₹49.11 | ₹491.10 |
| 30+ | ₹43.02 | ₹1,290.60 |
| 100+ | ₹35.64 | ₹3,564.00 |
| 500+ | ₹32.37 | ₹16,185.00 |
| 1,000+ | ₹30.42 | ₹30,420.00 |
1 × ₹63.01
₹63.01
excl. GST
₹74.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV331SE-7
₹63.01 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Output Mode
- CMOS;TTL
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10nA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 350ns
- Quiescent Current(Iq)
- 40uA
- Vos - Input Offset Voltage
- 1.7mV
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.051 g
Overview
The LMV331/LMV393 series are low-voltage, (2.7V to 5.5V) single and dual comparators, which are designed to effectively reduce cost and space at low-voltage levels. These devices offer specifications that meet or exceed the familiar LM331/LM393 devices operating with a lower supply voltage and consuming a far lower supply current. The LMV331 is available in 5-Pin SOT353/SOT25 packages that reduce space on PC boards and portable electronic devices. LMV393 is available in industry standard SOP-8 and MSOP-8 packages. LMV331/LMV393 are low-voltage single/dual general- purpose comparators. They have a single supply operating voltage range from 2.7V to 5.5V; the common mode input voltage range extends from -0.1V below the negative supply to within 0.8V of the positive supply. The LMV331/393 series is built using the BiCMOS process with bipolar input and output stages for improved noise performance. It is a costeffective solution for portable consumer products where space, low voltage, low power and price are the primary specification in circuit design.
Applications
- Mobile Communications
- Battery Powered Devices
- Notebooks and PDA’s
- General Purpose Low-Voltage Applications
- General Purpose Portable Devices
Key features
- Guaranteed 2.7V and 5.5V performance
- Operating temperature range (-40°C to +125°C)
- Low supply current 40μA/Comparator Typ
- Input Common Mode Voltage Range includes ground
- Open Collector Output for Maximums Flexibility
- SOT353, SOT25, MSOP-8, SO-8: Available in “Green” Molding Compound (No Br, Sb)
- Totally Lead-Free & Fully RoHS Compliant, Halogen and Antimony Free. “Green” Device
