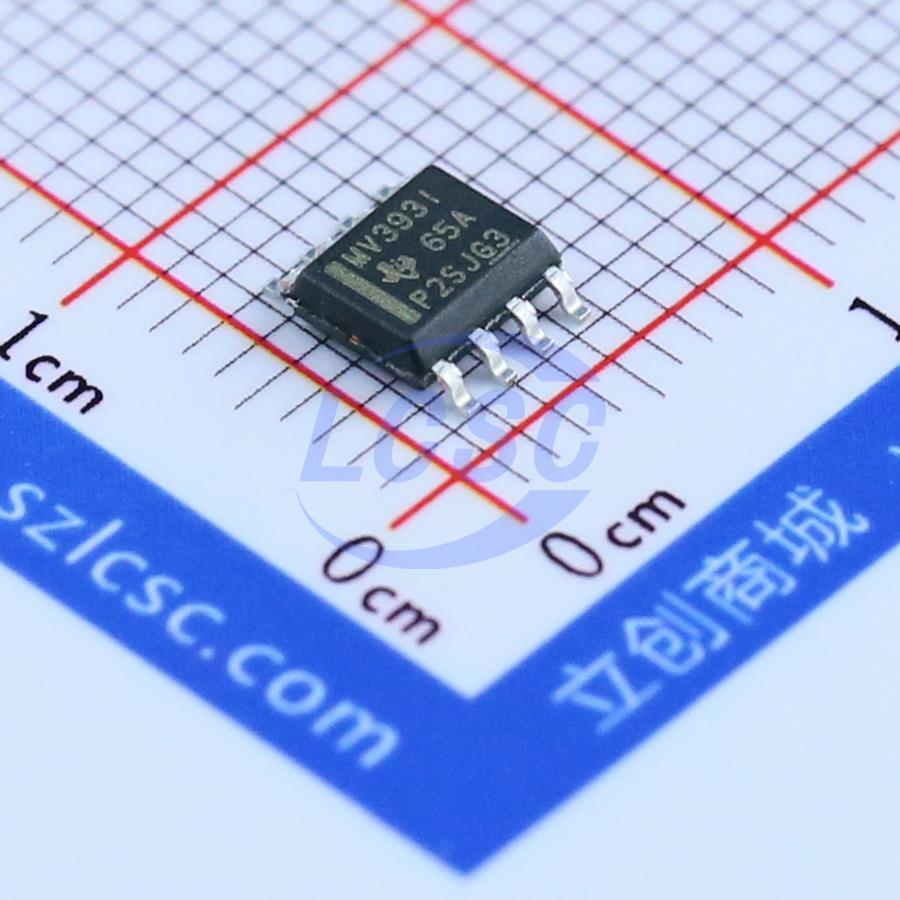

LMV393IDR
2 70uA 1.7mV SOIC-8 Comparators RoHS
GENERAL-PURPOSE LOW-VOLTAGE COMPARATORS
- Manufacturer
- TI
- Manufacturer part #
- LMV393IDR
- Store part #
- C7984
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,180 in stock
#C7984
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.29 | ₹251.45 |
| 50+ | ₹39.33 | ₹1,966.50 |
| 150+ | ₹34.65 | ₹5,197.50 |
| 500+ | ₹28.79 | ₹14,395.00 |
| 2,500+ | ₹24.09 | ₹60,225.00 |
| 5,000+ | ₹22.52 | ₹1,12,600.00 |
5 × ₹50.29
₹251.45
excl. GST
₹296.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV393IDR
₹251.45 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 25nA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 350ns
- Quiescent Current(Iq)
- 70uA
- Vos - Input Offset Voltage
- 1.7mV
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.173 g
Overview
The LMV393 and LMV339 devices are low-voltage (2.7 V to 5.5 V) versions of the dual and quad comparators, LM393 and LM339, which operate from 5 V to 30 V. The LMV331 is the single-comparator version. The LMV331, LMV339, and LMV393 are cost-effective solutions for applications where low-voltage operation, low power, space saving, and price are the primary specifications in circuit design for portable consumer products. These devices offer specifications that meet or exceed the familiar LM339 and LM393 devices at a fraction of the supply current.
Key features
- 2.7-V and 5-V Performance
- Low Supply Current LMV331... 130 μA Typ LMV393... 210 μA Typ LMV339... 410 μA Typ
- Input Common-Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 200 mV Typical
- Open-Collector Output for Maximum Flexibility
