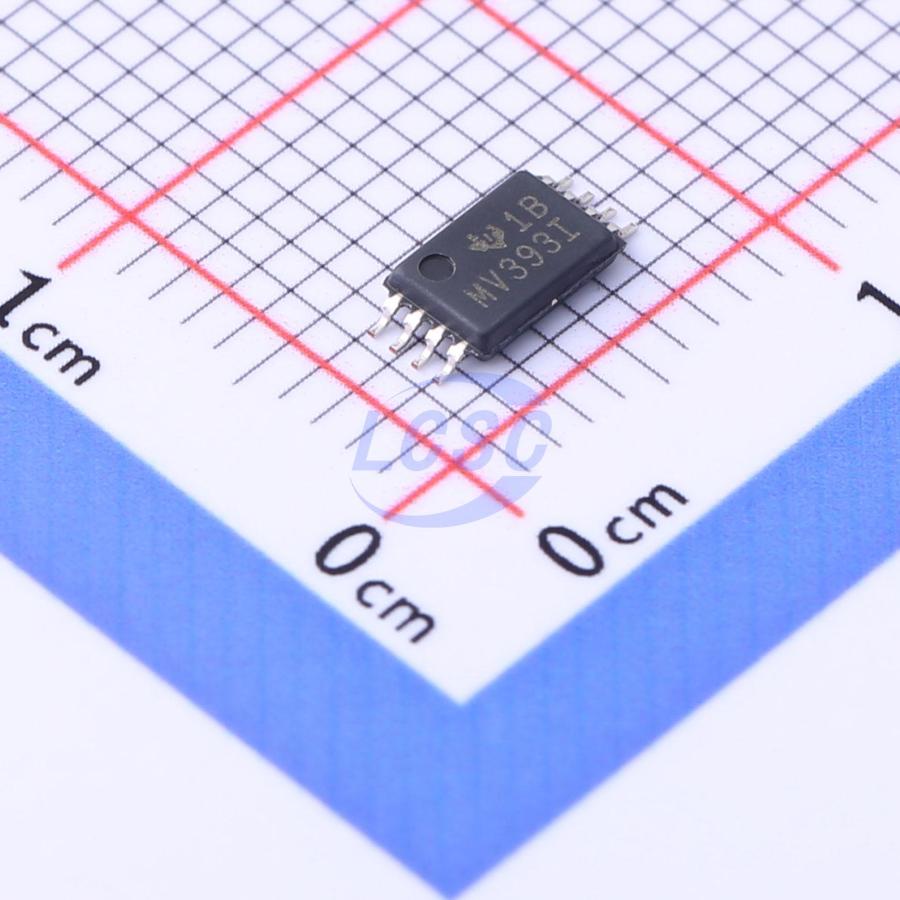

LMV393IPWR
2 100uA 1.7mV TSSOP-8 Comparators RoHS
LMV331 single-channel, LMV393 dual-channel, and LMV339 quad-channel general-purpose low-voltage comparators
- Manufacturer
- TI
- Manufacturer part #
- LMV393IPWR
- Store part #
- C2870800
- Package / case
- TSSOP-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,021 in stock
#C2870800
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.96 | ₹52.96 |
| 10+ | ₹46.66 | ₹466.60 |
| 30+ | ₹43.63 | ₹1,308.90 |
| 100+ | ₹40.59 | ₹4,059.00 |
| 500+ | ₹38.86 | ₹19,430.00 |
| 1,000+ | ₹37.77 | ₹37,770.00 |
1 × ₹52.96
₹52.96
excl. GST
₹62.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LMV393IPWR
₹52.96 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 250nA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 600ns
- Quiescent Current(Iq)
- 100uA
- Vos - Input Offset Voltage
- 1.7mV
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
The LMV393 and LMV339 devices are the low-voltage (2.7V to 5.5V) versions of dual and quad comparators respectively, and their operating voltage range is from 5V to 30V. The LMV331 is a single comparator. The LMV331, LMV339, and LMV393 are cost-effective solutions suitable for applications that require low-voltage operation, low power consumption, and space savings in the circuit design of portable consumer electronics. Without consuming the full supply current, these devices can meet or exceed the specifications of common LM339 and LM393 devices.
Applications
- Hysteresis comparator
- Oscillator
- Window comparator
- Industrial equipment test and measurement
Key features
- Low supply current at 2.7V and 5V: LMV331 130μA (typical), LMV393 210μA (typical), LMV339 410μA (typical)
- Input common-mode voltage range includes ground
- Low output saturation voltage: 200mV (typical)
- Open-collector output for greater flexibility
