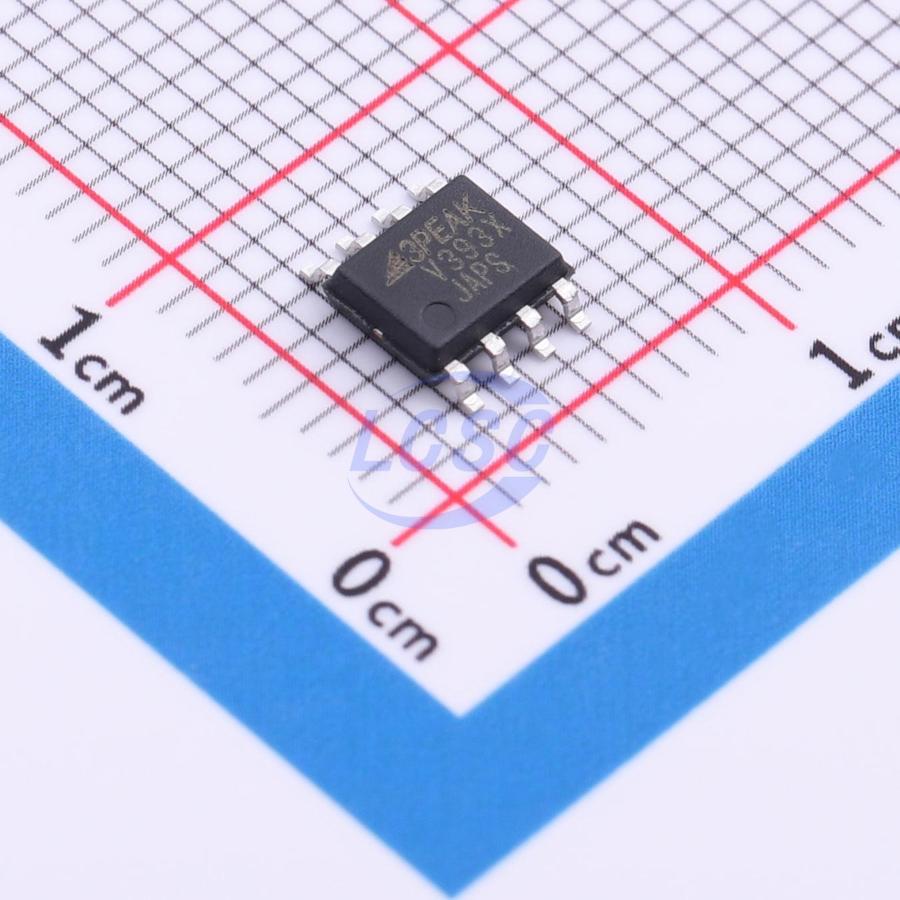

LMV393X-SO1R

This series of devices integrates one or two comparators on a single monolithic substrate. The common-mode input voltage range includes ground and the supply rail, even when operating from a single supply. Low quiescent supply current makes these devices well-suited for battery-powered applications. They are designed to interface directly with TTL and CMOS, and their outputs can be connected to other open-collector or open-drain outputs to implement a wired-AND function. The devices operate over a temperature range of -40°C to +125°C.

Applications

• Peak and zero-crossing detectors
• Threshold detectors/discriminators
• Ground or supply line sensing
• Logic level conversion or translation
• Window comparators
• Infrared receivers

Key features

• Supply voltage: 2.5 V to 5.5 V
• Low supply current: 50 μA per channel
• High-to-low propagation delay: 120 ns
• Internal hysteresis ensures clean switching
• Offset voltage: ±4 mV
• Input bias current: 30 pA (typical)
• Input common-mode range extended by 100 mV
• No ESD diodes between input pins and +VS, or between output pins and +VS
• Open-drain output for maximum flexibility
