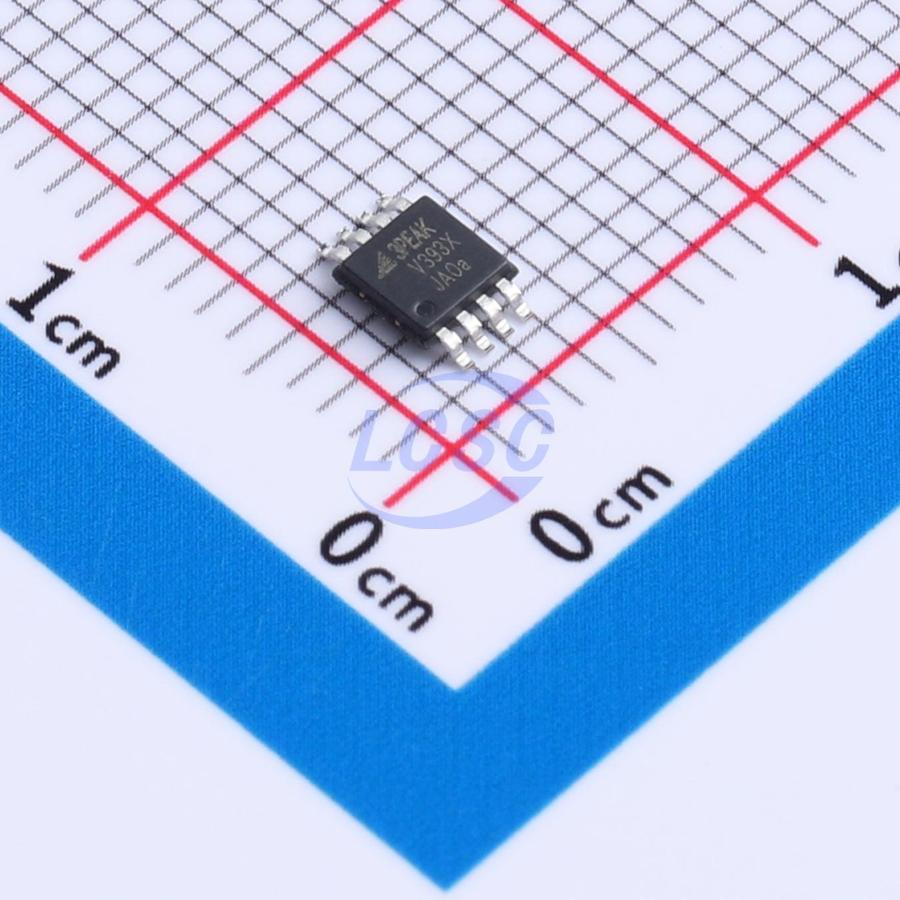

LMV393X-VS1R
2 50uA 500uV MSOP-8 Comparators RoHS
- Manufacturer
- 3PEAK
- Manufacturer part #
- LMV393X-VS1R
- Store part #
- C38994419
- Package / case
- MSOP-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,530 in stock
#C38994419
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.90 | ₹64.50 |
| 50+ | ₹9.98 | ₹499.00 |
| 150+ | ₹8.51 | ₹1,276.50 |
| 500+ | ₹7.42 | ₹3,710.00 |
| 3,000+ | ₹6.54 | ₹19,620.00 |
| 6,000+ | ₹6.10 | ₹36,600.00 |
5 × ₹12.90
₹64.50
excl. GST
₹76.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV393X-VS1R
₹64.50 for 5 + GST
Specifications
- Features
- Built-in hysteresis;Fail-safe function
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Propagation Delay(tpd)
- 120ns
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Number of Channels
- 2
- Input Hysteresis Voltage (Vhys)
- 4.5mV
- Quiescent Current(Iq)
- 50uA
- Input Offset Current(Ios)
- 30pA
- Vos - Input Offset Voltage
- 500uV
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.159 g
Overview
This series of devices integrates one or two comparators on a single monolithic substrate. The common-mode input voltage range includes ground potential and supply voltage, enabling operation even from a single supply. Low quiescent supply current makes these devices suitable for battery-powered applications. They are designed to interface directly with TTL and CMOS, and their outputs can be connected to other open-collector or open-drain outputs to implement wired-AND logic. The devices operate over a temperature range of -40℃ to +125℃.
Applications
- Peak and zero-crossing detectors
- Threshold detectors/discriminators
- Ground or supply line detection
- Logic level translation
- Window comparators
- Infrared receivers
Key features
- Supply voltage: 2.5 V ~ 5.5 V
- Low supply current per channel: 50 μA
- High-to-low propagation delay: 120 ns
- Internal hysteresis ensures clean switching transitions
- Offset voltage: ±4 mV
- Input bias current: 30 pA (typical)
- Input common-mode range extends to 100 mV below ground
- No ESD diodes from input pins to +V_S or output pins to +V_S
- Open-drain output for maximum flexibility
- LMV331X-S5TR-S, LMV393X-SO1R-S, and LMV393X-VS1R-S are AEC-Q100 qualified for automotive applications
