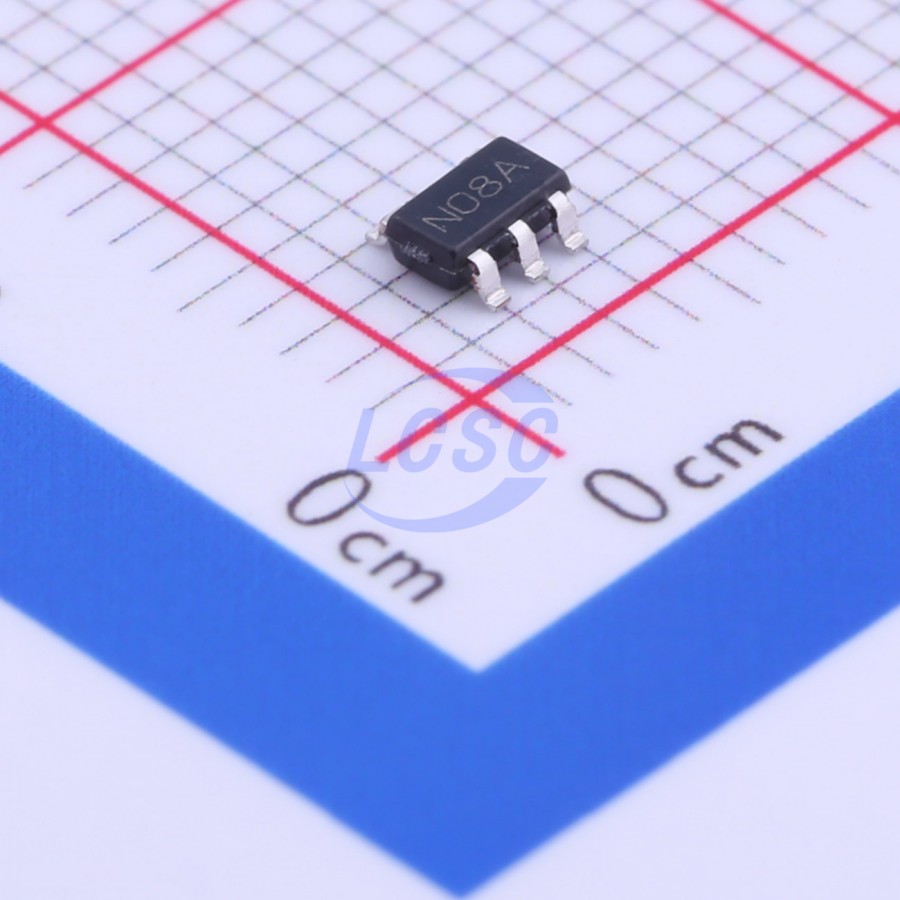

LMV431AIM5X/NOPB

The LMV431, LMV431A and LMV431B are precision 1.24 V shunt regulators capable of adjustment to 30 V. Negative feedback from the cathode to the adjust pin controls the cathode voltage, much like a noninverting op amp configuration (Refer to Symbol and Functional Diagrams). A two-resistor voltage divider terminated at the adjust pin controls the gain of a 1.24 V band-gap reference. Shorting the cathode to the adjust pin (voltage follower) provides a cathode voltage of a 1.24 V. The LMV431, LMV431A and LMV431B have respective initial tolerances of 1.5%, 1%, and 0.5%, and functionally lend themselves to several applications that require zener diode type performance at low voltages. Applications include a 3 V to 2.7 V low drop-out regulator, an error amplifier in a 3 V off-line switching regulator and even as a voltage detector. These parts are typically stable with capacitive loads greater than 10 nF and less than 50 pF. The LMV431, LMV431A and LMV431B provide performance at a competitive price.

Applications

• Shunt Regulator
• Series Regulator
• Current Source or Sink
• Voltage Monitor
• Error Amplifier
• 3-V Off-Line Switching Regulator
• Low Dropout N-Channel Series Regulator

Key features

• Low-Voltage Operation/Wide Adjust Range (1.24 V/30 V)
• 0.5% Initial Tolerance (LMV431B)
• Temperature Compensated for Industrial Temperature Range (39 PPM/°C for the LMV431AI)
• Low Operation Current (55 μA)
• Low Output Impedance (0.25 Ω)
• Fast Turn-On Response
• Low Cost
