TECH PUBLICDatasheet (PDF)

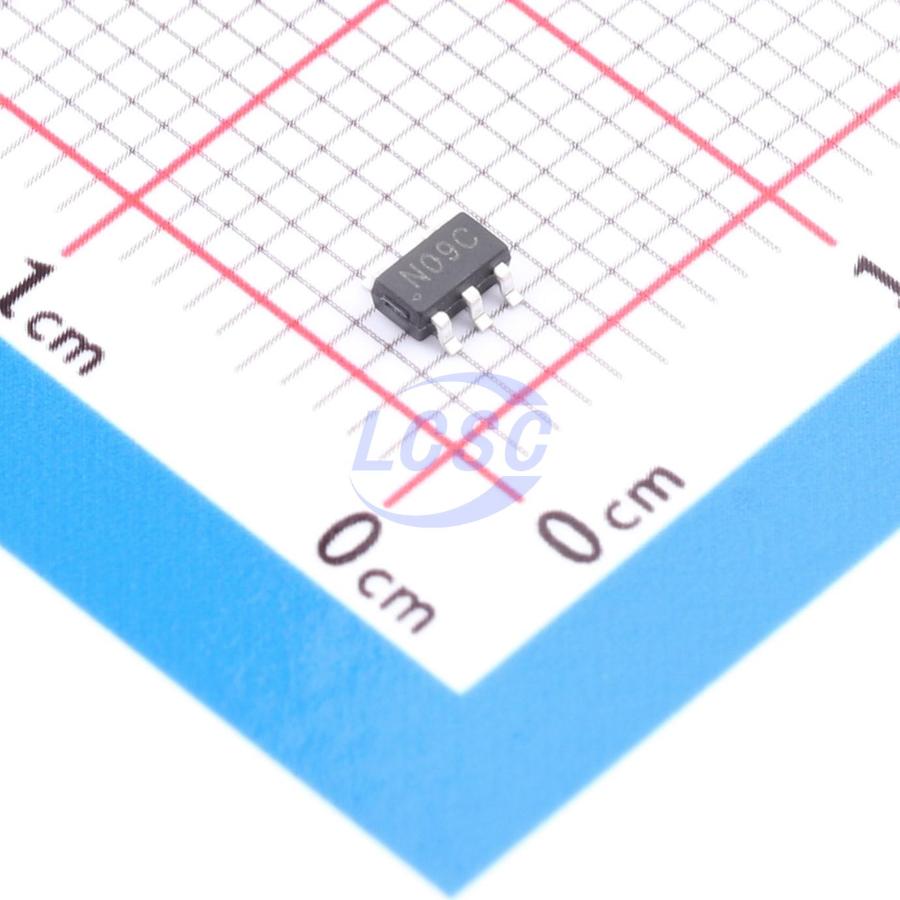

LMV431BCM5X-TP
Shunt Voltage Reference IC Adjustable 1.24V~18V ±0.5% 100mA SOT-23-5
SOT-23-5RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LMV431BCM5X-TP
- Store part #
- C48995537
- Package / case
- SOT-23-5
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,615 in stock
#C48995537
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.40 | ₹97.00 |
| 50+ | ₹16.88 | ₹844.00 |
| 150+ | ₹15.81 | ₹2,371.50 |
| 500+ | ₹14.47 | ₹7,235.00 |
| 3,000+ | ₹13.87 | ₹41,610.00 |
| 6,000+ | ₹13.51 | ₹81,060.00 |
5 × ₹19.40
₹97.00
excl. GST
₹114.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV431BCM5X-TP
₹97.00 for 5 + GST
Specifications
- Output Voltage
- 1.24V~18V
- Quiescent Current
- 700nA
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 55mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
This device is a three-terminal adjustable shunt voltage regulator that can set the output voltage to any value between V_ref (approximately 1.24V) and 18V using two external resistors. The typical output impedance is 0.05Ω. The active output circuit provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications. These applications include on-board voltage regulation, adjustable power supplies, and power switching.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Secondary-side voltage regulation in flyback switching power supplies
Key features
- Adjustable output voltage range: 1.24V~18V
- Low dynamic output resistance: 0.05Ω (typical)
- Low temperature drift: 2mV (typical)
- Low output noise
- High stability with capacitive loads
- Current capacity range: 0.1~100 mA
- Accuracy: 0.5%
- Package: SOT23-5
