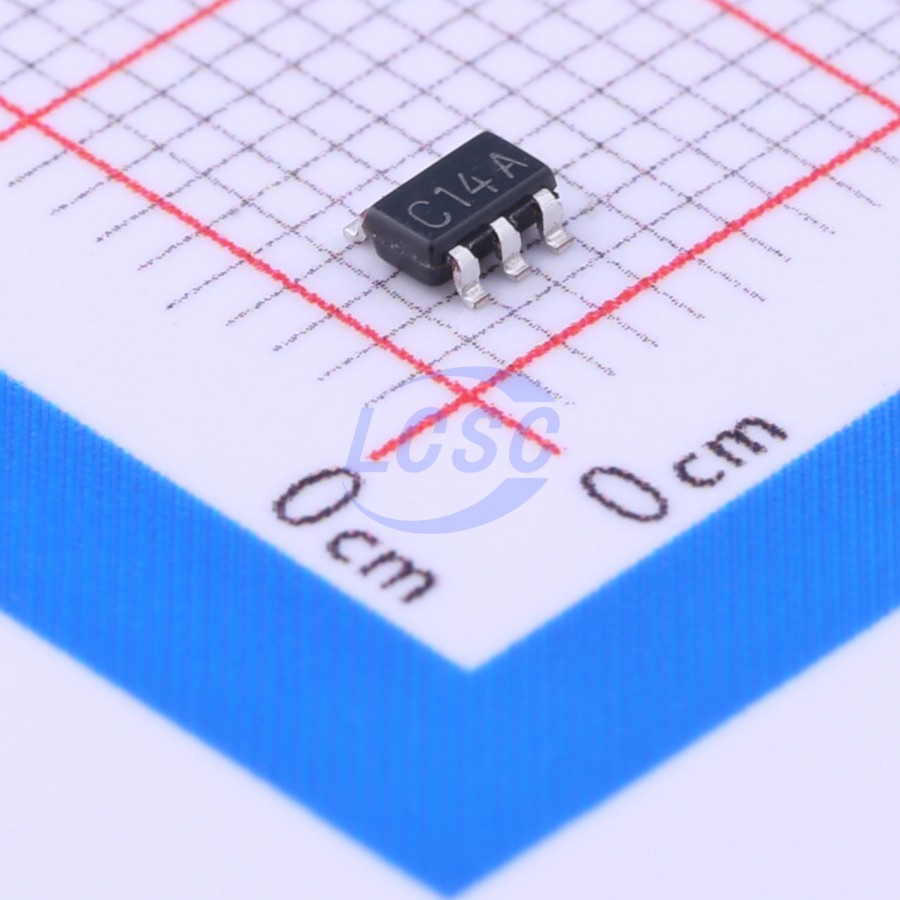

LMV7219M5X/NOPB

1 1.1mA 1mV Rail-to-rail output SOT-23-5 Comparators RoHS

SOT-23-5ROHS3 CompliantActive

7-ns 2.7-V to 5-V Comparator with Rail-to-Rail Output

Manufacturer: TI
Manufacturer part #: LMV7219M5X/NOPB
Store part #: C283912
Package / case: SOT-23-5
Category: Comparators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13,612 in stock

#C283912

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹100.71	₹100.71
10+	₹80.04	₹800.40
30+	₹69.83	₹2,094.90
100+	₹59.60	₹5,960.00
500+	₹51.33	₹25,665.00
1,000+	₹48.29	₹48,290.00

Quantity (min 1)

1 × ₹100.71

₹100.71

excl. GST

₹118.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV7219M5X/NOPB

₹100.71 for 1 + GST

Specifications

Number of Channels: 1
Input Offset Current(Ios): 200nA
Output Mode: TTL;CMOS
Operating Temperature: -40℃~+85℃
Features: Built-in hysteresis;Threshold detection
Ib - Input Bias Current: 200nA
Output Type: Push-pull
Common Mode Rejection Ratio(CMRR): 85dB
Propagation Delay(tpd): 7ns
Input Hysteresis Voltage (Vhys): 7.5mV
Quiescent Current(Iq): 1.1mA
Vos - Input Offset Voltage: 1mV
Rail to Rail: Rail-to-rail output
Response Time (tr): 1.3ns
Single Supply: 2.7V~5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The LMV7219 is a low-power, high-speed comparator with internal hysteresis. The LMV7219 operating voltage ranges from 2.7 V to 5 V with push-pull railto-rail output. This device achieves a 7-ns propagation delay while consuming only 1.1 mA of supply current at 5 V. The LMV7219 inputs have a common mode voltage range that extends 200 mV below ground, allowing ground sensing. The internal hysteresis ensures clean output transitions even with slow-moving inputs signals. The LMV7219 is available in the SC-70 and SOT-23 packages, which are ideal for systems where small size and low power are critical.
