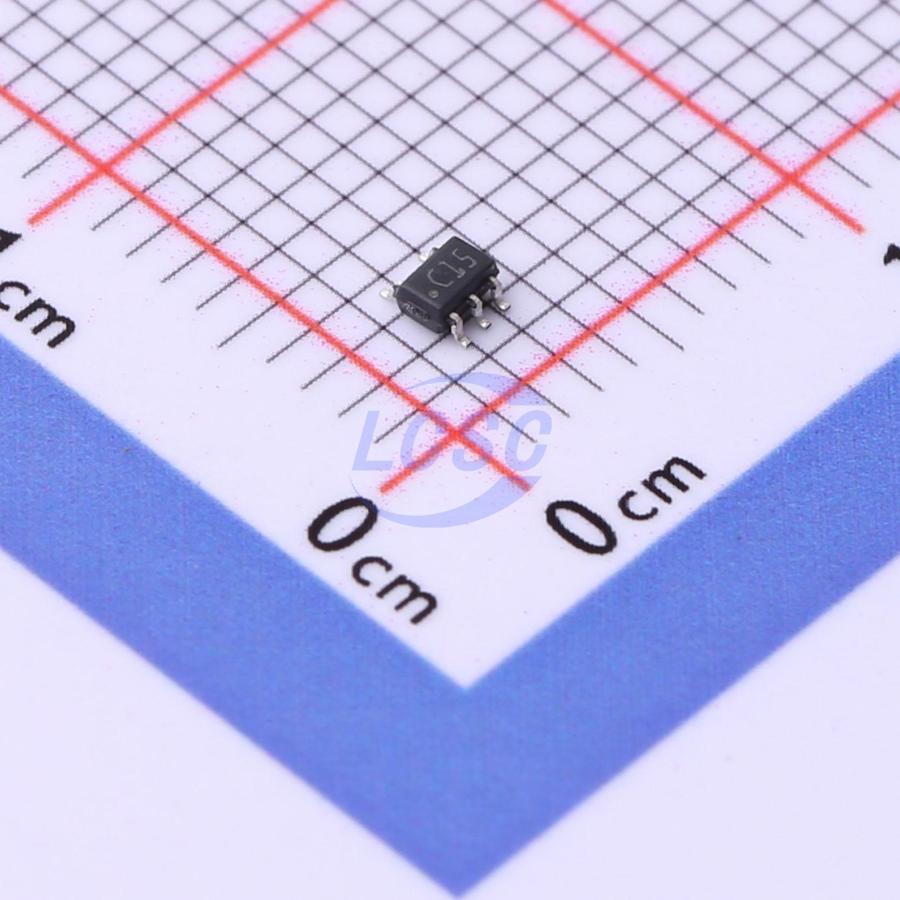

LMV7219M7X/NOPB
1 1.1mA 6mV Rail-to-rail output SC-70-5 Comparators RoHS
7-ns 2.7-V to 5-V Comparator with Rail-to-Rail Output
- Manufacturer
- TI
- Manufacturer part #
- LMV7219M7X/NOPB
- Store part #
- C544337
- Package / case
- SC-70-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
760 in stock
#C544337
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.22 | ₹124.22 |
| 10+ | ₹100.72 | ₹1,007.20 |
| 30+ | ₹88.97 | ₹2,669.10 |
| 100+ | ₹71.35 | ₹7,135.00 |
| 500+ | ₹64.39 | ₹32,195.00 |
| 1,000+ | ₹60.91 | ₹60,910.00 |
1 × ₹124.22
₹124.22
excl. GST
₹146.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV7219M7X/NOPB
₹124.22 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in hysteresis;Threshold detection
- Ib - Input Bias Current
- 450nA
- Output Type
- Push-pull
- Propagation Delay(tpd)
- 7ns
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Input Hysteresis Voltage (Vhys)
- 7mV
- Quiescent Current(Iq)
- 1.1mA
- Vos - Input Offset Voltage
- 6mV
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~5V
- Response Time (tr)
- 2.5ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
The LMV7219 is a low-power, high-speed comparator with internal hysteresis. The LMV7219 operating voltage ranges from 2.7 V to 5 V with push-pull railto-rail output. This device achieves a 7-ns propagation delay while consuming only 1.1 mA of supply current at 5 V. The LMV7219 inputs have a common mode voltage range that extends 200 mV below ground, allowing ground sensing. The internal hysteresis ensures clean output transitions even with slow-moving inputs signals. The LMV7219 is available in the SC-70 and SOT-23 packages, which are ideal for systems where small size and low power are critical.
Applications
- Portable and Battery-powered Systems
- Scanners
- Set Top Boxes
- High Speed Differential Line Receiver
- Window Comparators
- Zero-crossing Detectors
- High-speed Sampling Circuits
Key features
- Propagation Delay 7 ns
- Low Supply Current 1.1 mA
- Input Common Mode Voltage Range Extends 200 mV Below Ground
- Ideal for 2.7-V and 5-V Single Supply Applications
- Internal Hysteresis Ensures Clean Switching
- Fast Rise and Fall Time 1.3 ns
- Available in Space-saving Packages: SC-70 and SOT-23
- Supports 105°C PCB Temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV7219M7/NOPB#C129336TI · TSSOP-5-1.3mm | TI | TSSOP-5-1.3mm | 801 | ₹248.51 · 801 in stock | View |
