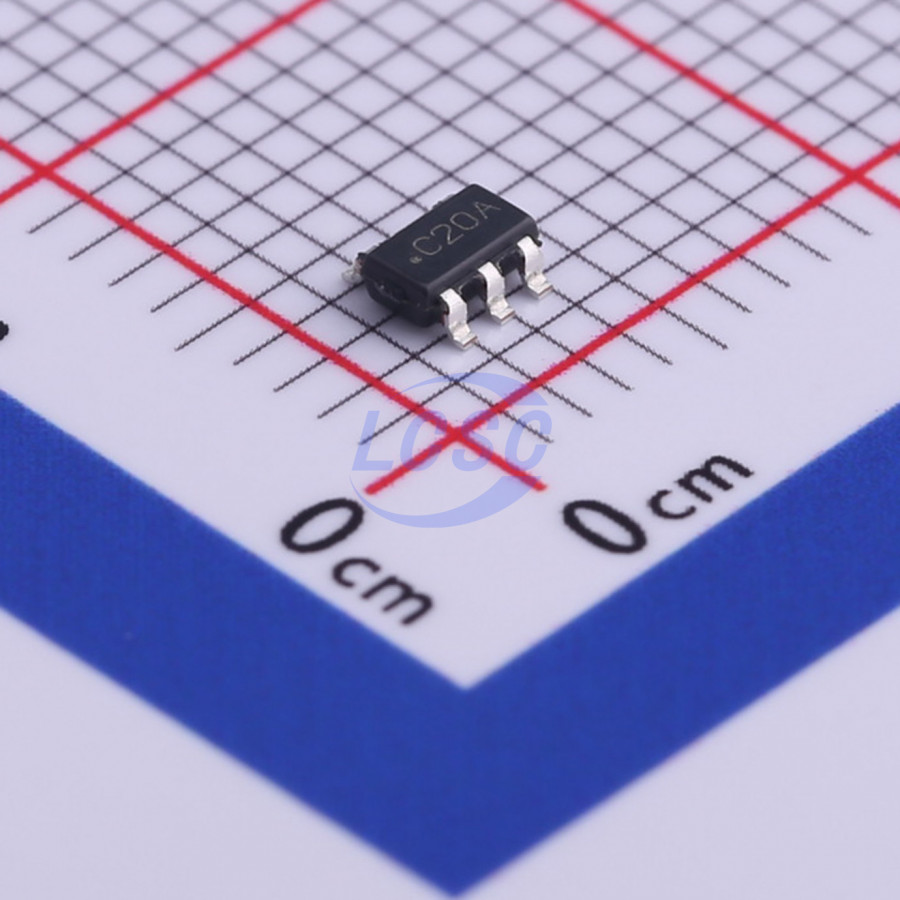

LMV7239M5X/NOPB

1 65uA 6mV Rail-to-rail input SOT-23-5 Comparators RoHS

SOT-23-5ROHS3 CompliantActive

Ultra-low power, low voltage, rail-to-rail input comparators with open-drain and push-pull outputs

Manufacturer: TI
Manufacturer part #: LMV7239M5X/NOPB
Store part #: C467167
Package / case: SOT-23-5
Category: Comparators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,065 in stock

#C467167

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹164.04	₹164.04
10+	₹139.71	₹1,397.10
30+	₹127.54	₹3,826.20
100+	₹115.59	₹11,559.00
500+	₹99.52	₹49,760.00
1,000+	₹95.81	₹95,810.00

Quantity (min 1)

1 × ₹164.04

₹164.04

excl. GST

₹193.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV7239M5X/NOPB

₹164.04 for 1 + GST

Specifications

Number of Channels: 1
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+85℃
Features: Complementary bipolar input stage
Ib - Input Bias Current: 400nA
Output Type: Push-pull
Propagation Delay(tpd): 75ns
Common Mode Rejection Ratio(CMRR): 67dB
Quiescent Current(Iq): 65uA
Vos - Input Offset Voltage: 6mV
Maximum Power Supply Range (Vdd-Vss): 6V
Rail to Rail: Rail-to-rail input
Response Time (tr): 1.2ns
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.022 g

Overview

The LMV7235 and LMV7239 are ultra-low-power, low-voltage comparators with a 75-ns propagation delay. These devices operate over a wide 2.7-V to 5.5-V supply voltage range. They achieve a 75-ns propagation delay while consuming only 65 μA of supply current at 5 V. The LMV7235 and LMV7239 feature an extended rail-to-rail common-mode voltage range. The input common-mode voltage range extends 200 mV below the negative supply rail and 200 mV above the positive supply rail, allowing ground sensing and supply sensing. The LMV7235 has an open-drain output. By connecting an external resistor, the output of this comparator can be used as a level shifter. The LMV7239 has a push-pull output stage. With this feature, the device can operate without an external pull-up resistor. The LMV7235 and LMV7239 are available in 5-pin SC70 and 5-pin SOT-23 packages, making them ideal for systems requiring small size and low power consumption.
