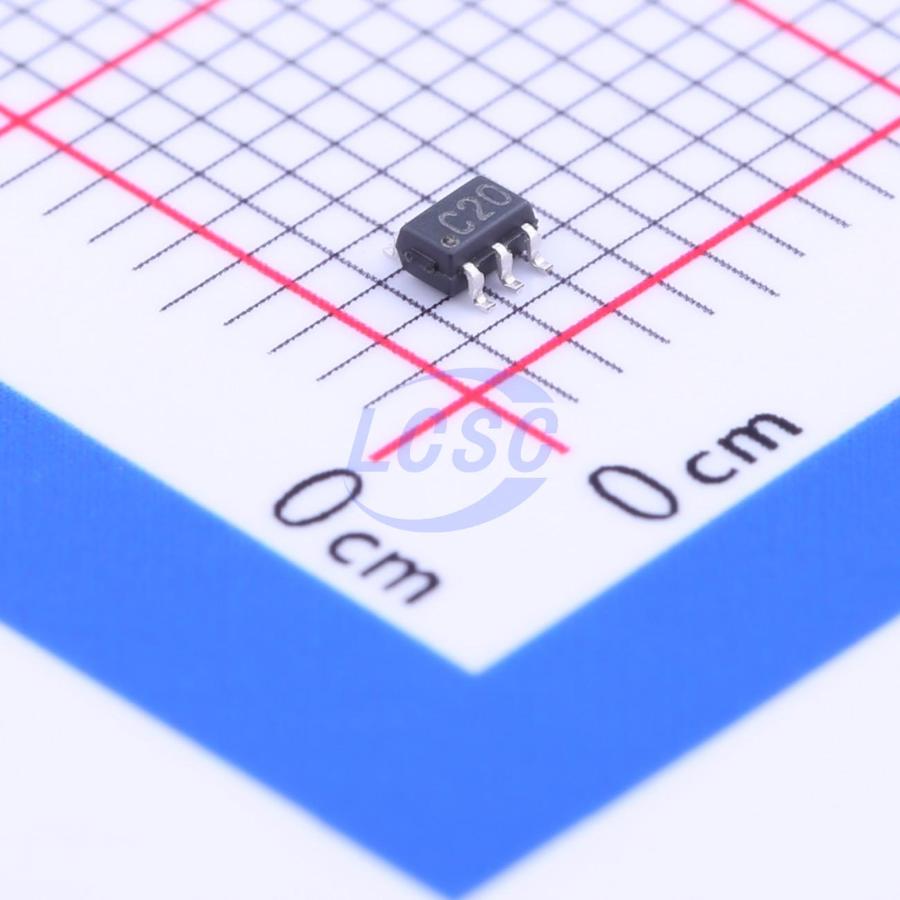

LMV7239M7X/NOPB
1 65uA 1mV Rail-to-rail input SC-70 Comparators RoHS
Ultra Low Power, Low Voltage, Rail-to-Rail Input Comparator With Open-Drain and Push-Pull Output
- Manufacturer
- TI
- Manufacturer part #
- LMV7239M7X/NOPB
- Store part #
- C94766
- Package / case
- SC-70
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,341 in stock
#C94766
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.89 | ₹110.89 |
| 10+ | ₹89.81 | ₹898.10 |
| 30+ | ₹79.16 | ₹2,374.80 |
| 100+ | ₹65.24 | ₹6,524.00 |
| 500+ | ₹58.93 | ₹29,465.00 |
| 1,000+ | ₹55.67 | ₹55,670.00 |
1 × ₹110.89
₹110.89
excl. GST
₹130.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV7239M7X/NOPB
₹110.89 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+85℃
- Features
- Complementary bipolar input stage
- Ib - Input Bias Current
- 400nA
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 67dB
- Propagation Delay(tpd)
- 89ns
- Quiescent Current(Iq)
- 65uA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 6V
- Rail to Rail
- Rail-to-rail input
- Response Time (tr)
- 1.2ns
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
The LMV7235 and LMV7239 are ultra low power, low voltage, 75-ns comparators. They are ensured to operate over the full supply voltage range of 2.7 V to 5.5 V. These devices achieve a 75-ns propagation delay while consuming only 65 μA of supply current at 5 V. The LMV7235 and LMV7239 have a greater than rail-to-rail common-mode voltage range. The input common mode voltage range extends 200 mV below ground and 200 mV above supply, allowing both ground and supply sensing. The LMV7235 features an open drain output. By connecting an external resistor, the output of the comparator can be used as a level shifter. The LMV7239 features a push-pull output stage. This feature allows operation without the need of an external pullup resistor. The LMV7235 and LMV7239 are available in the 5-pin SC70 and 5-pin SOT-23 packages, which are ideal for systems where small size and low power is critical.
Applications
- Portable and Battery-Powered Systems
- Set Top Boxes
- High-Speed Differential Line Receiver
- Window Comparators
- Zero-Crossing Detectors
- High-Speed Sampling Circuits
Key features
- Propagation Delay: 75 ns
- Low supply Current: 65 μA
- Rail-to-Rail Input
- Open Drain and Push-Pull Output
- Ideal for 2.7-V and 5-V, Single-Supply Applications
- Available in Space-Saving Packages: 5-Pin SOT-23 5-Pin SC70
