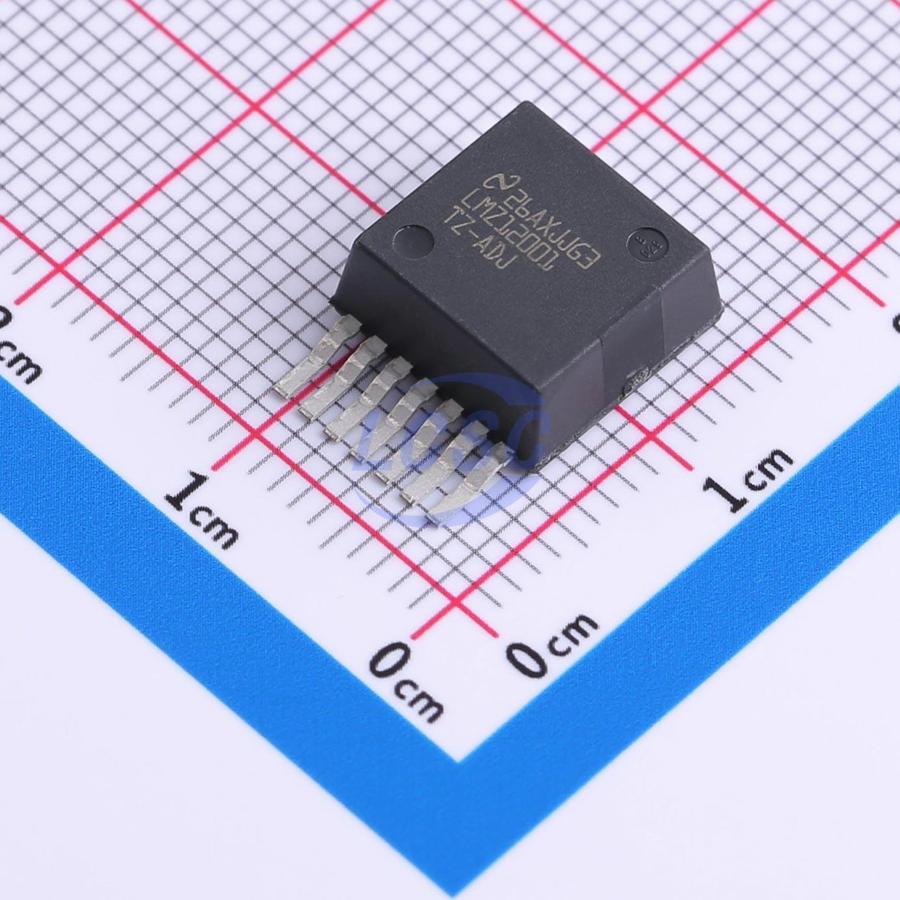

LMZ12001TZX-ADJ/NOPB TI

LMZ12001TZX-ADJ/NOPB

Buck DC DC Converter 1 Output 0.8V~6V 1A 4.5V~20V Input

TO-PMOD-7ROHS3 CompliantActive

1A SIMPLE SWITCHER power module with the highest input voltage

Manufacturer: TI
Manufacturer part #: LMZ12001TZX-ADJ/NOPB
Store part #: C2872181
Package / case: TO-PMOD-7
Category: DC DC Converters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11 in stock

#C2872181

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹1,996.84	₹1,996.84
10+	₹1,810.25	₹18,102.50
30+	₹1,742.48	₹52,274.40
100+	₹1,608.03	₹1,60,803.00

Quantity (min 1)

1 × ₹1,996.84

₹1,996.84

excl. GST

₹2,356.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

LMZ12001TZX-ADJ/NOPB

₹1,996.84 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Step-down type
Output Voltage: 800mV~6V
Ripple Noise: 8mVp-p
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 1mA
Voltage - Supply: 4.5V~20V
Number of Outputs: 1
Iout: 1A
Height: 4.57mm
Features: Programmable soft start;Programmable output voltage;Under Voltage Protection;Short Circuit Protection;Overvoltage protection;Over Current Protection;Over-temperature protection;Light load efficient mode
Conversion Efficiency: 92%
Length: 10.16mm
Width: 13.77mm

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g
