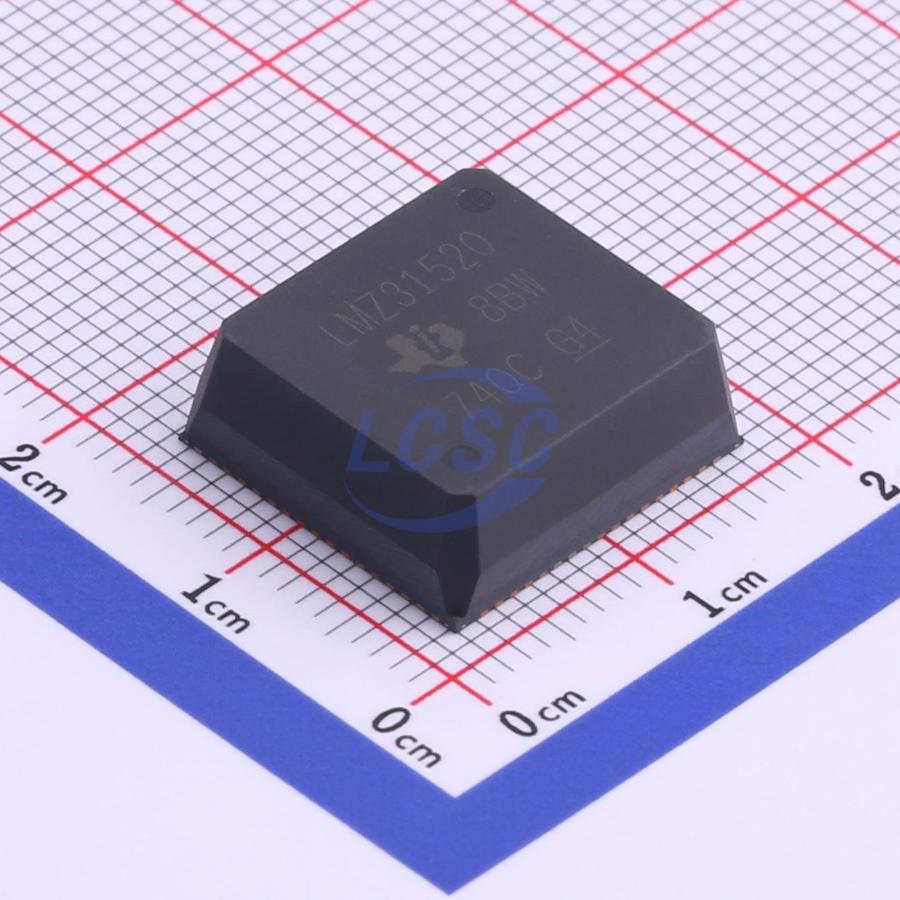

LMZ31520RLGT TI

LMZ31520RLGT

DC DC Converter 0.6V~3.6V 20A 3V~14.5V Input

BQFN-72(15x16)ROHS3 CompliantActive

A 20A power module in QFN package with an input voltage range of 3V to 14.5V

Manufacturer: TI
Manufacturer part #: LMZ31520RLGT
Store part #: C840114
Package / case: BQFN-72(15x16)
Category: DC DC Converters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

34 in stock

#C840114

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹1,976.14	₹1,976.14
10+	₹1,864.24	₹18,642.40
30+	₹1,692.82	₹50,784.60
100+	₹1,543.32	₹1,54,332.00

Quantity (min 1)

1 × ₹1,976.14

₹1,976.14

excl. GST

₹2,331.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

LMZ31520RLGT

₹1,976.14 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Iout: 20A
Output Voltage: 600mV~3.6V
Output Voltage Accuracy: ±1%
Height: 5.8mm
Frequency - Switching: 850kHz
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 700uA
Features: Programmable soft start;Programmable output voltage;Over Current Protection;Power-on timing control;Over-temperature protection;Under Voltage Protection;Remote sampling compensation
Conversion Efficiency: 96%
Voltage - Supply: 3V~14.5V
Length: 15mm
Width: 16mm

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 6.32 g
