NATLINEAR

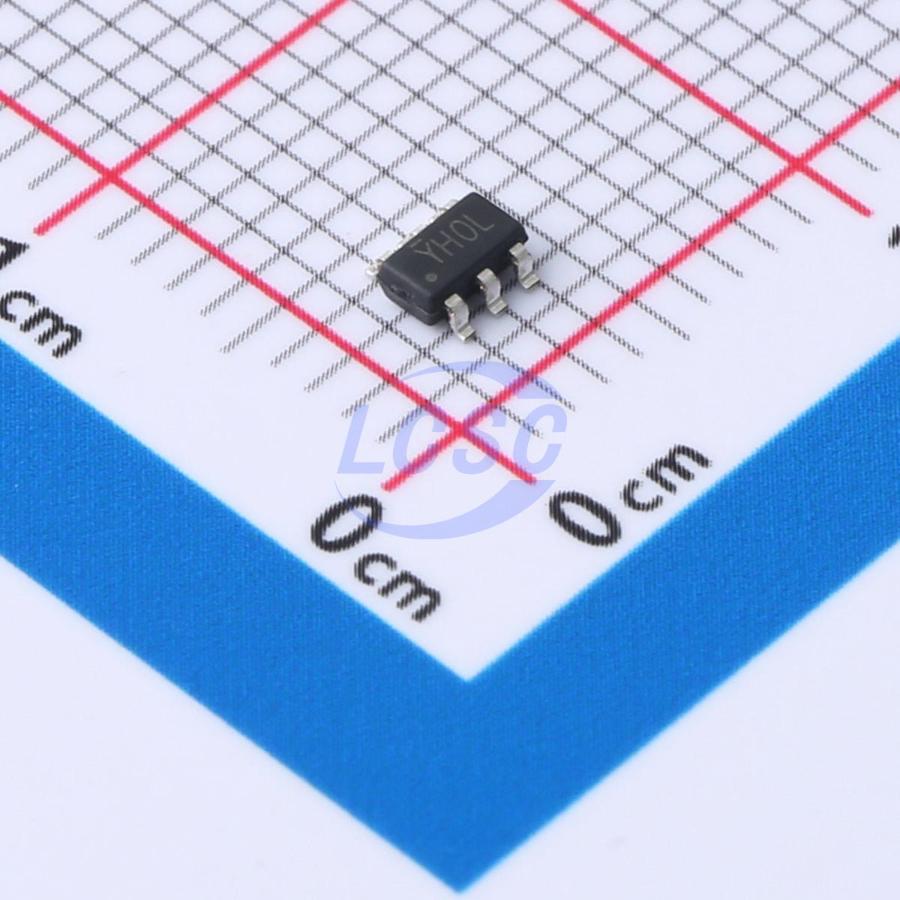

LN2120B020MR-G

1MHz~1.4MHz 1 Boost DC-DC 2.5A 2.5V~6V SOT23-6L LED Drivers ICs

SOT23-6LRoHSActive

PWM-Controlled DC-DC Boost Controller - Backlight LED Driver

Manufacturer: NATLINEAR
Manufacturer part #: LN2120B020MR-G
Store part #: C6705236
Package / case: SOT23-6L
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C6705236

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹13.90	₹69.50
50+	₹10.98	₹549.00
150+	₹9.53	₹1,429.50
500+	₹8.43	₹4,215.00
3,000+	₹7.55	₹22,650.00
6,000+	₹7.12	₹42,720.00

Quantity (min 5, multiples of 5)

5 × ₹13.90

₹69.50

excl. GST

₹82.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LN2120B020MR-G

₹69.50 for 5 + GST

Specifications

Features: Over Voltage Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 1MHz~1.4MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 1
Topology: Boost
Type: DC-DC
Output Current: 2.5A
Voltage - Input(DC): 2.5V~6V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.26 g

Overview

The LN2120 series is a fixed-frequency, constant-current boost DC/DC controller designed primarily for backlight LED driving in HD displays and similar devices. The output voltage can reach up to 24V; at an input voltage of 3.6V, it can drive a total of 51 LEDs configured in 17 parallel strings of 3 series. The IC integrates overvoltage and thermal protection, and LED brightness can be controlled via an external PWM signal. A built-in power switch with an on-resistance of 0.2Ω is integrated within the IC.
