TECH PUBLIC

LN2401-TP

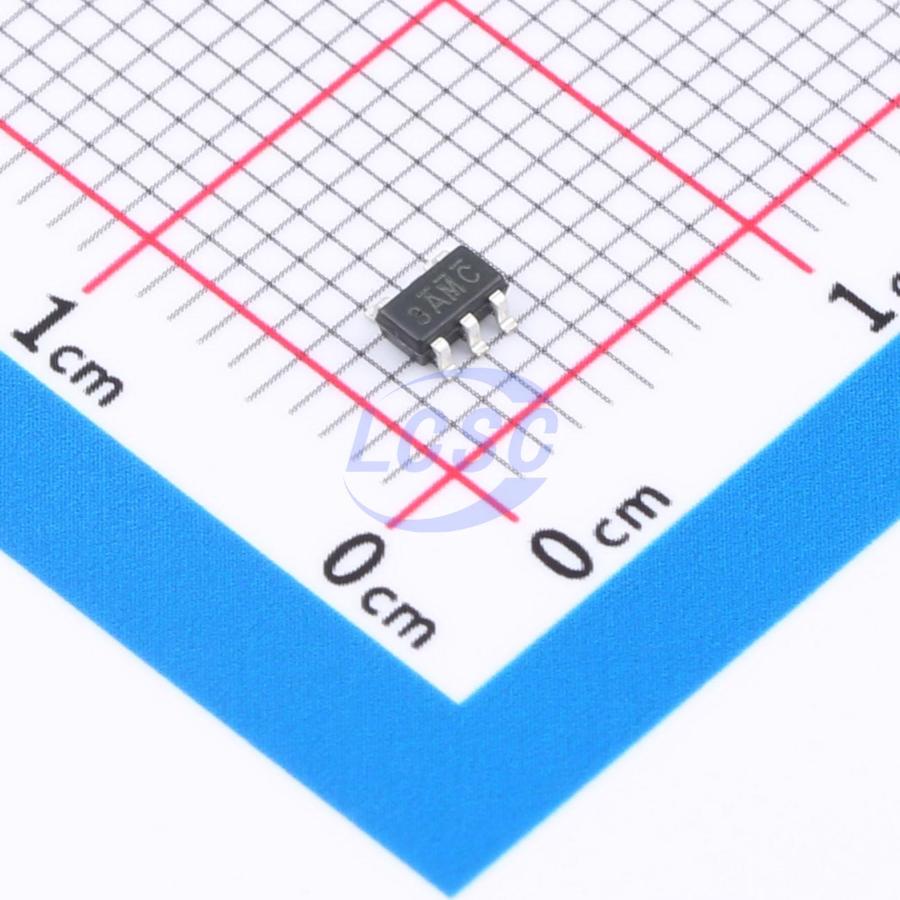

LED Driver IC Buck PWM Dimming 1A SOT-23-5

SOT-23-5RoHSActive

1A Step-Down Constant Current, High Efficiency LED Driver

Manufacturer: TECH PUBLIC
Manufacturer part #: LN2401-TP
Store part #: C48543201
Package / case: SOT-23-5
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,890 in stock

#C48543201

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹20.18	₹100.90
50+	₹16.17	₹808.50
150+	₹14.16	₹2,124.00
500+	₹12.66	₹6,330.00
3,000+	₹11.46	₹34,380.00
6,000+	₹10.86	₹65,160.00

Quantity (min 5, multiples of 5)

5 × ₹20.18

₹100.90

excl. GST

₹119.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LN2401-TP

₹100.90 for 5 + GST

Specifications

Frequency - Switching: 1.5MHz
Features: Over Voltage Protection;Short Circuit Protection;Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Number of Channels: 1
Topology: Buck
Type: DC-DC
Output Current: 1A
Voltage - Input(DC): 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

This device is a constant-frequency current-mode PWM step-down LED driver featuring 1A output current and 1.5MHz switching frequency. It integrates a main switch and a synchronous rectifier, achieving high efficiency without an external Schottky diode. The device offers two operating modes: PWM control and PFM mode switching control, enabling high efficiency across a wider LED current range. The typical feedback voltage is 0.1V. The device also integrates multiple protection features, including input overvoltage protection, cycle-by-cycle current limiting, and overtemperature protection.
