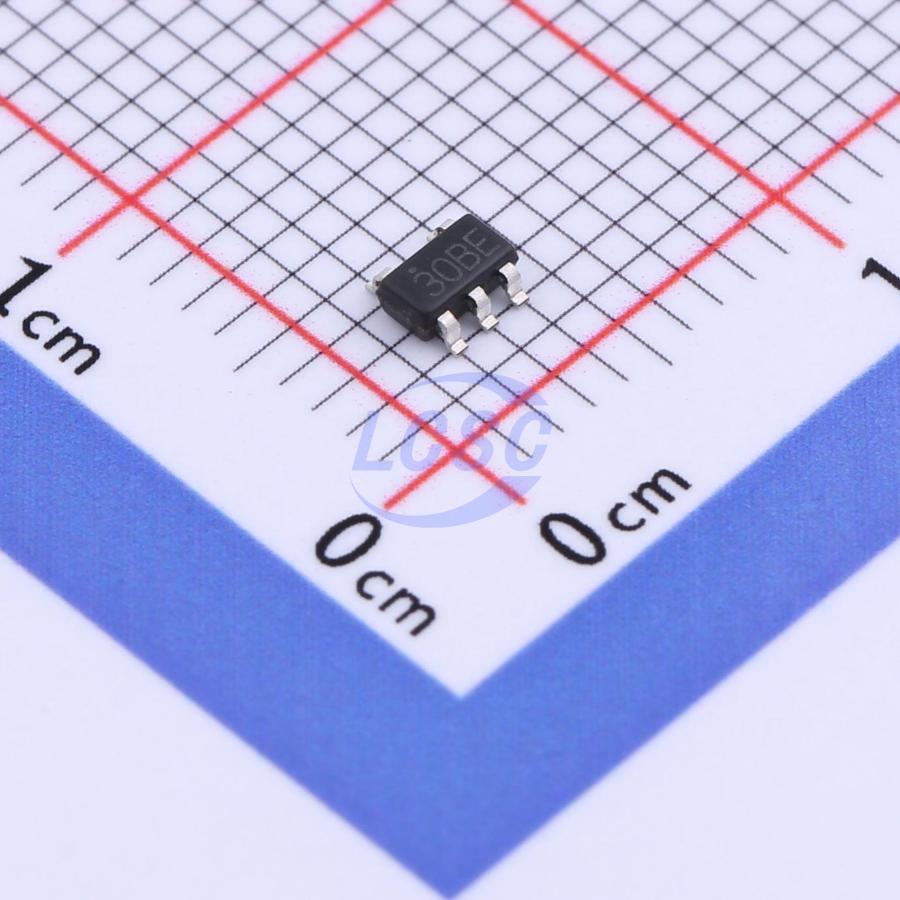

LN240600FMR-G
Buck Switching Regulator IC Adjustable 1 Output 800mA SOT-23-5L
SOT-23-5LROHS CompliantActive
High-Efficiency PWM/PFM Controlled Buck Regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN240600FMR-G
- Store part #
- C3007986
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C3007986
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.96 | ₹99.60 |
| 100+ | ₹7.89 | ₹789.00 |
| 300+ | ₹6.84 | ₹2,052.00 |
| 3,000+ | ₹6.06 | ₹18,180.00 |
| 6,000+ | ₹5.42 | ₹32,520.00 |
| 9,000+ | ₹5.11 | ₹45,990.00 |
10 × ₹9.96
₹99.60
excl. GST
₹117.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN240600FMR-G
₹99.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 1.4MHz
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 2V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 800mA
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
LN2406 is a CMOS step-down DC/DC regulator comprising a reference voltage source, oscillator circuit, comparator, and PWM/PFM control circuit. It employs a PWM/PFM automatic switching control circuit to achieve adjustable duty cycle, featuring low ripple, high efficiency, and high output current across the full input voltage range (2.0–6V). The LN2406 integrates a power MOSFET and incorporates multiple protection circuits including overvoltage, overcurrent, and overtemperature protection, which automatically disconnect the circuit when control thresholds are exceeded to protect the device. Combining a compact package with low quiescent current consumption, this product is ideally suited for use in power supplies of mobile devices.
Applications
- Power supply for mobile devices such as digital cameras, electronic organizers, and PDAs
- Power supply for audio devices such as portable CD players and MDs
- Regulated power supply for cameras, video equipment, and communication devices
- Power supply for microcomputers
Key features
- High efficiency, up to 92% maximum efficiency
- Large output current 800mA
- Very low quiescent current, typical 200μA
- Very low output ripple <±0.4%
- Low voltage operation, up to 100% duty cycle
- PWM/PFM auto-switching, auto-adjustable duty cycle for high efficiency and low ripple across a wide load range
