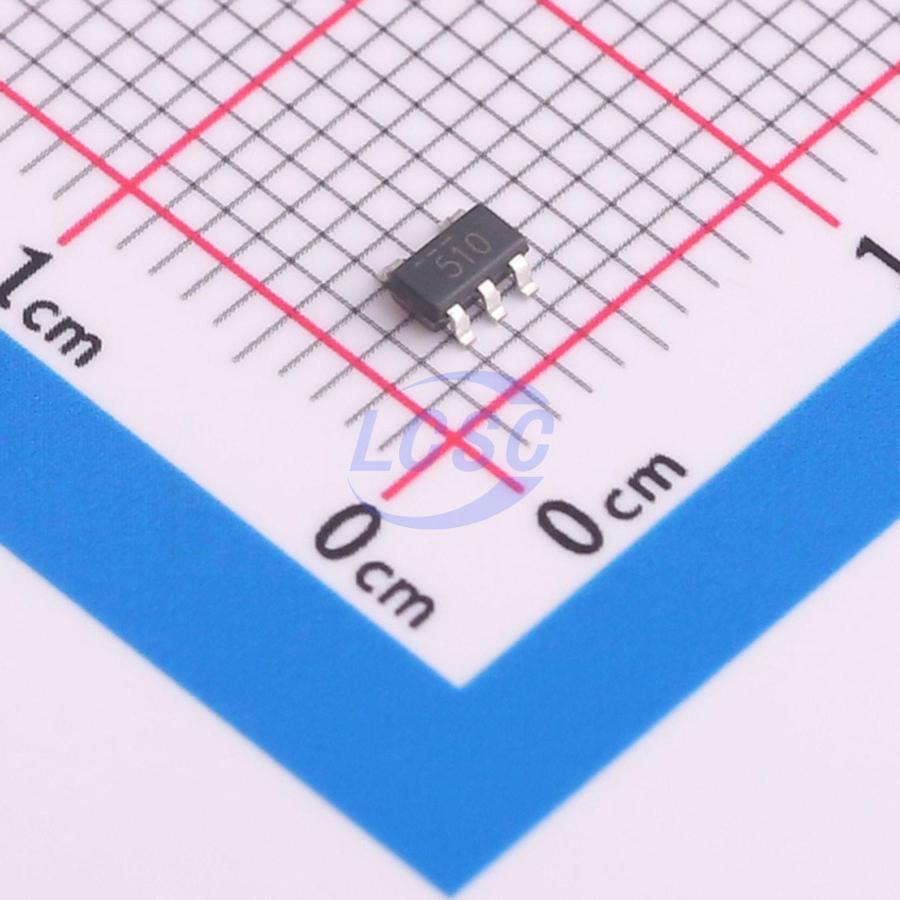

LN3435MR-G
Buck Switching Regulator IC Adjustable 1 Output 1.5A SOT-23-5L
SOT-23-5LROHS CompliantActive
1.5MHz, 1.2A COT Architecture Synchronous Buck Converter
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN3435MR-G
- Store part #
- C2981047
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,940 in stock
#C2981047
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.67 | ₹66.70 |
| 100+ | ₹5.23 | ₹523.00 |
| 300+ | ₹4.51 | ₹1,353.00 |
| 3,000+ | ₹3.97 | ₹11,910.00 |
| 6,000+ | ₹3.55 | ₹21,300.00 |
| 9,000+ | ₹3.32 | ₹29,880.00 |
10 × ₹6.67
₹66.70
excl. GST
₹78.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN3435MR-G
₹66.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Protection latch;Light load efficient mode;Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 2.7V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~6V
- Output Current
- 1.5A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
LN3435 is a current-mode monolithic step-down switching regulator. With an input range of 2.7V to 6.0V, it delivers 1.5A continuous output current and integrates both P-channel and N-channel MOSFETs. The internal synchronous power switches provide high efficiency. Under light load conditions, the regulator operates at reduced frequency to maintain high efficiency and low output ripple. LN3435 ensures stability through hiccup output short-circuit protection, FB short-circuit protection, input undervoltage lockout, hot-plug capability, and thermal protection. LN3435 is available in SOT23-5L and DFN1616-6L packages, offering a compact solution with minimal external components.
Applications
- 5V or 3.3V point-of-load conversion
- Set-top boxes
- Telecom/networking systems
- GPU/DDR power for warehouse equipment
Key features
- Input voltage range 2.7V~6V
- Maximum output current 1.5A
- Operating frequency 1.5MHz
- Peak efficiency 94%
- Internal soft-start
- Input undervoltage lockout
- Hot-swap protection
- Short-circuit protection SCP
- Over-temperature protection OTP
