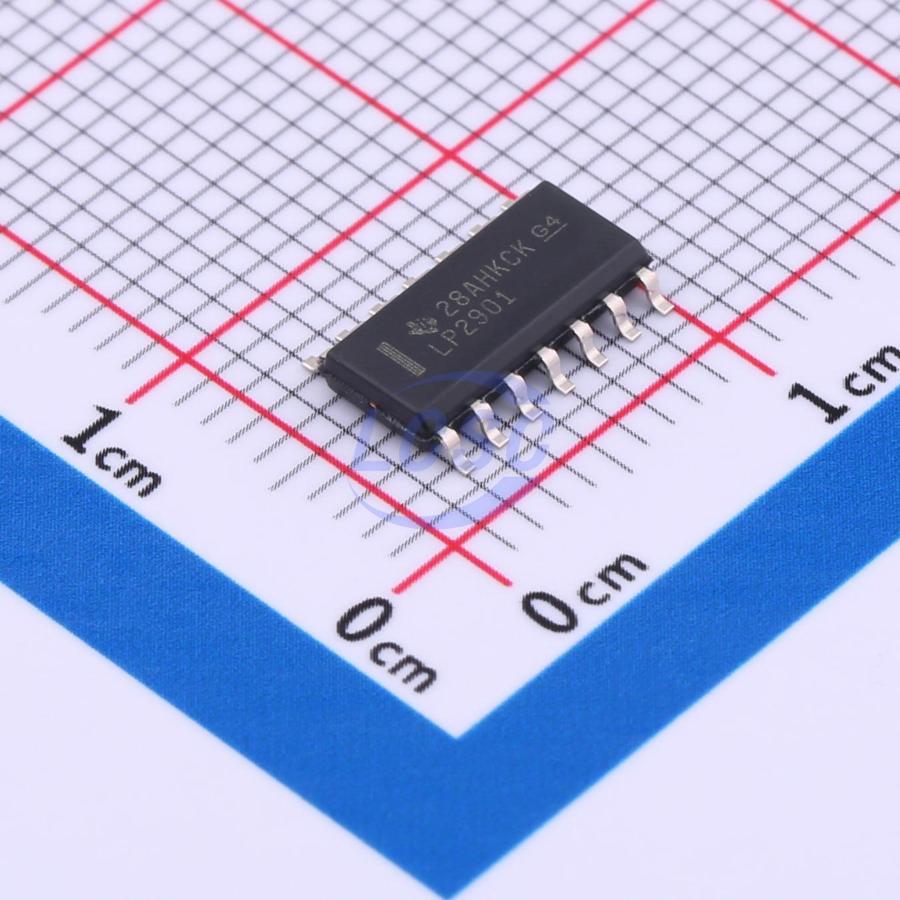

LP2901DR
Four channels 60uA 2mV SOIC-14 Comparators RoHS
Wide Supply-Voltage Range 3 V to 30 V Ultralow Power Supply Current Drain 60 μA Typ Low Input Biasing Current 3 nA
- Manufacturer
- TI
- Manufacturer part #
- LP2901DR
- Store part #
- C2871356
- Package / case
- SOIC-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,644 in stock
#C2871356
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.02 | ₹76.02 |
| 10+ | ₹60.26 | ₹602.60 |
| 30+ | ₹53.57 | ₹1,607.10 |
| 100+ | ₹45.14 | ₹4,514.00 |
| 500+ | ₹41.25 | ₹20,625.00 |
| 1,000+ | ₹39.09 | ₹39,090.00 |
1 × ₹76.02
₹76.02
excl. GST
₹89.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LP2901DR
₹76.02 for 1 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 0.5nA
- Output Mode
- TTL
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 3nA
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 8us
- Quiescent Current(Iq)
- 60uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Response Time (tr)
- 1.3us
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
The LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60 μA drain current over a wide range of voltages. Operation from split power supplies also is possible and the ultra-low power-supply drain current is independent of the power-supply voltage.
Applications
- Limit comparators
- Simple analog-to-digital converters
- Pulse generators
- Squarewave generators
- Time-delay generators
- Voltage-controlled oscillators
- Multivibrators
- High-voltage logic gates
Key features
- Wide Supply-Voltage Range: 3 V to 30 V
- Ultralow Power Supply Current Drain: 60 μA Typ
- Low Input Biasing Current: 3 nA
- Low Input Offset Current: ±0.5 nA
- Low Input Offset Voltage: ±2 mV
- Common-Mode Input Voltage Includes Ground
- Output Voltage Compatible With MOS and CMOS Logic
- High Output Sink-Current Capability 30 mA at V₀ = 2 V
- Power Supply Input Reverse-Voltage Protected
- Single-Power-Supply Operation
- Pin-for-Pin Compatible With LM239, LM339, LM2901
