LOWPOWER

LP3102QVF

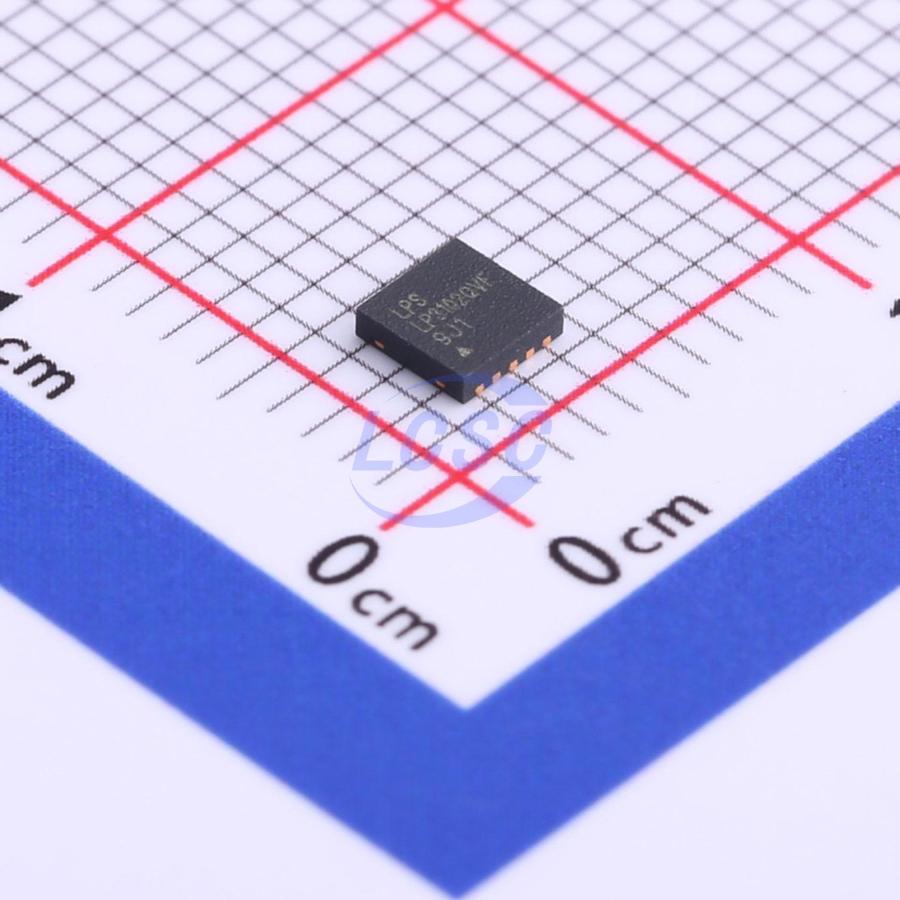

300kHz 120mA TDFN-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators

TDFN-10-EP(3x3)RoHSActive

Dual Channel Charge Pump Power Solution For TFT LCD Panel

Manufacturer: LOWPOWER
Manufacturer part #: LP3102QVF
Store part #: C517005
Package / case: TDFN-10-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,783 in stock

#C517005

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹61.49	₹61.49
10+	₹48.88	₹488.80
30+	₹43.46	₹1,303.80
100+	₹36.73	₹3,673.00
500+	₹32.60	₹16,300.00
1,000+	₹30.85	₹30,850.00

Quantity (min 1)

1 × ₹61.49

₹61.49

excl. GST

₹72.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

LP3102QVF

₹61.49 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 300kHz
Function: Inverted;boost converter
Features: Low ripple / low noise architecture;Charge pump / inverting topology switching;Low-power standby
Operating Voltage: 2.5V~4.8V
Output Current: 120mA
Output Voltage: 5.5V~5.9V;-5.9V~-5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.095 g

Overview

The LP3102 DC/DC converter integrates two low noise, high efficiency charge pumps for dual outputs, which consist of one inverting output and a step-up output. The device operates from 2.5V to 4.8V input, and provides a step-up output voltage (VP) of 2x the input voltage. The negative inverting output (VN) is -1× inverted from the positive output VP. The LP3102 is available in a small TDFN-10 pin package that features a bottom side exposed thermal pad to provide optimal heat dissipation. The small package size and low external parts count make the device ideally suitable for TFT LCD applications of mobile products. The device is rated to operate from -40°C to +85°C ambient temperature range.

Applications

Mobile Device
Smart Phone
Portable Media Players/MP3 players
Cellular and Smart mobile phone LCD Bias Power

Key features

Ultra-Low-Noise for RF Application
2.5V to 4.8V Input Supply Voltage Range
Adaptive 1.5x / 2× mode switchover for positive voltage and -1× mode for negative voltage
VP output range (VOUT ≤ 2x VIN): 5.5V to 5.9V (LP3102QVF)
VN output range (VOUT ≤ 2x VIN): -5.5V to -5.9V (LP3102QVF)
High current output: Vin = 3.3V, lOUT = ±120mA
Built in Power On Sequence
TDFN-10 (3.0mm × 3.0mm) Package
