LOWPOWERDatasheet (PDF)

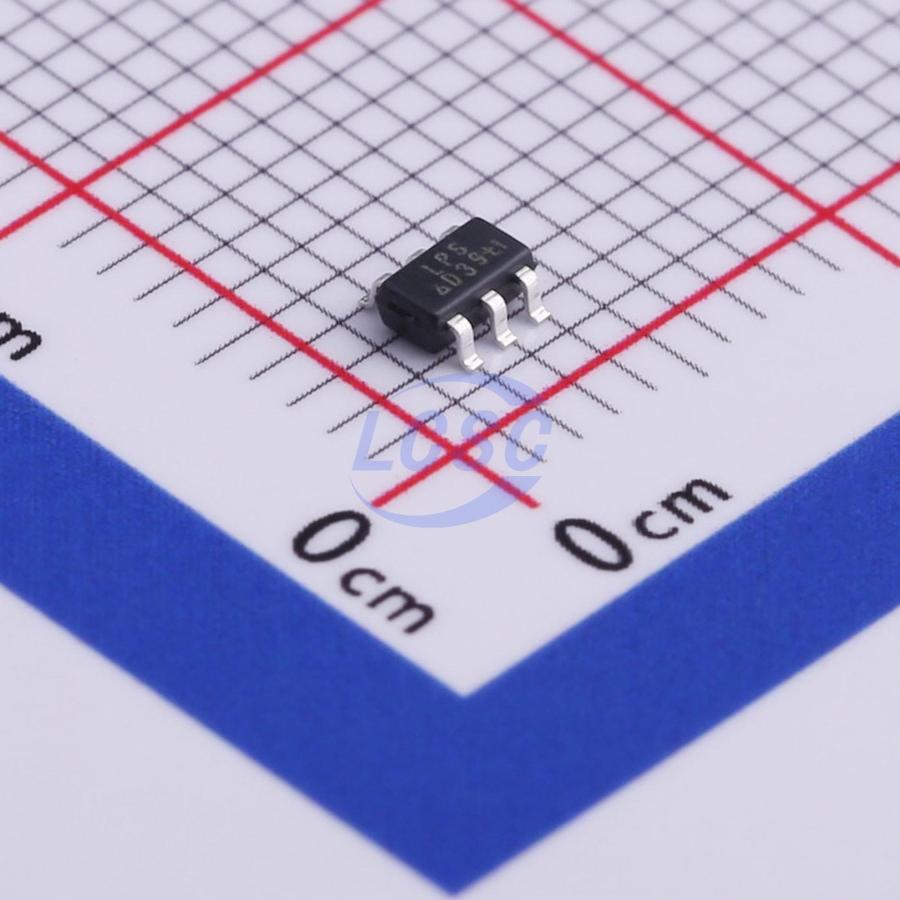

LP3110B6F
340kHz boost converter 5V SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Performance Regulated Charge Pump
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3110B6F
- Store part #
- C517205
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,010 in stock
#C517205
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.68 | ₹86.80 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.94 | ₹1,782.00 |
| 3,000+ | ₹5.25 | ₹15,750.00 |
| 6,000+ | ₹4.71 | ₹28,260.00 |
| 9,000+ | ₹4.43 | ₹39,870.00 |
10 × ₹8.68
₹86.80
excl. GST
₹102.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3110B6F
₹86.80 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Frequency - Switching
- 340kHz
- Function
- boost converter
- Features
- Soft-start;Output short-circuit protection;Overcurrent Protection
- Operating Voltage
- 2.8V~5V
- Output Voltage
- 5V
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
The LP3110 is a high performance charge pump DC/DC converter that produces a regulated 5V output. No external inductor is required for operation. The operating voltage range is 2.8V to VOUT. Internal soft-start circuitry effectively reduces the in-rush current both while start-up and mode change. The LP3110 features very low quiescent current, over current protection and short circuit protection. The LP3110 is available in SOT23-6 package.
Applications
- LCD Panel
- Cellular and Smart mobile phone
- PDA/DSC
- Flash LED Driver
Key features
- 2x Mode for Ultra-High Efficiency
- 2.8V to VOUT Range Input Voltage
- Soft Start Function
- Built-In Short-Circuit Protection
- 340KHz Fixed frequency
- Built-in Thermal Protection
- Over Current Protection Function
- Iso<1uA in Shutdown
- SOT23-6 Package
- RoHS Compliant and 100% Lead (Pb)-Free
